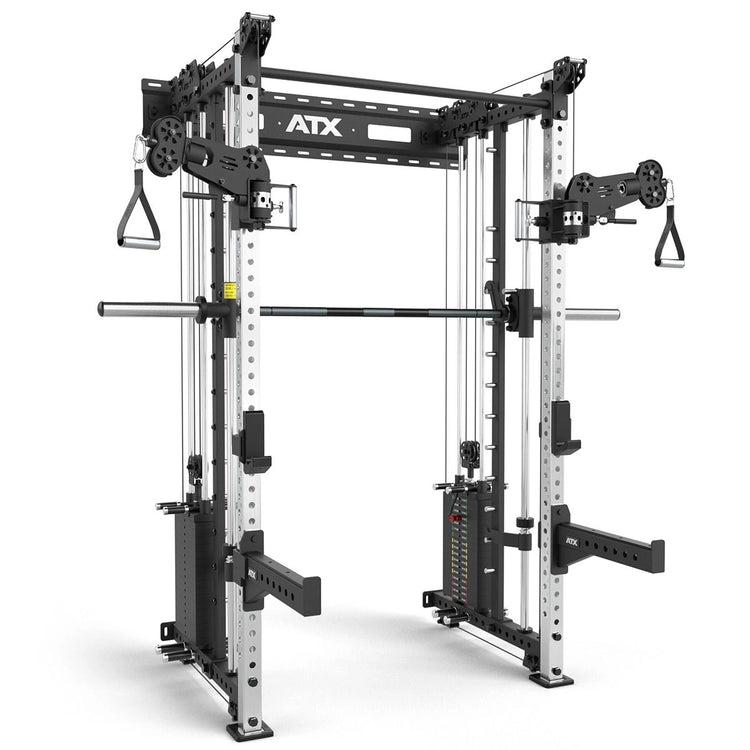

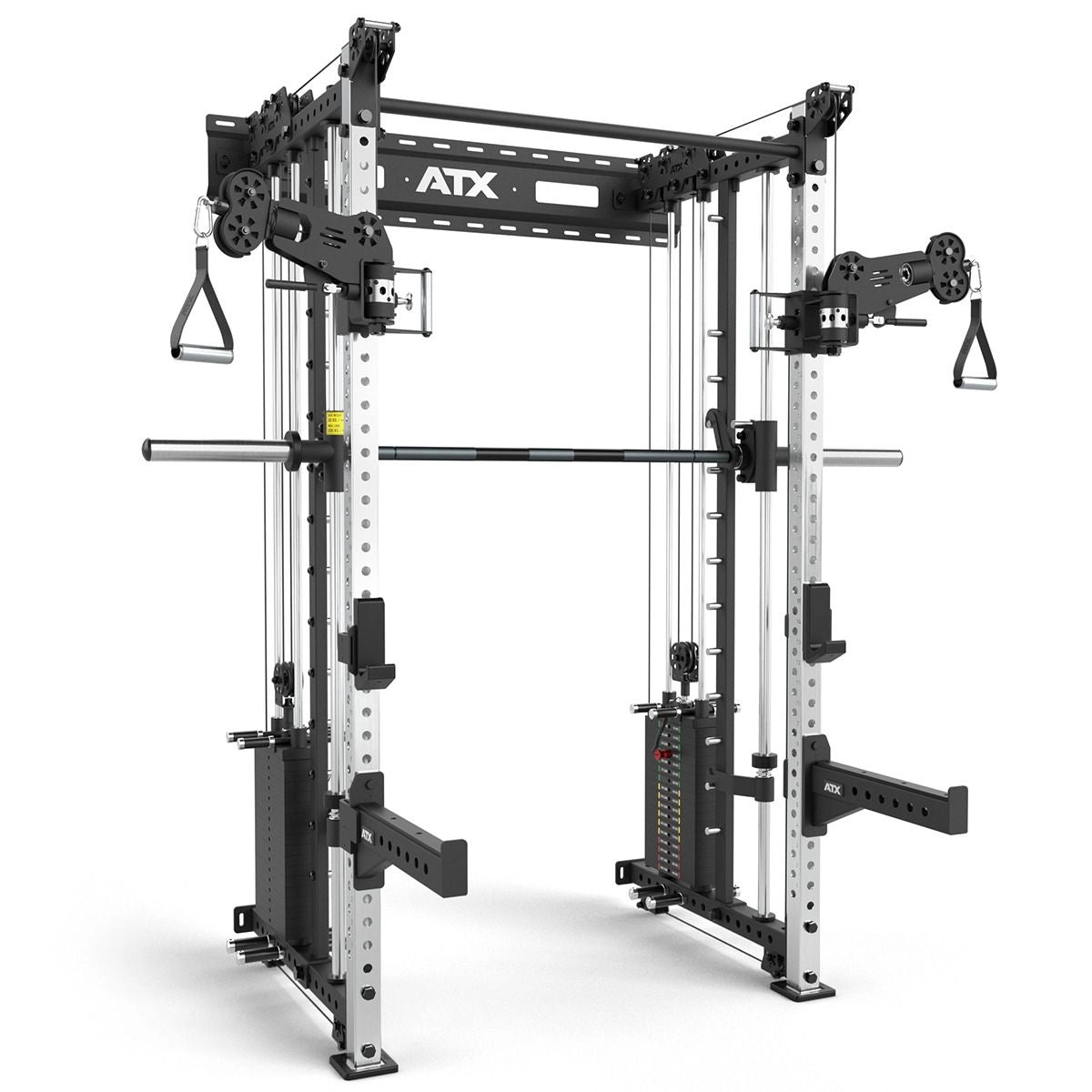

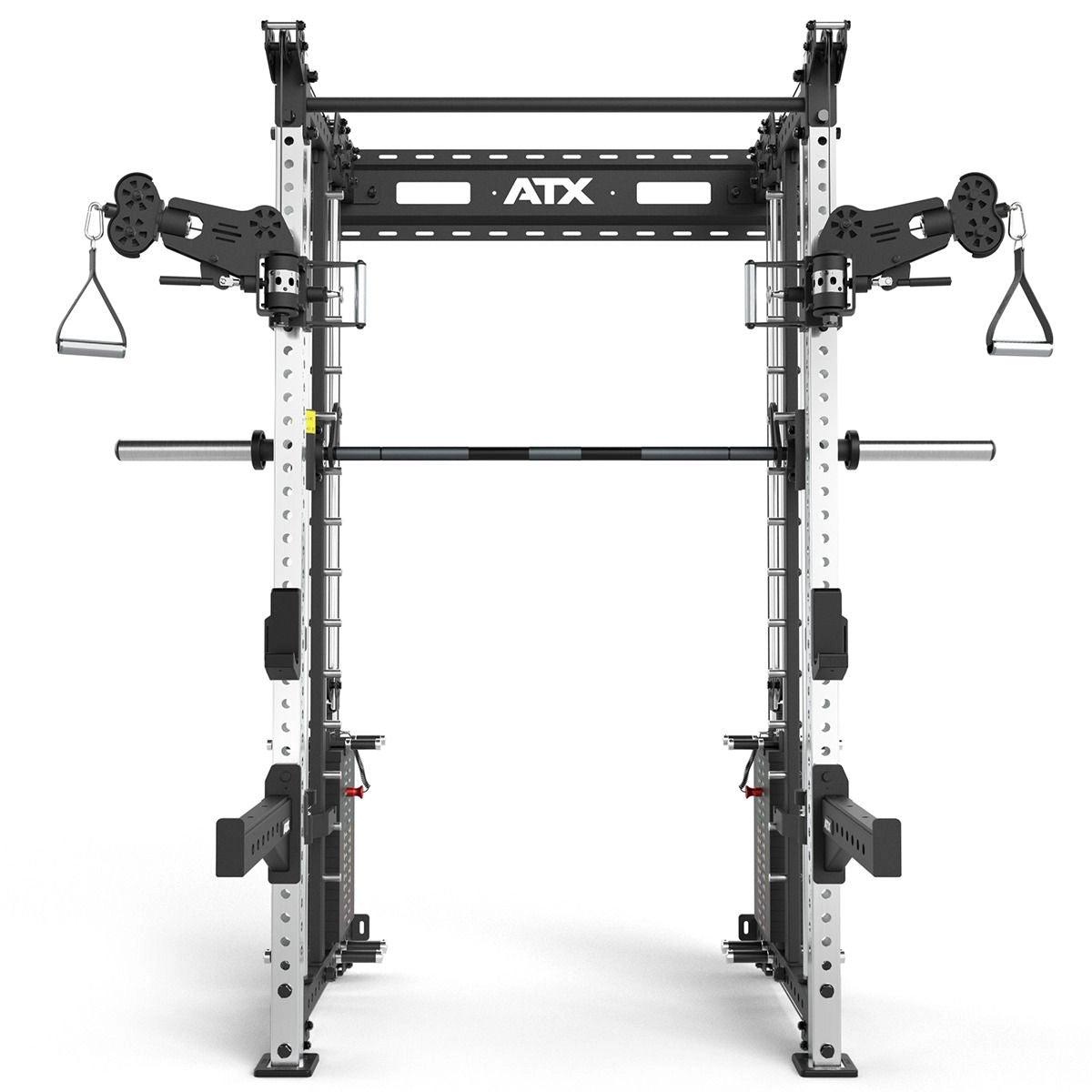

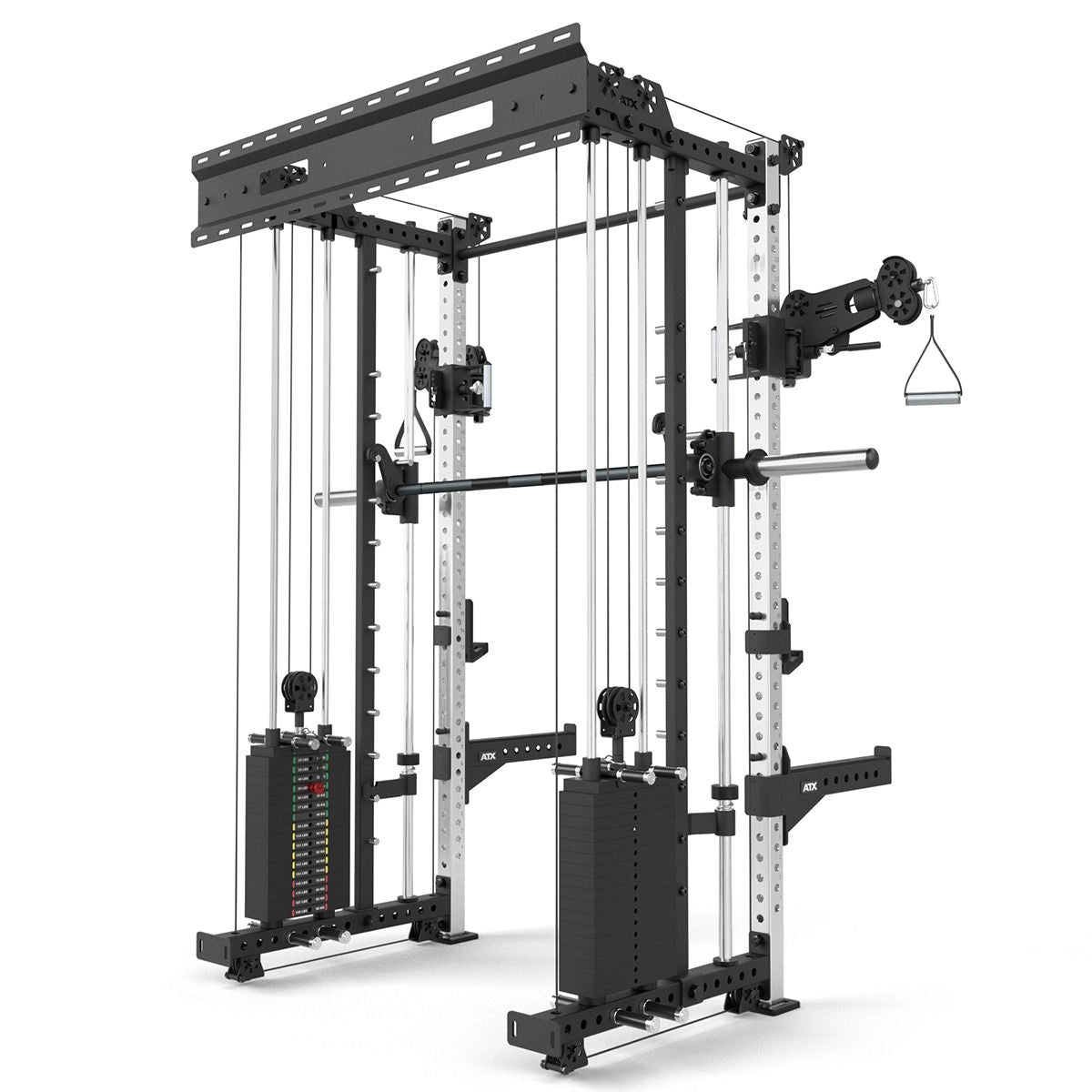

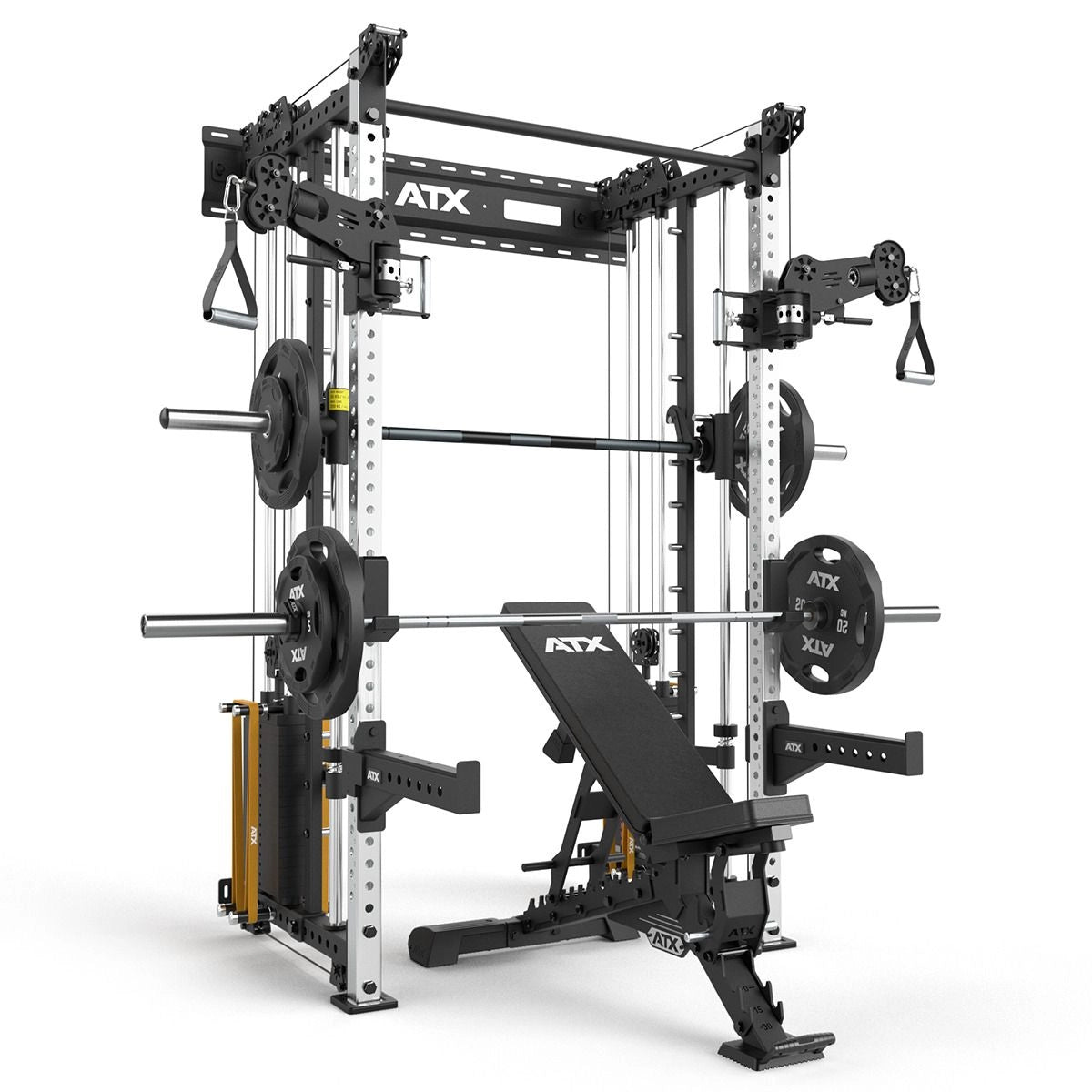

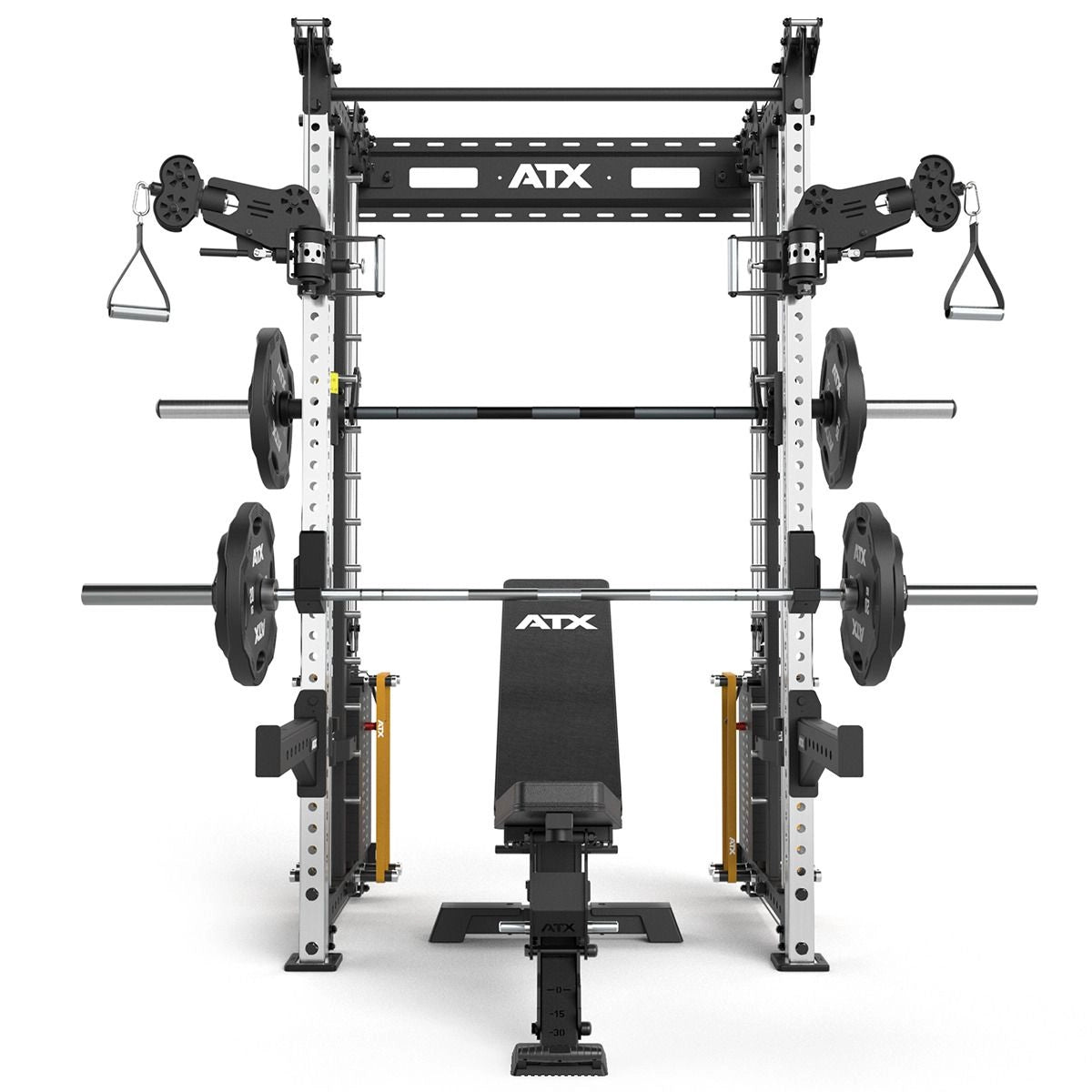

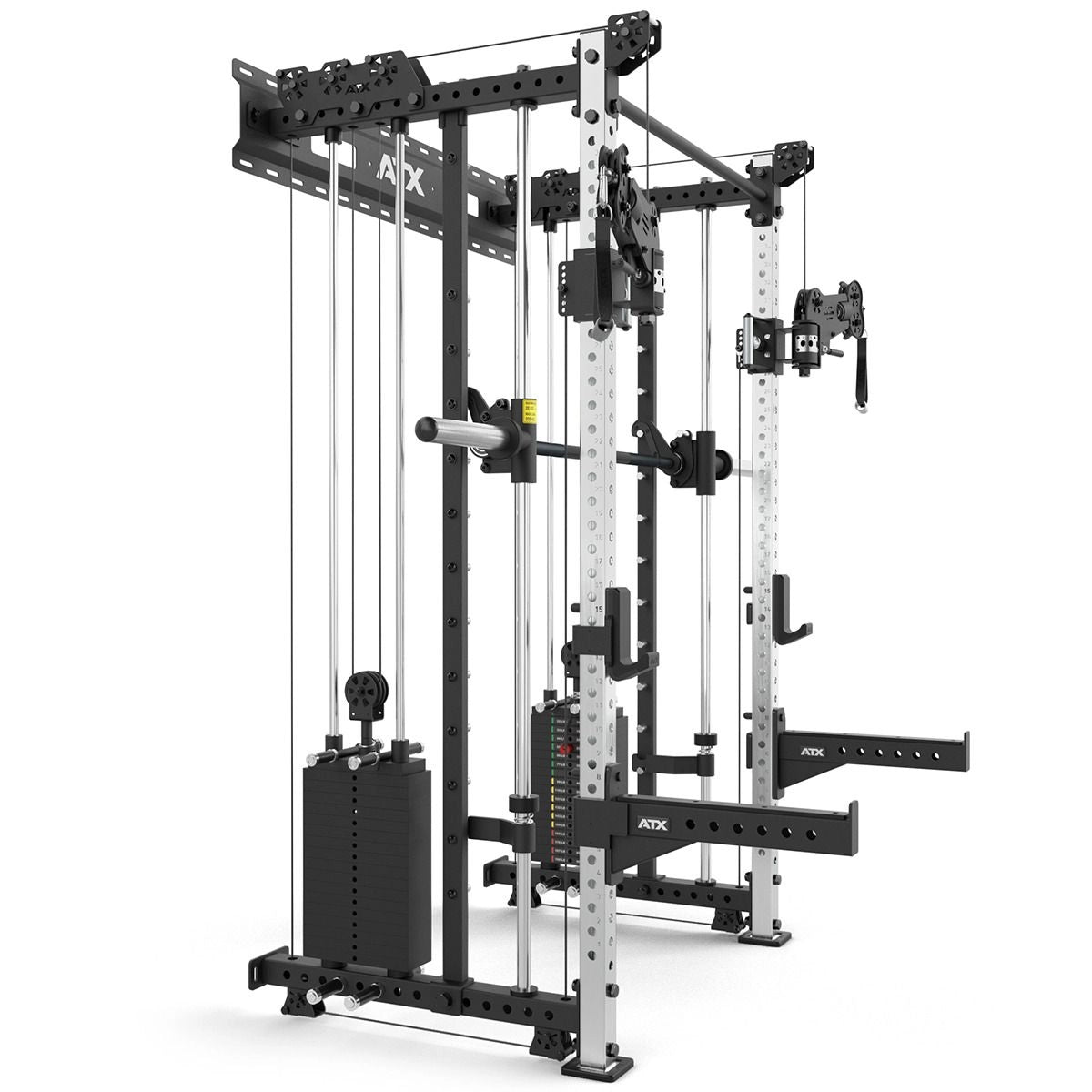

ATX Rack Pull-Up Station with Multi-Press for Wall Mounting
ATX RACK - PULL-UP STATION WITH MULTI-PRESS
- FOR WALL MOUNTING
+ Wall-mounted pull-up station with 2 x 90 kg stack weights
+ with swivel extension arms
+ incl. multi-press with linear ball bearing guide
+ incl. J-Hooks + Safety Spotter-Arms
+ incl. pull-up bar
+ incl. accessories: 1 x triceps rope, 1 x foot strap, 2 x single-hand grips
+ expandable with many other options
This first-class crafted strength station allows the execution of almost all important basic exercises in strength training - from pull-ups, squats, bench press and overhead press - either freely on the dumbbell rack or on the linearly guided multi-press!
With double-sided premium cable pulls
The double-sided cable pulls allow all relevant pulling exercises from high and low positions. Equipped with the high-quality ATX XT swivel arms, narrow and wide pulling angles can be flexibly adjusted - ideal for cable-cross, functional movements and symmetrical, balanced strength training.
A very stable construction made of thick-walled square steel tubing (60 x 60 x 3 mm) with all-round system holes - loadable up to 400 kg. Sliding bushings in the stack weights and ball-bearing cable rollers ensure a silky-smooth running function.
Features:
- Heavy-duty rack station for wall mounting made of thick-walled steel tubing 60 x 60 x 3 mm
- with 2 x 90 kg stack weights in 5 kg increments
- Ratio 2:1

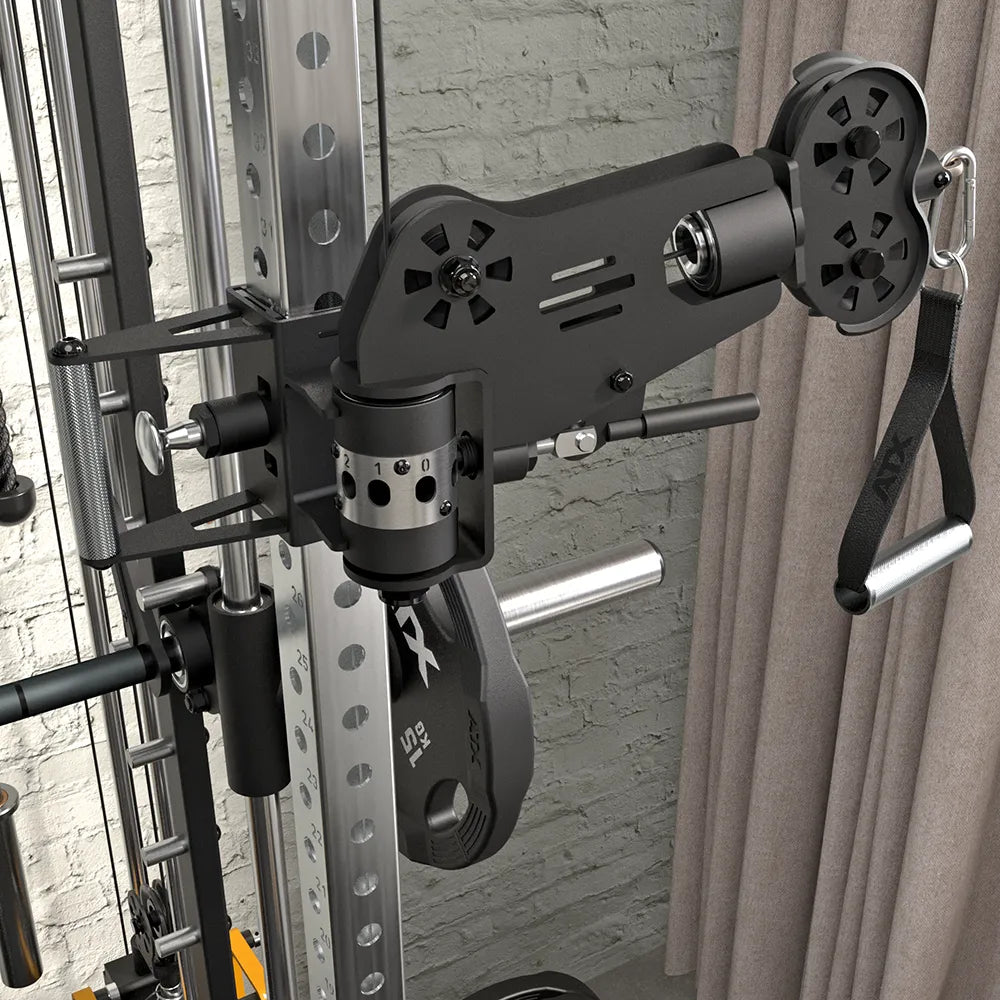

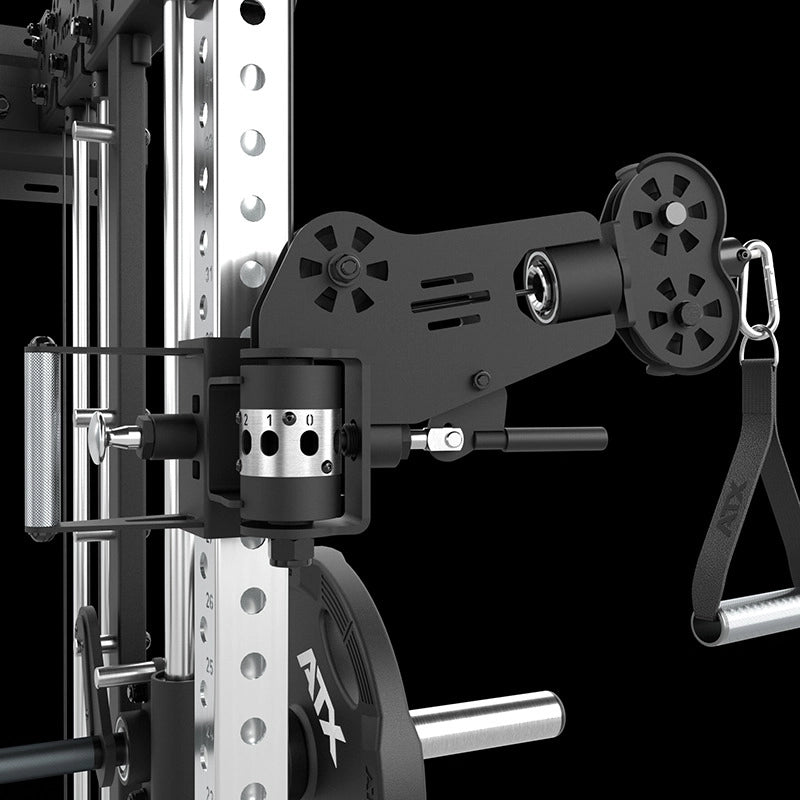

- with ATX XT-Arms / swivel extension arms for extra narrow and wide pulling variations (cable cross-over)
+ Extension arms adjustable in height in fine increments

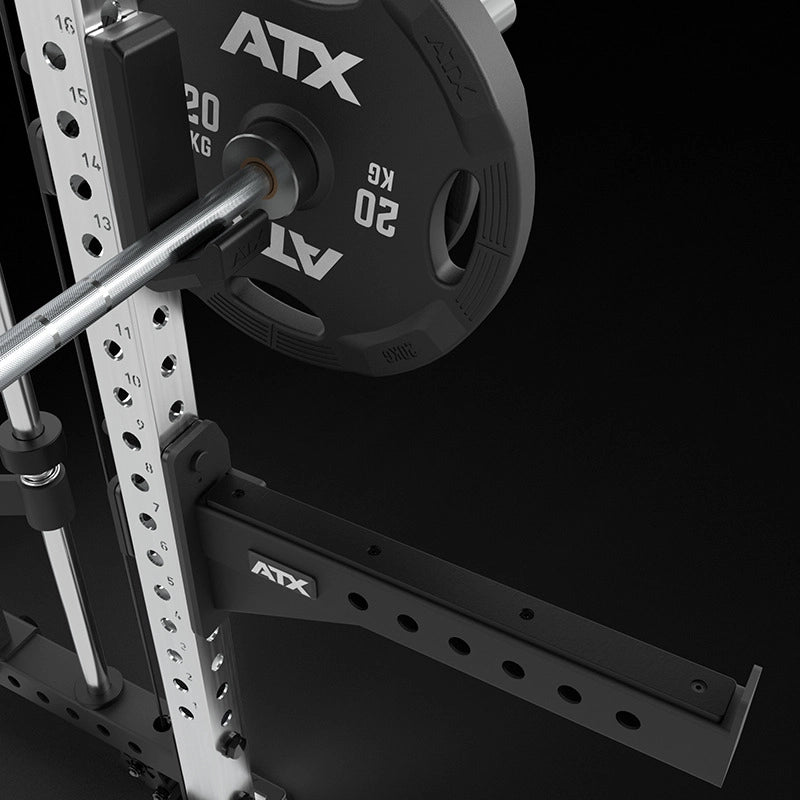

+ Extension arms adjustable in width - incl. J-Hooks + Safety-Spotter-Arms with thick protective rubber coating, for free weight training

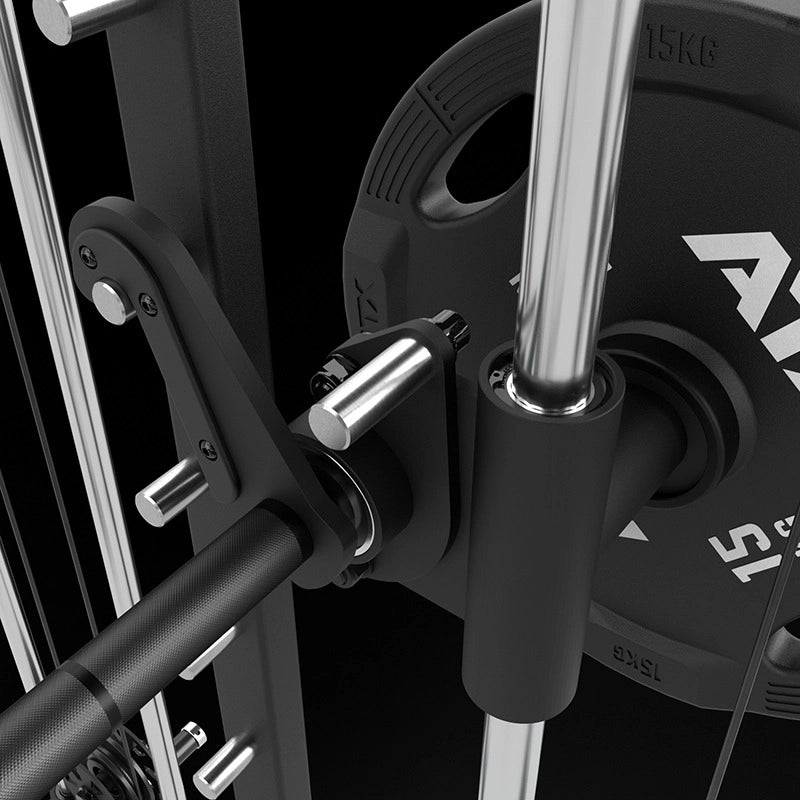

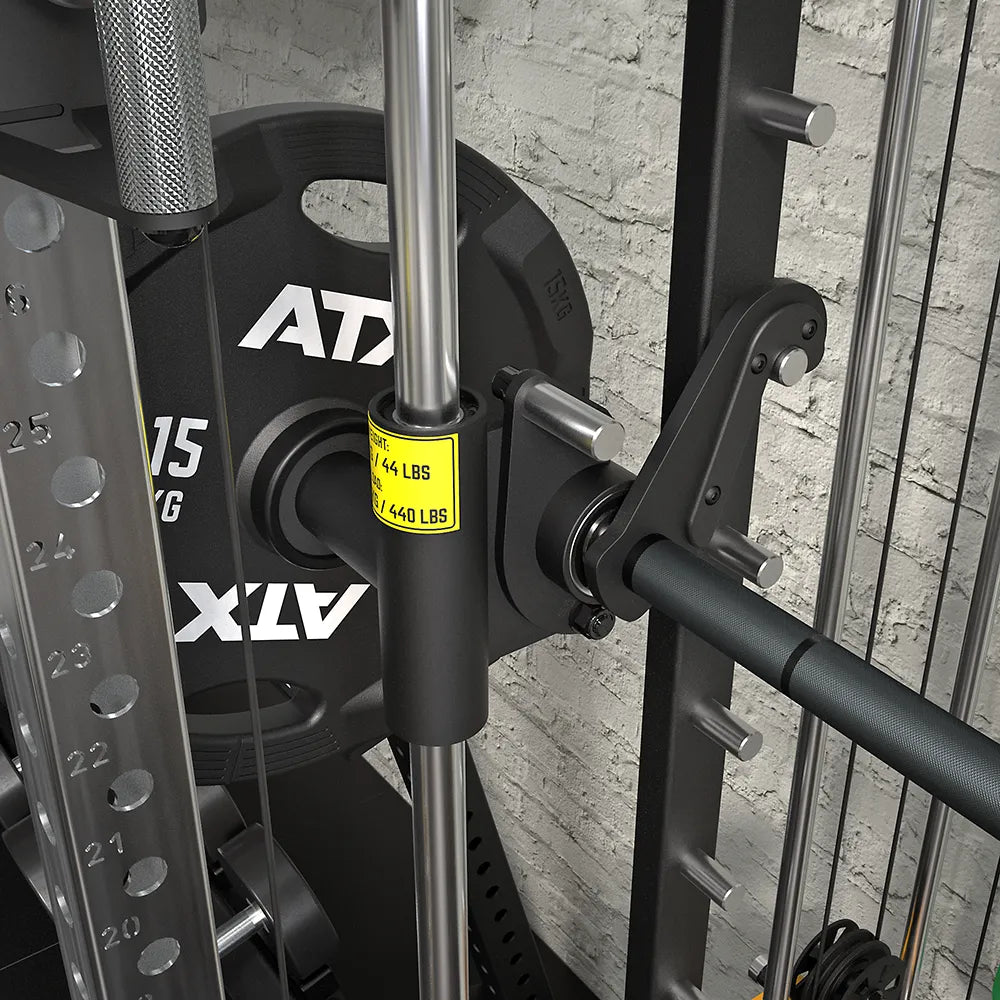

- With linearly guided multi-press - *with 4-way ball bearing guide on 30 mm thick guide shafts - this ensures minimal deflection even with heavy weights!
- Multi-press with additionally adjustable emergency safety tray.

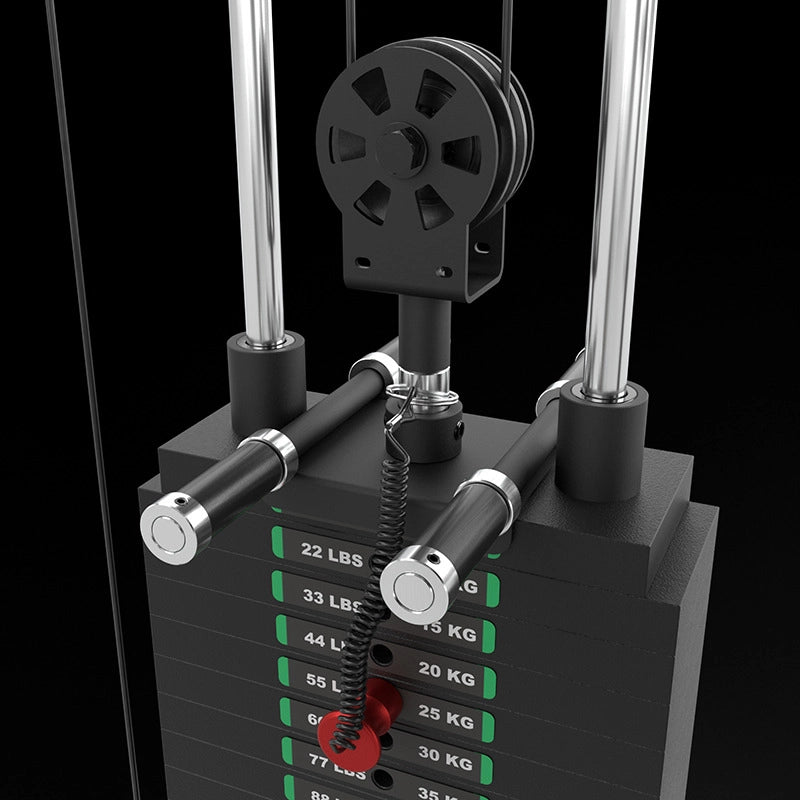

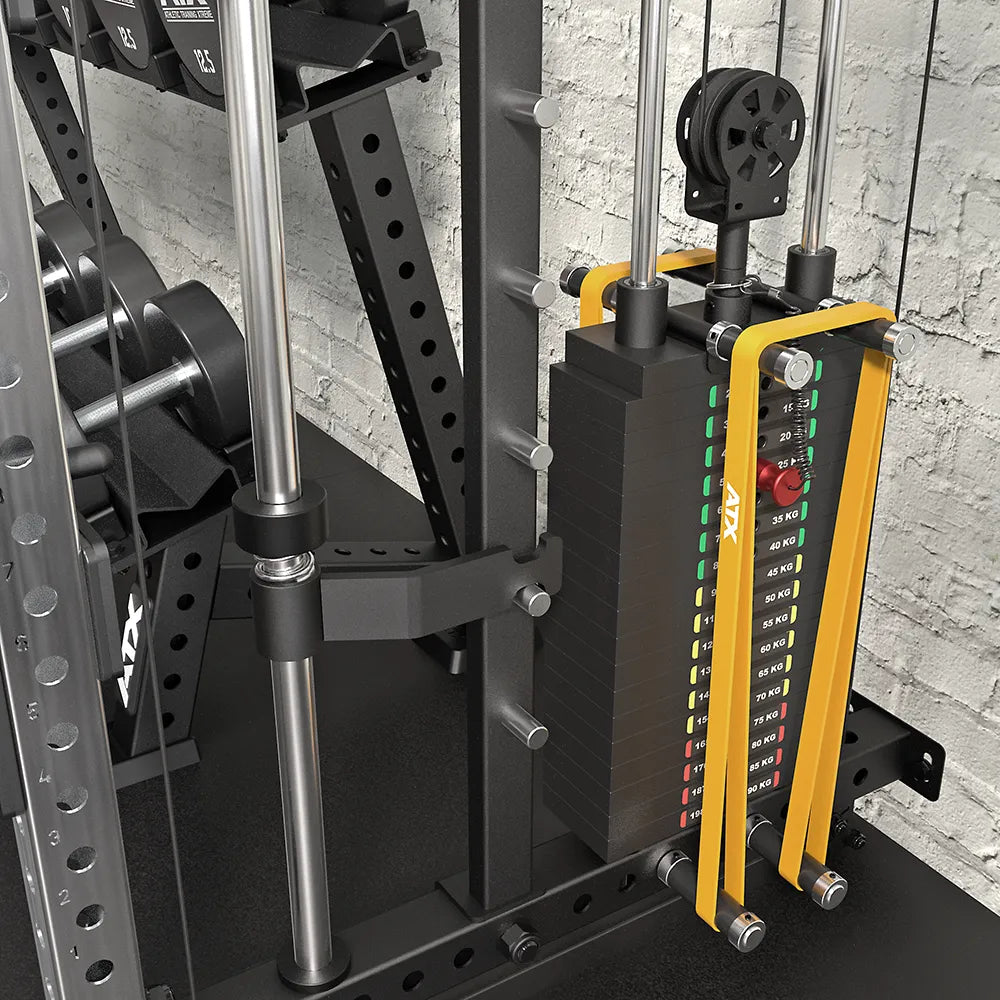

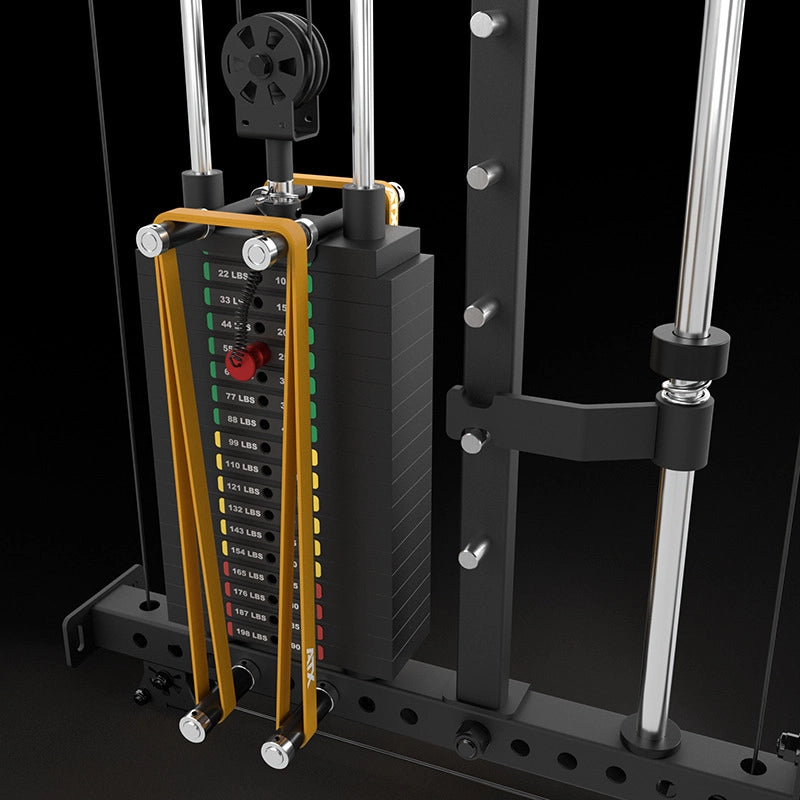

- Stack weights with roller bandpeg device, for attaching resistance bands for additional dynamic weight loading
- with integrated straight pull-up bar

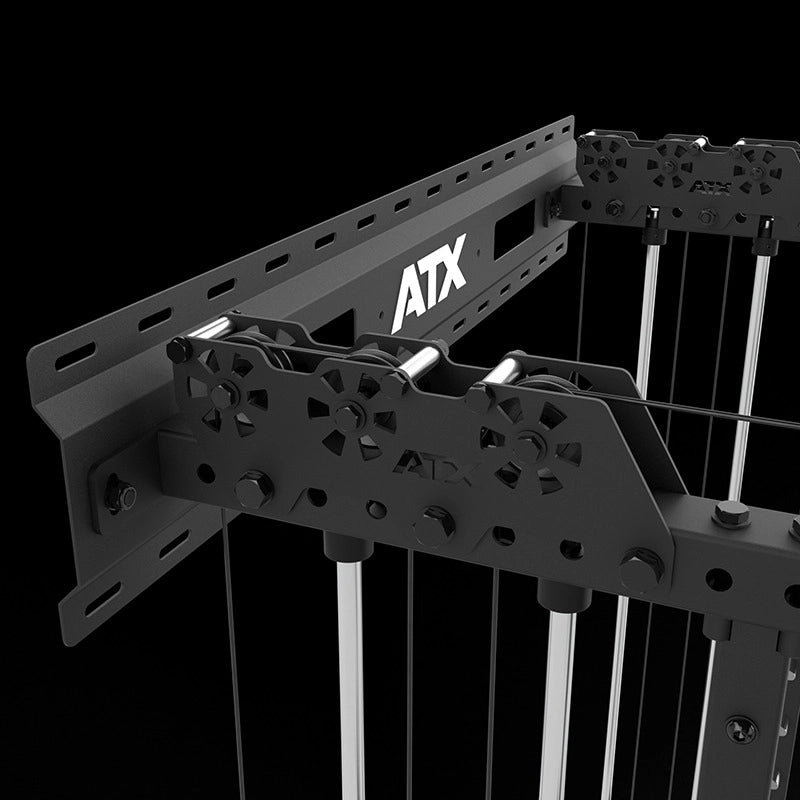

- incl. mounting console for wall mounting
- incl. accessories:
1 x triceps rope
1 x foot strap with Velcro fastener
2 x high-quality single-hand grips with knurled aluminum grips - incl. snap hooks

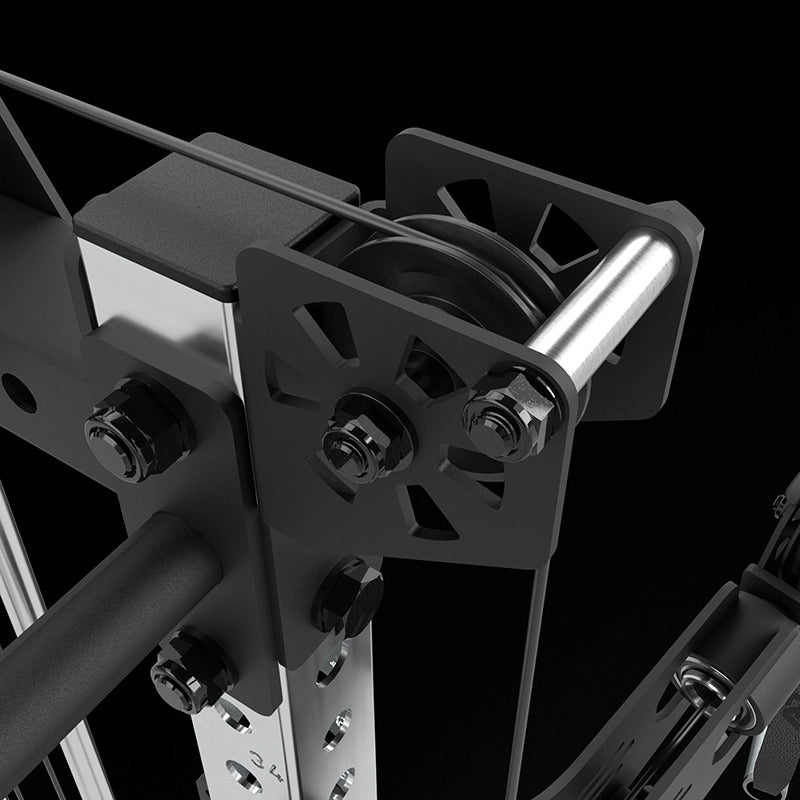

- ball-bearing cable rollers
- stretch-free steel cable with protective sheathing
- stack weights with plain bearing guide
- silky-smooth, jolt-free running characteristics
- front load posts with laser scaling in high-quality chrome plating
- swivel arms with plain bearings and stainless steel locking pins ensure quick and easy adjustability

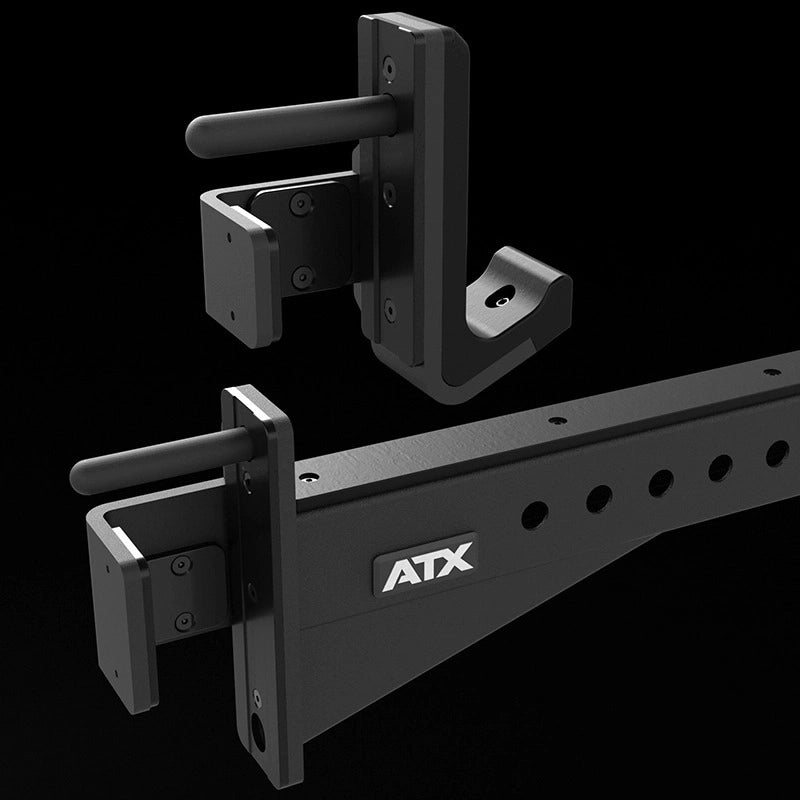

- J-Hooks with thick protective coating and inlay plastic protectors to protect surfaces and minimize noise
- Spotter-Arms / emergency trays - projection 520 mm, with thick protective padding and inlay plastic protectors to protect surfaces and minimize noise
-
Studio Certified!
Scope of delivery:
1 x ATX Rack pull-up station with 2 x 90 kg stack weights incl. multi-press - for wall mounting
Item number: ATX-WSR-640
Including accessories: J-Hooks, Safety Spotter Arms, 3 x snap hooks,
1 x triceps rope, 1 x foot strap, 2 x single-hand grips
Note:
Delivery disassembled, incl. assembly instructions.
At least 8 dowels Ø 10-12 mm are required.
Delivery exkl. dowels - as the type of dowels depends on the nature of your wall. (Please inquire at a specialist store if necessary)
Example accessories such as weight bench, weight plates, barbell, resistance bands, flooring etc. are not included in the scope of delivery.
Technical data:
| Art.-Nr. | ATX-WSR-640 |
|---|---|
| Brand | ATX |
| Series | 600 |
| Category | Squat & Half Racks |

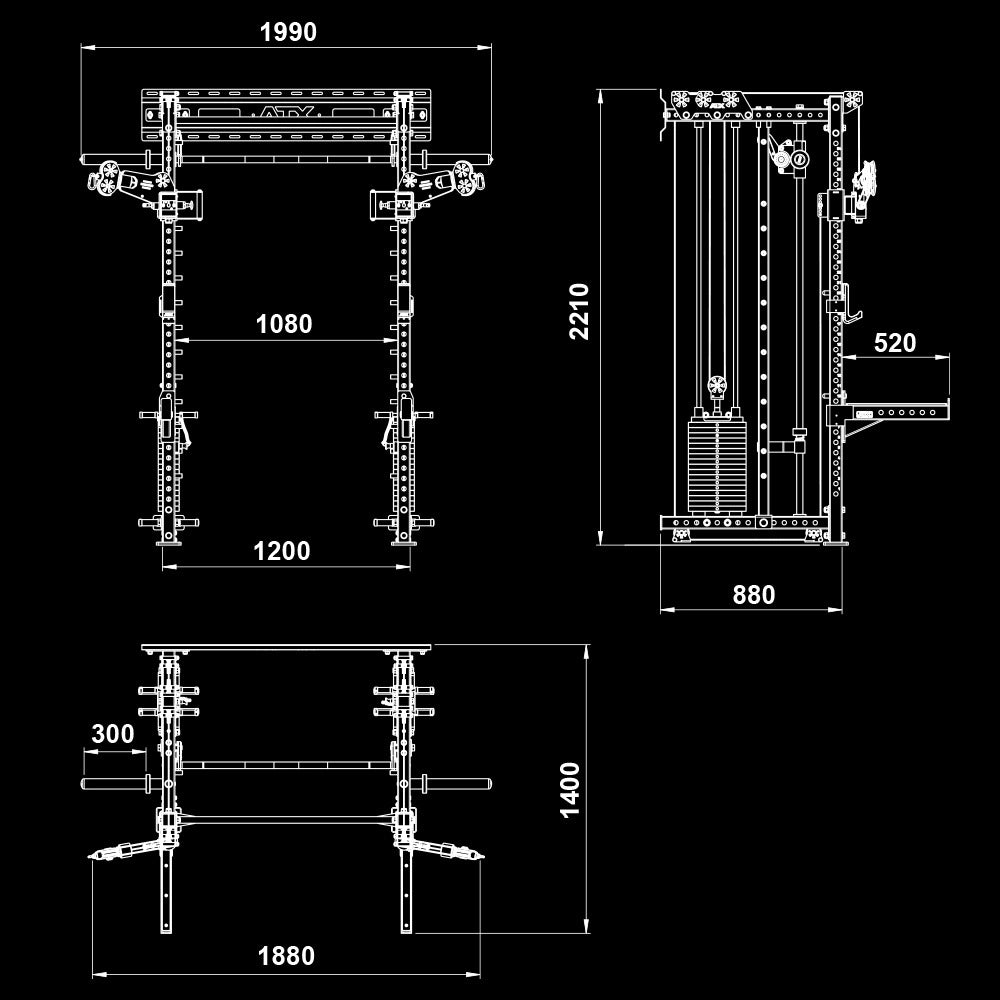

| Width | 1200 / 1990 mm |
| Depth | 880 / 1400 mm |
| Height | 2210 mm |
| Weight | 370 kg |
| Profile steel tube / Frame | 60 x 60 x 3 mm |
| Load capacity |
J-Hooks - 500 kg |
| Dumbbell rack width | 1200 mm |
| Hole pattern | 4-sided drilling Ø 21 mm - 34-fold, center distance 5 cm |
| Scaling | laser-cut digits - double-sided |
| Color | Black silk matte fine structure powder-coated / chrome |
| Certification | EN 20957 I.II.IV - S (Studio) |
| Warranty | 5 years |
Do you have questions? Contact us by phone at 04641-3007 or by email: Info@DankSport.de
All information is without guarantee and to the best of our knowledge and belief!
Errors, changes and prior sale reserved.
