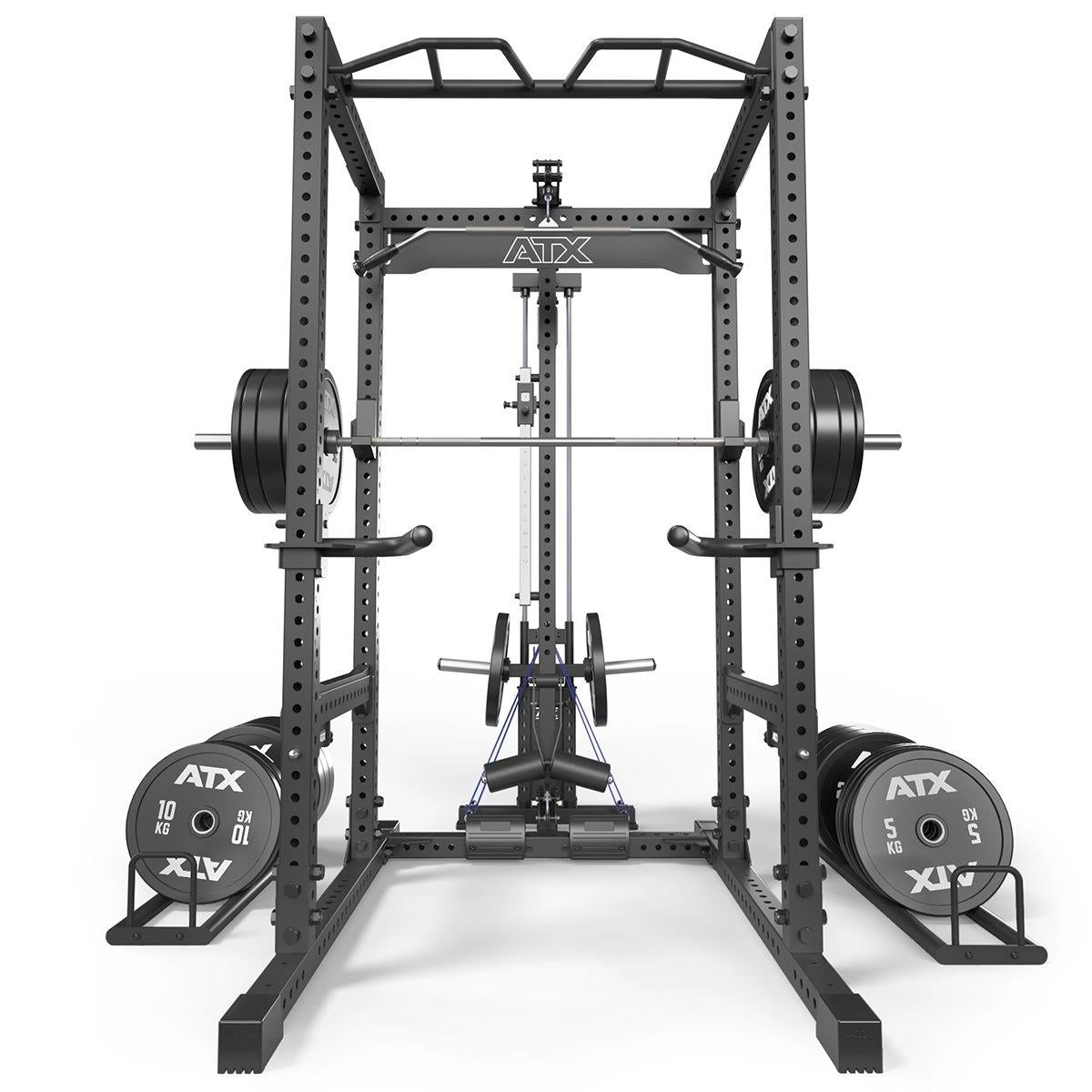

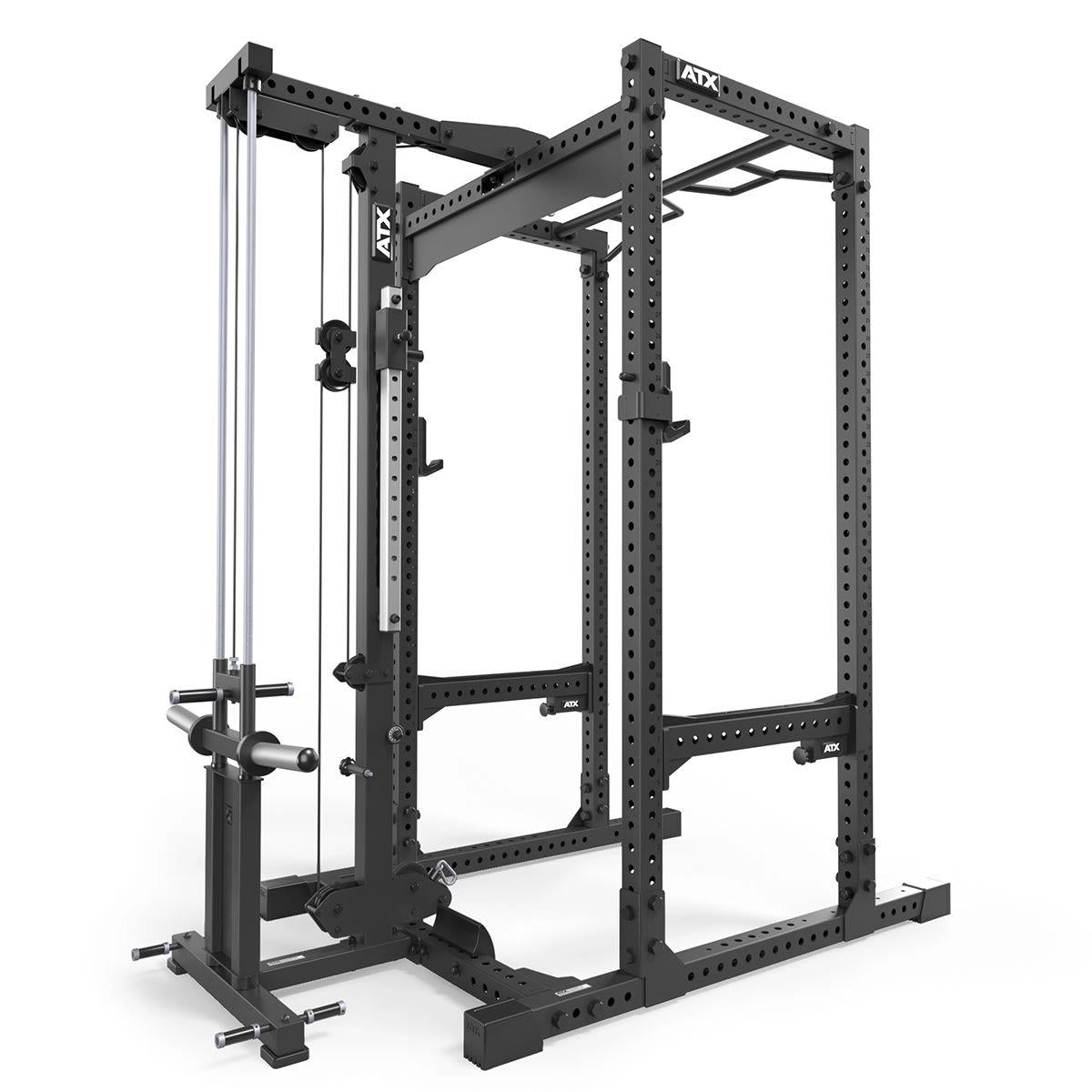

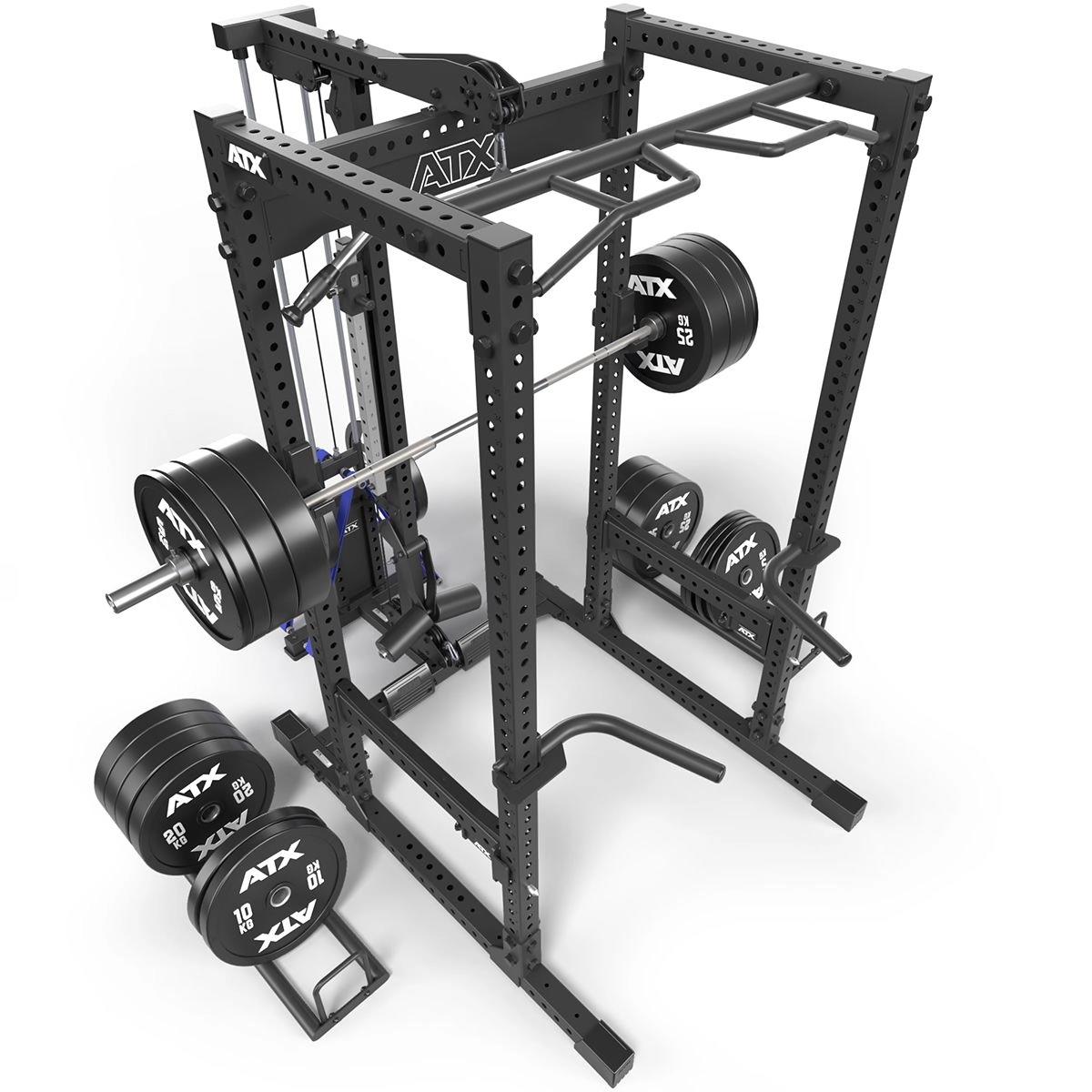

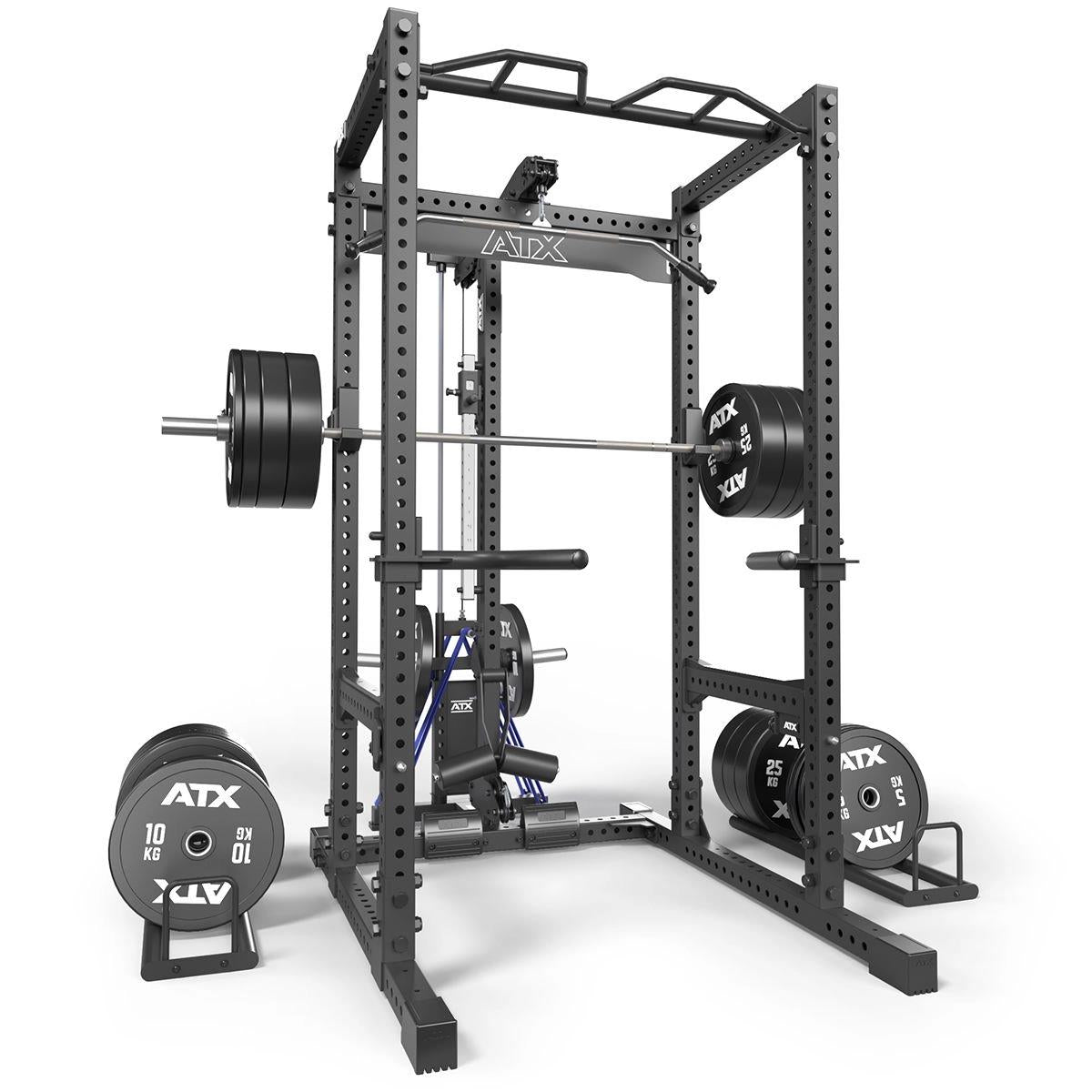

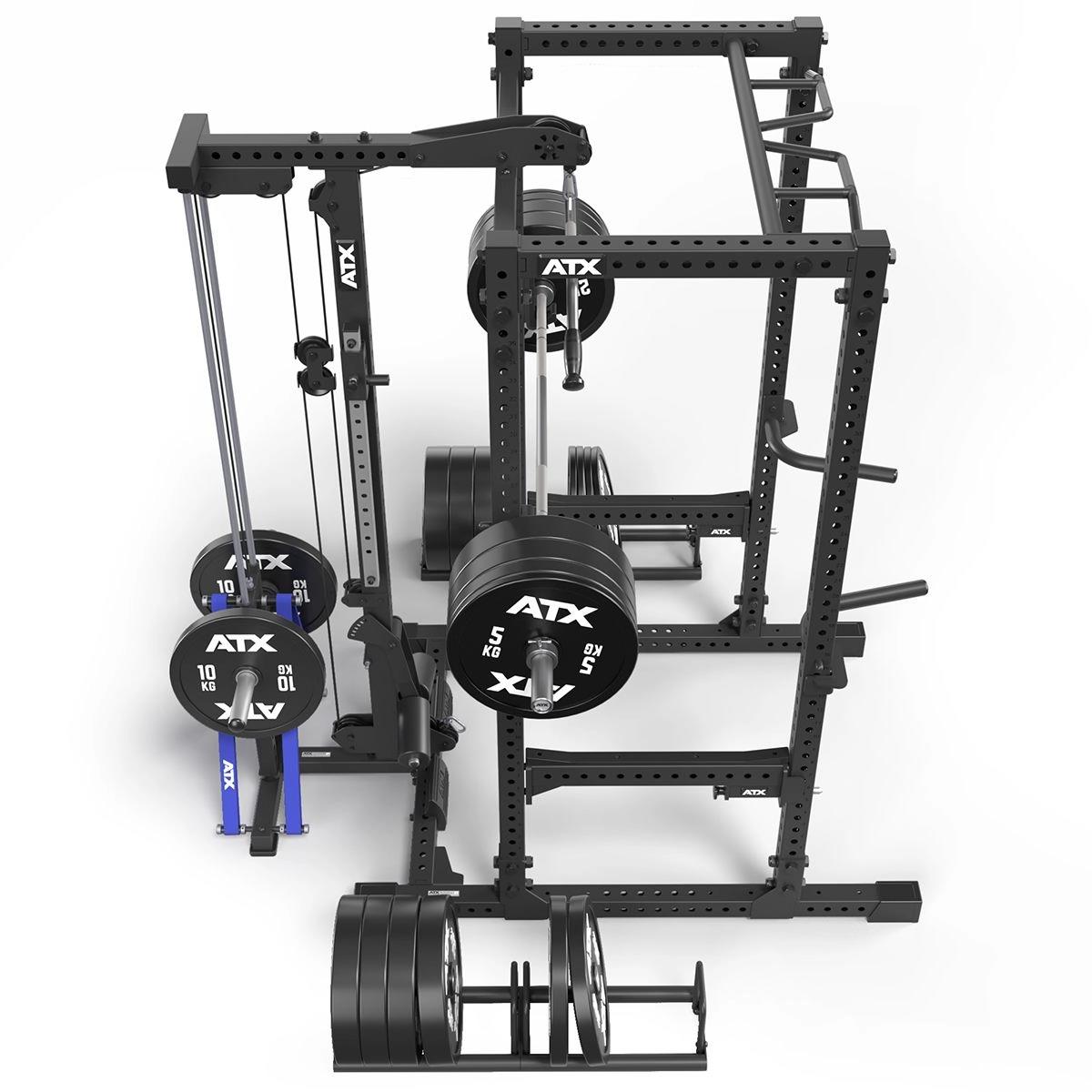

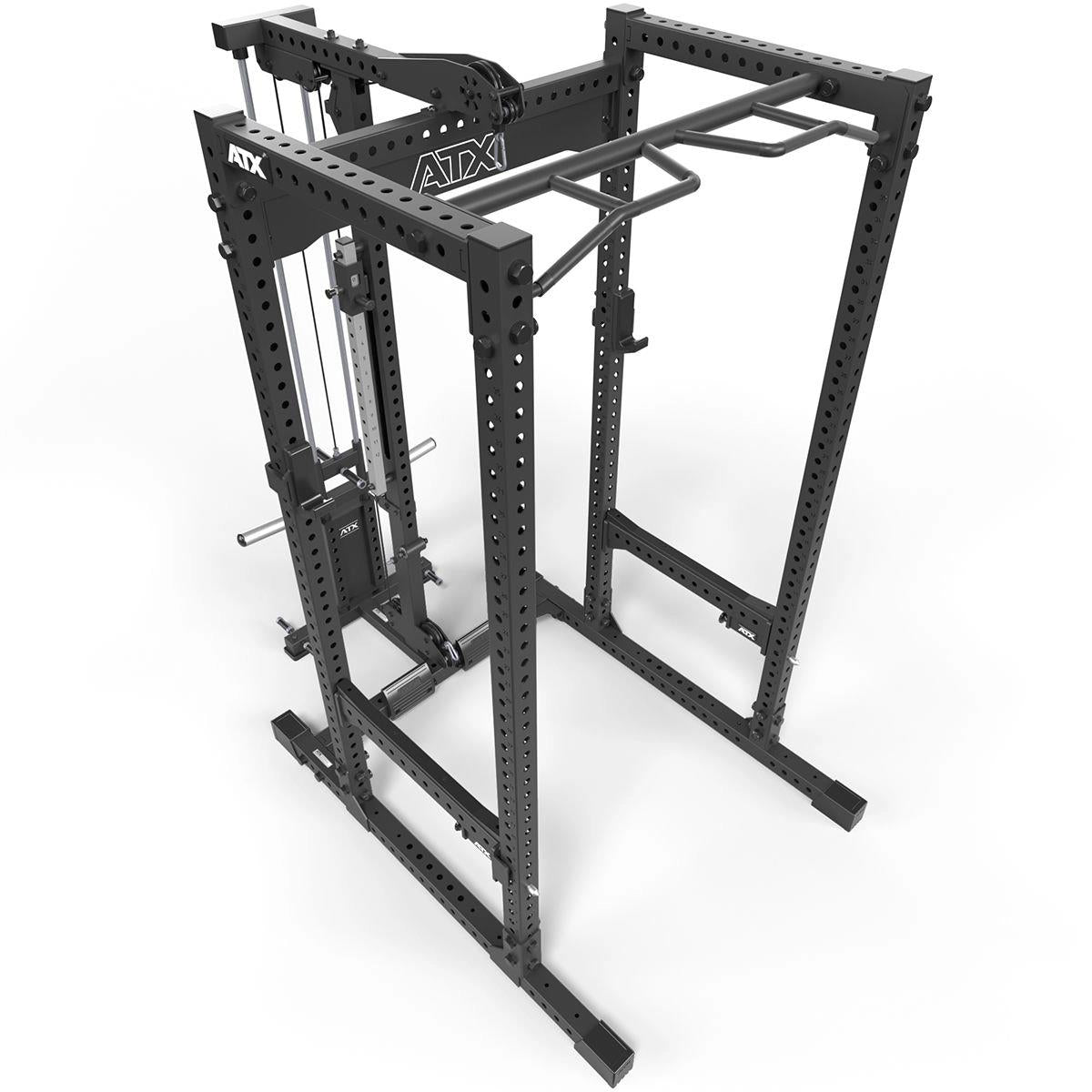

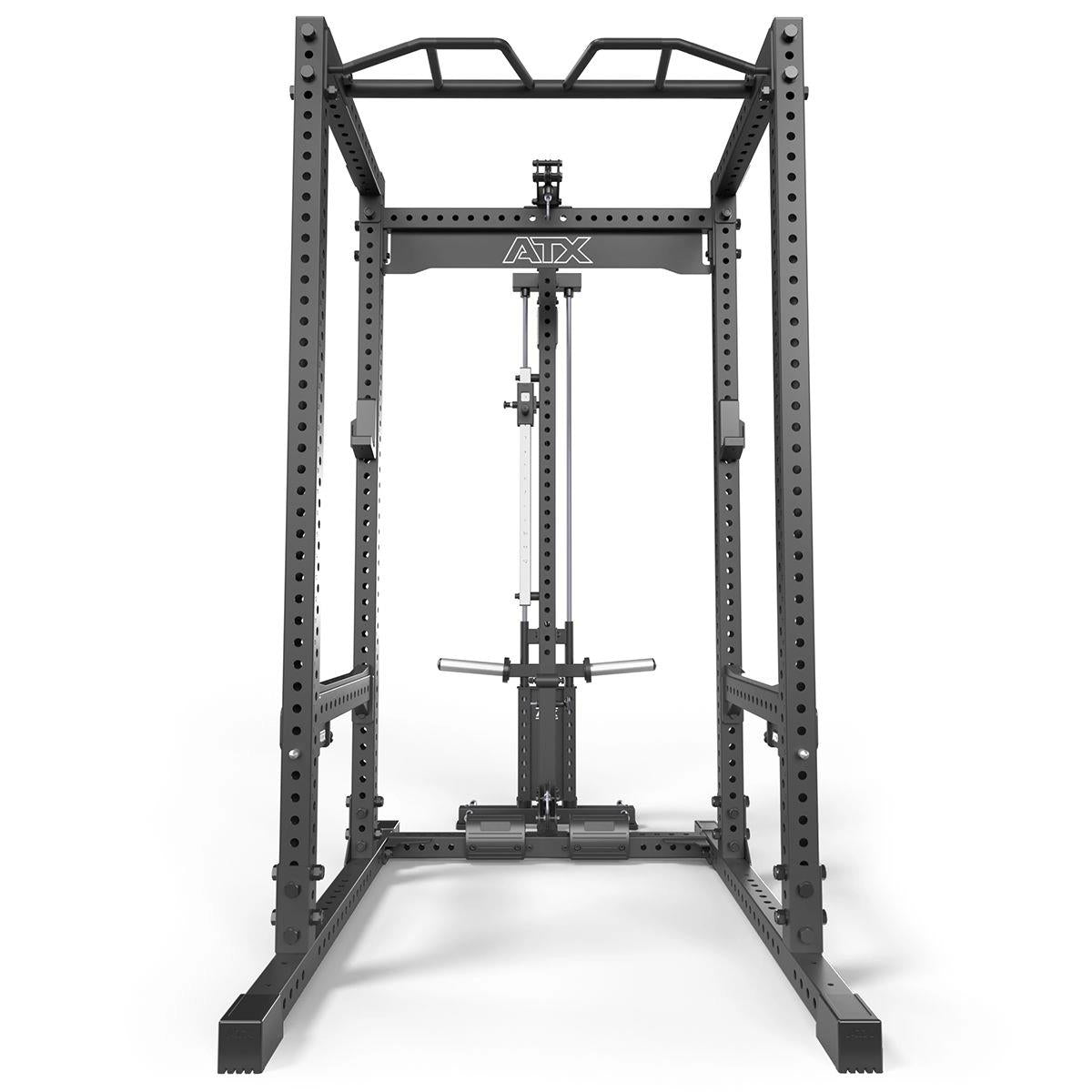

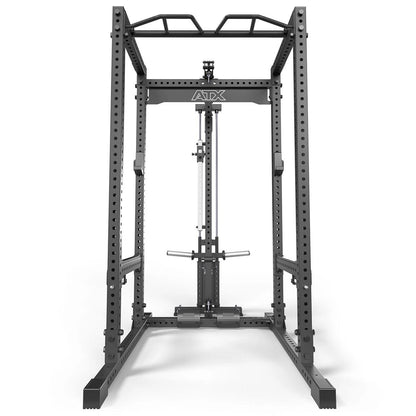

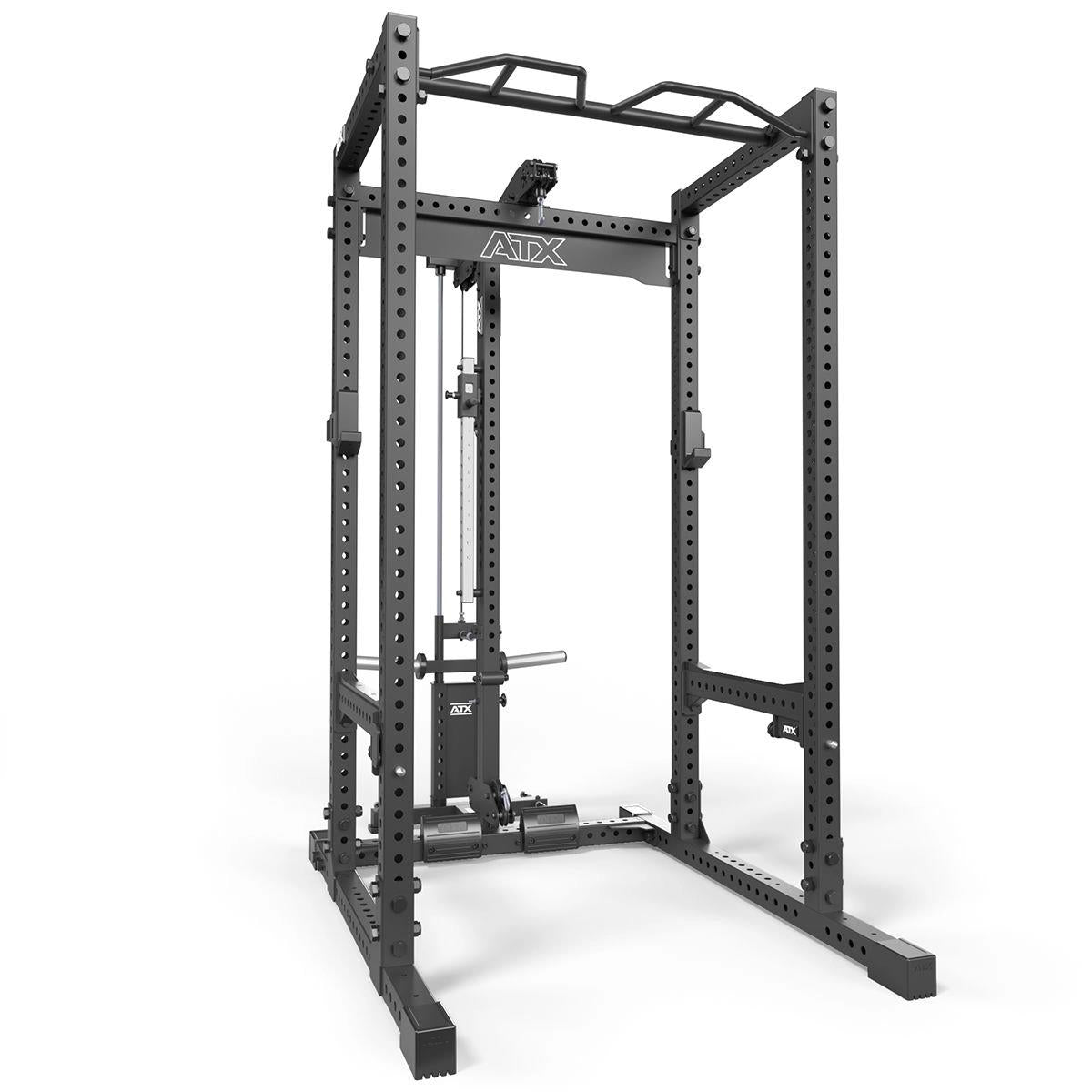

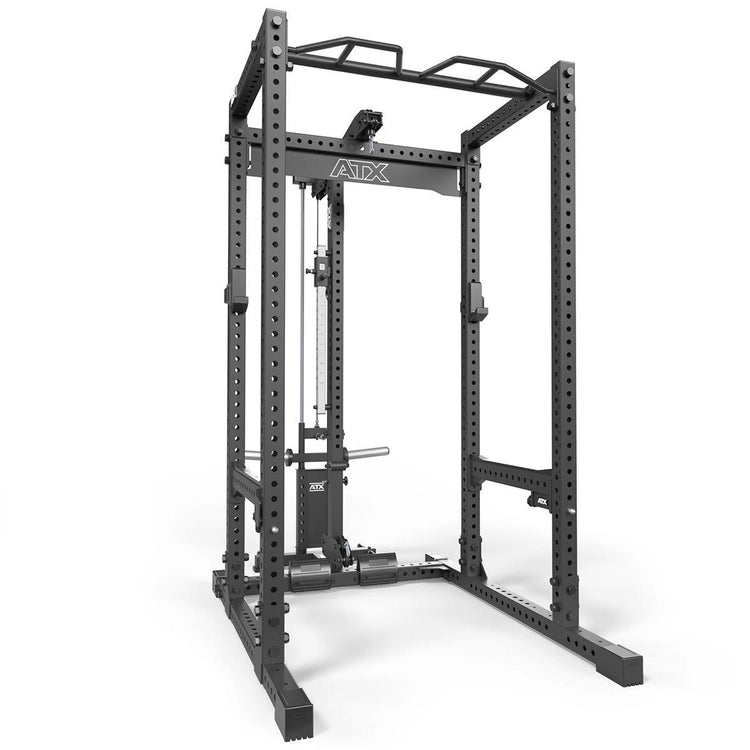

ATX Power Rack PRX-780 2.0 with Lat Pulldown - Weight Plate Holder
ATX POWER RACK 780 WITH PLATE LOAD LAT PULLDOWN STATION - FOR THE HIGHEST DEMANDS AND HEAVIEST LOADS!
+ incl. J-Hooks
+ incl. Heavy Weight Flip-Down Spotters
+ incl. Multi-grip Pull-Up Bar
+ incl. Lat Pulldown Station – Weight Plate Holder Ø 50 mm
+ incl. 3D Logo Plate
Details:
- Construction from 70 x 70 x 3 mm thick steel tubing
- All-round system perforation for individual adjustment/attachment of hooks and accessories
- Hole grid - drill hole Ø 21 mm, 35-fold, center distance 5 cm
- With double-sided laser scaling for quick reproducibility of adjustment heights
- With extra thick support and gusset plates
- With 20 mm thick locking and screw bolts
- J-Hooks made of solid steel
+ with full protective coating
+ loadable up to 500 kg - Flip-Down Spotters/Heavy-duty Safety Spotters
+ with double bolt lock
+ loadable up to 600 kg
+ with thick protective padding - with multi-grip pull-up bar, non-slip knurled
- with high-quality protective feet, floor-friendly and non-slip
- spacious cage with stable base frame
- reinforced logo plate made of steel with printed ATX logo
- free-standing and tip-proof, equipment does not need to be bolted down
- Studio certified

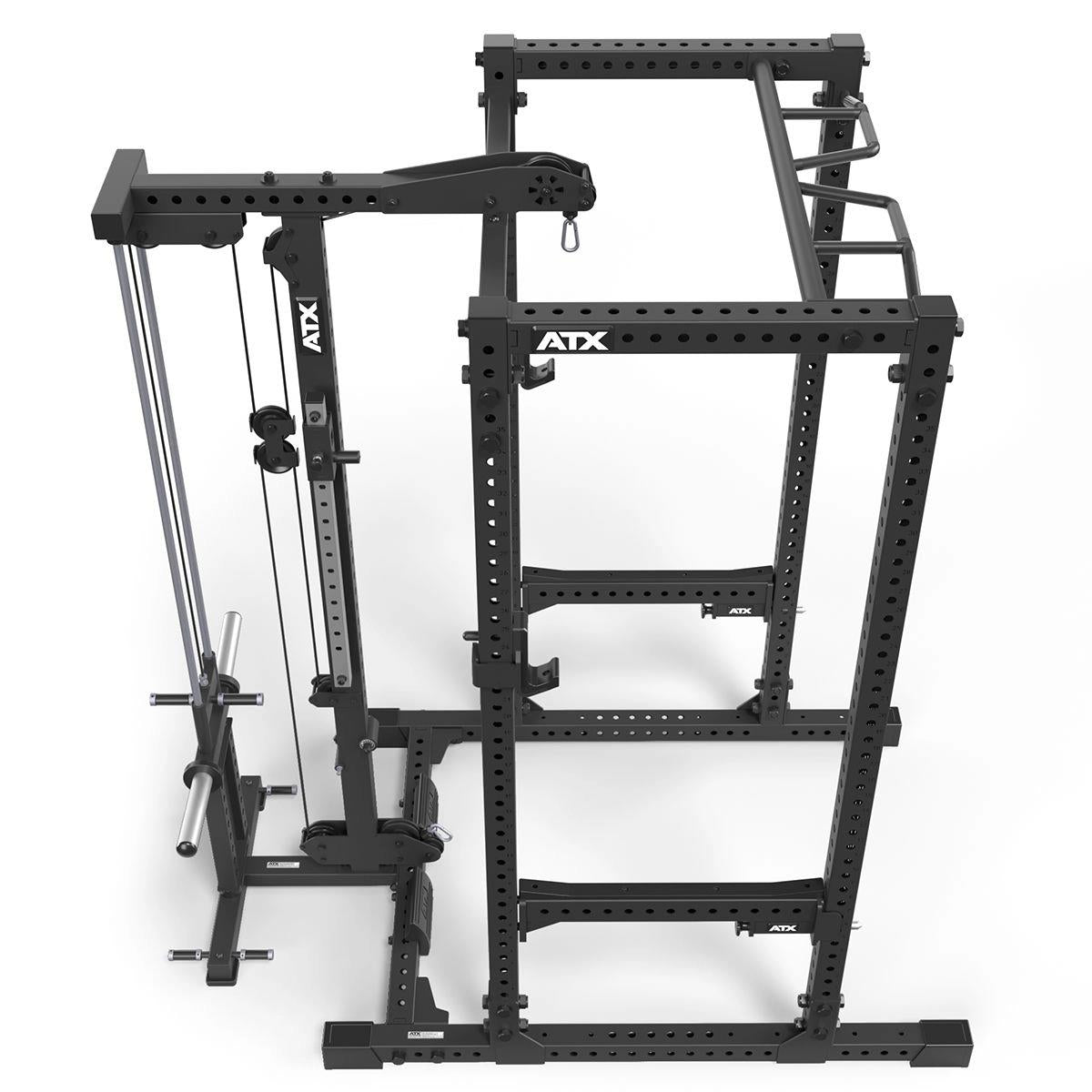

Lat Pulldown Station:
This professional lat pulldown attachment features many in-depth detail solutions, ensuring first-class smooth running and optimal handling! Highest quality workmanship in the unmistakable ATX design with functional added value characterize this ATX lat pulldown station.
- silky-smooth, jerk-free running
+ carriage with plain bearing guide
+ ball-bearing cable pulleys
+ stretch-free steel cable with protective coating
+ guide shafts made of solid steel - Weight ratio 1:1
- lower and upper pulling function
- Ball-bearing double-running cable pulleys at the lower and upper cable suspension ensure smooth sliding of the cable and thus minimize abrasion or damage to the pull cable
- extra high extension length - suitable for body sizes up to 200 cm
- With innovative cable length adjustment - allows setting the optimal start/grip height, optimal extension length and pulling stroke for all body sizes from 155 cm to 200 cm
- individually height-adjustable and foldable leg support - for secure fixation during heavy pulling exercises from above
+ upholstery rollers made of high-quality urethane - hygienic and abrasion-resistant
+ quick and easy height adjustment with spring locking pin - with large, stable footrests with non-slip surface structure - for secure support during heavy rowing exercises
- Heavy-duty - up to 200 kg
- With Roller Band Pegs, for attaching resistance bands - for an additional increased dynamic load
- Weight plate holders Ø 50 mm - chromed
- slanted weight plate holders - prevent plates from falling off during training and allow training without collars, which optimizes handling and increases safety
- made of 70 x 70 x 3 mm strong square steel tubing with laser-cut hole pattern and 5 - 8 mm thick laser-cut shaped steel plates
- with rubberized feet - floor-friendly and non-slip
- professional pulling station in first-class workmanship with unmistakable ATX DNA
- with studio approval - certified EN 20957 I.II.IV - S (Studio)
The thick-walled steel construction made of 70 x 70 x 3 mm profile steel tubes with extra reinforced gusset plates and 20 mm thick screw bolts guarantees heaviest loads and maximum durability. Everything is absolutely torsion-resistant and stiffly constructed. The spacious cage offers plenty of freedom of movement, the dimensions according to international standards ensure safe and professional handling.
The entire frame is provided with system perforations on all sides in a fine grid of 50 mm, allowing for individual attachment of hooks, spotters, accessories, or other system components. The laser-etched numerical scaling on both sides allows for quick identification and reproduction of the desired adjustment heights.
The J-Hooks are made of 10 mm thick solid steel. The heavy-duty safety spotters have double locking bolts and are therefore extremely robust. The hooks and safety spotters are fitted with thick protective pads on the inside and outside, which protect the equipment and the barbell from abrasion and damage and significantly minimize noise. The pull-up bar is non-slip knurled and allows all relevant grip positions. The logo plate with the embossed ATX logo has an extra deep spread dimension and is made entirely of steel, which guarantees maximum force absorption and maximum stiffness of the frame.
A rack system with first-class workmanship and in-depth detail solutions - studio certified!
Scope of delivery:
1 x ATX Power Rack 780 2.0 complete system with lat pulldown - Plate Load
incl. J-Hooks
incl. Heavy Weight Flip-Down Spotters
incl. Multi-grip Pull-Up Bar
incl. Lat Pulldown Station - Weight Plate Holder Ø 50 mm
incl. 3D Logo Plate
Note:
Delivery disassembled, incl. assembly instructions - easy assembly.

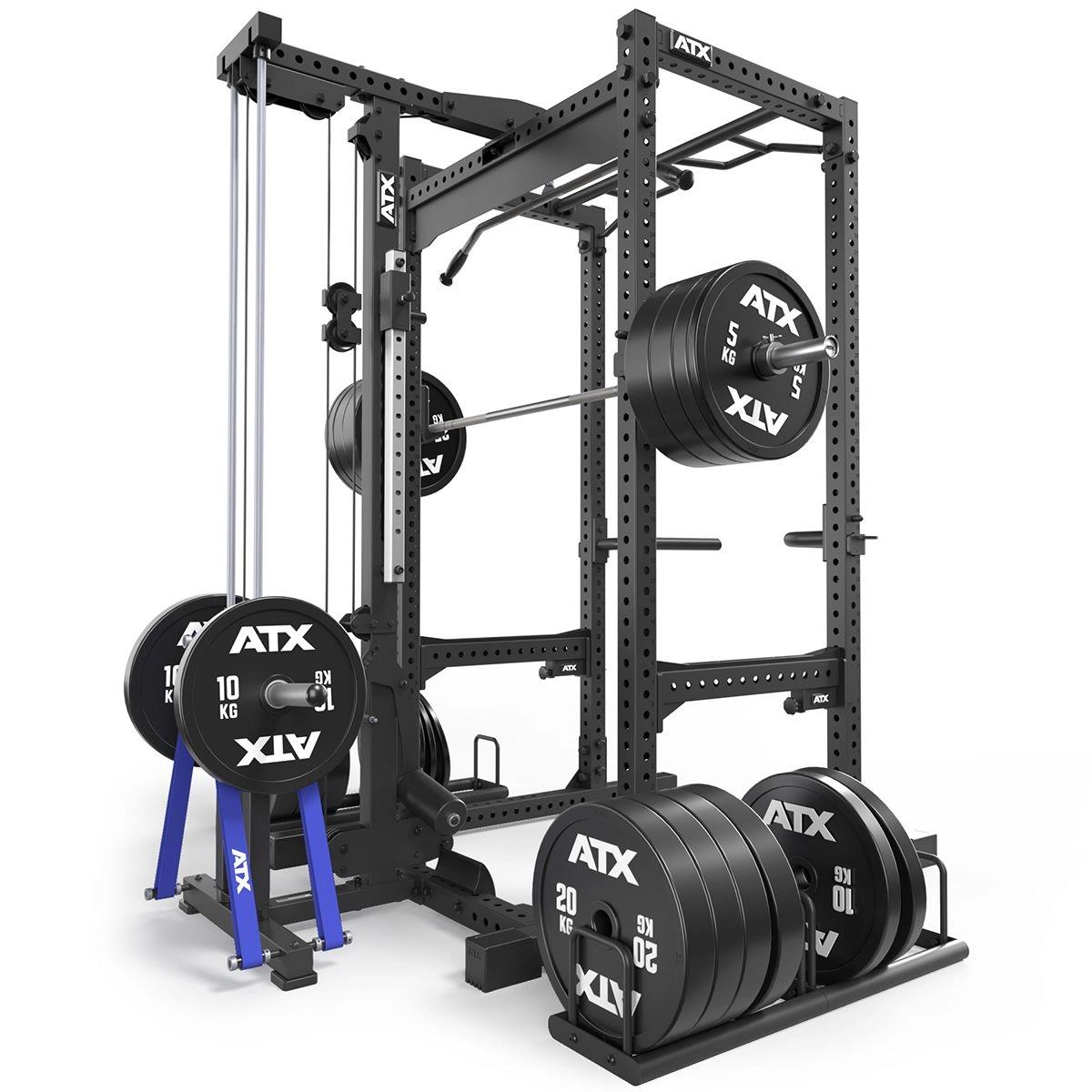

Accessories shown such as barbells, weight plates, collars, weight plate storage, etc. are not included in the scope of delivery.

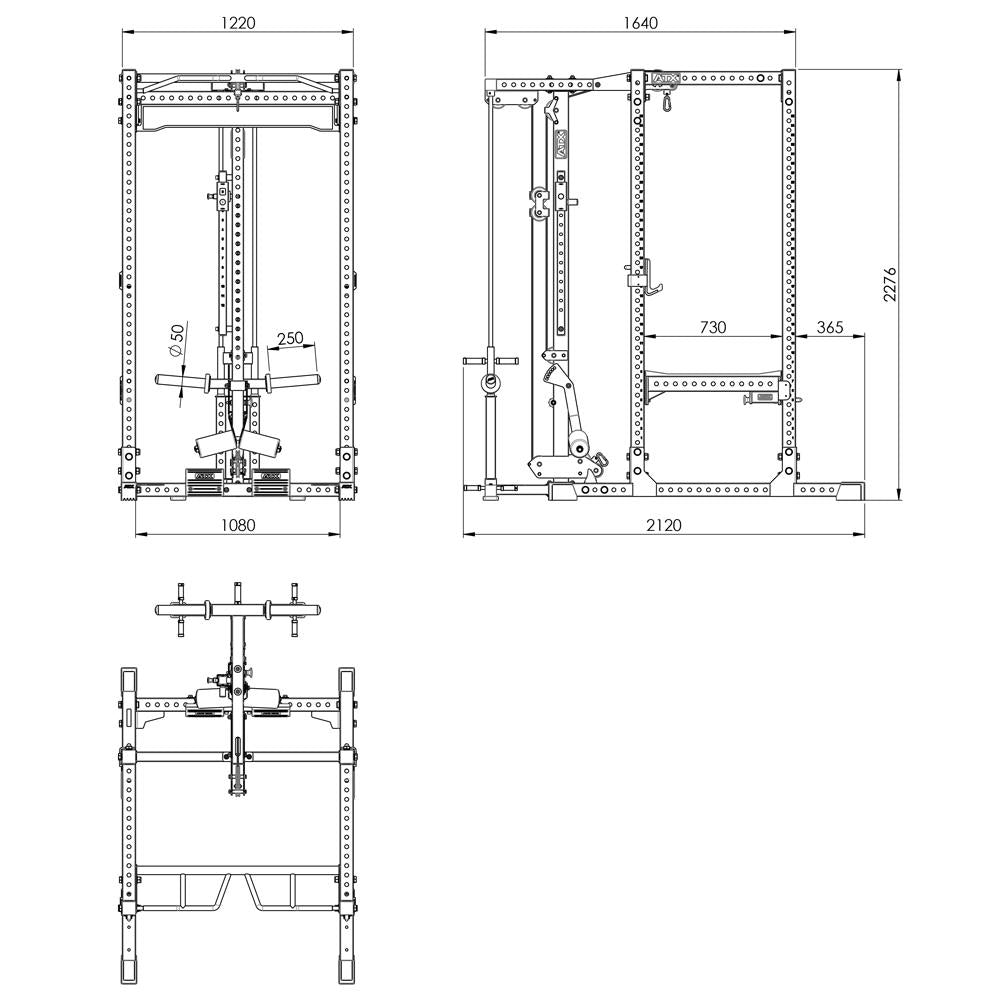

Technical data:
| Item No. | ATX-PRX-780-LTO-PL |
|---|---|
| Brand | ATX |
| Series | 700 |
| Width | 1220 mm |
| Depth | 2115 mm |
| Height | 2276 mm |
| Weight | 219 kg |
| Profile Steel Tube / Frame | 70 x 70 x 3 mm |
| Hole Spacing | 4-sided, bore Ø 21 mm, 35-fold, center distance 5 cm |
| Scaling | laser-etched numbers - double-sided |
| Cage Dimension Width X Depth | 1080 x 730 mm |
| Barbell Rack Width | 1220 mm |
| Load Capacity |
J-Hooks - 500 kg / pair |
| Color | black semi-matt fine structure powder-coated |
| Certification | EN 20957 I.II.IV - S (Studio) |
Do you have questions? Contact us by phone at 04641-3007 or by email: Info@DankSport.de
All information is provided without guarantee and to the best of our knowledge and belief!
Errors, changes and prior sale reserved.
