ATX Power Rack PRX-780 incl. multipress - option
ATX Power Rack PRX-780
Basic rack made of 70 x 70 x 3 mm thick profile steel tube:
incl. J-hooks
incl. Heavy Weight Flip-Down Spotter
incl. multigrip pull-up bar
Our Power Rack PRX-780 is designed for the highest demands and heaviest loads!
The thick-walled steel construction, made of 70 x 70 x 3 mm profiled steel tubes with extra-reinforced gusset plates and 20 mm axle bolts, guarantees the heaviest loads and maximum durability. Everything is designed to be absolutely torsionally rigid and torsionally stiff. The spacious cabin offers plenty of freedom of movement, and its dimensions, which comply with international standards, ensure safe and professional handling.
The entire frame is perforated on all sides with a fine 50 mm pitch, allowing for the custom attachment of hooks, spotters, accessories, or other system components. The laser-etched numerical scale on both sides allows for quick recording and reproduction of the desired adjustment heights.

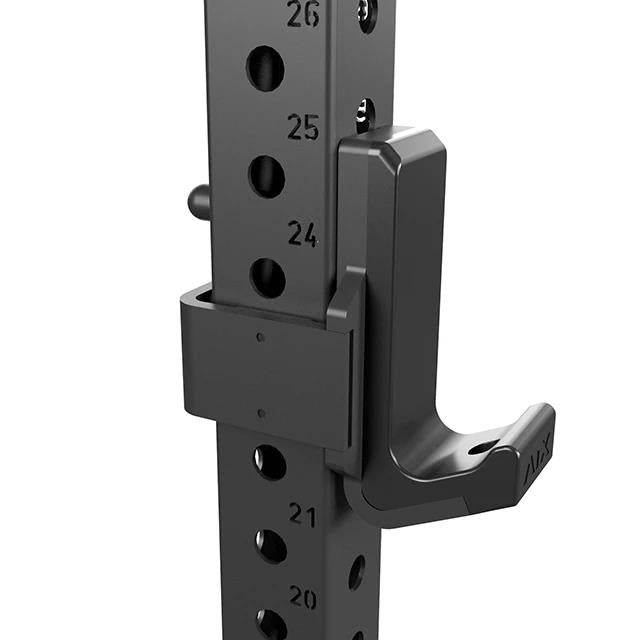

The J-hooks are made of 10 mm thick solid steel. The heavy-duty emergency rests feature double locking pins, making them extremely durable. The hooks and emergency rests are covered with thick protective coatings inside and out, protecting the equipment and barbell from abrasion and damage and significantly reducing noise. The multifunctional bar features a non-slip knurled grip and allows for all relevant grip positions. The logo plate, with its printed ATX logo, has an extra-deep spread and is made entirely of steel, guaranteeing maximum force absorption and maximum frame rigidity.
A rack system with first-class workmanship and detailed solutions - studio-certified!
Overview:
- Construction made of 70 x 70 x 3 mm thick profile steel tube
- All-round system perforation for individual adjustment / attachment of hooks and accessories
- Hole pattern - hole Ø 21 mm, 33-way, center-to-center distance 5 cm
- With double-sided laser scaling for quick reproducibility of setting heights
- With extra thick support and gusset plates
- With 20 mm thick locking and screw bolts
- J-hooks made of solid steel with full protective coating, load capacity up to 500 kg
- Flip-down spotter/heavy-duty emergency shelves, with double bolt security, load capacity up to 600 kg, with thick protective pad
- with multigrip pull-up bar, knurled for a good grip
- with high-quality protective feet, floor-protecting and non-slip
- spacious cage with stable floor frame
- Freestanding and tilt-proof, device does not need to be anchored
- Studio certified
Technical data:
| brand | ATX |
|---|---|
| series | 700 |
| Width | 1232 mm |
| depth | 1670 mm |
| Height | 2276 mm |
| Weight | 152 kg |
| Profile steel tube / frame | 70 x 70 x 3 mm |
| Resilience |
J-Hooks - load capacity up to 500 kg |
| Cage dimensions width x depth | 1080 x 730 mm |
| Wide dumbbell rack | 1220 mm |
| Hole pattern | Bore Ø 21 mm, 35-way, center distance 5 cm |
| Scaling | lasered numbers - double-sided |
| Color | black satin finish fine structure powder-coated |
| Certification | EN 20957 I.II.IV - S (Studio) |
ATX Multipress - Option - MPA-780
Professional multi-press - attachment option
Details:
- 4-fold linear ball bearing
- Minimal bending/twisting thanks to hard chrome-plated steel shafts Ø 30 mm
- non-skewing, silky-smooth running properties
- Barbell bar made of solid steel Ø 30 mm, knurled and marked for a good grip, black chrome-plated
- with 4 locking/storage bolts made of solid steel Ø 20 mm,
- quickly and easily adjustable in height
- with individually adjustable safety locks
- Weight plate holders Ø 50 mm
- Length of the disc holders 300 mm
- for frontal mounting, including fastening material
- Studio certified
- incl. screws/fasteners
- Option can be easily and quickly mounted on the Power Racks - Series 780
The ATX Multipress option provides excellent functionality and maximum load.
Thanks to the highest quality components such as the hard chrome-plated solid steel shafts with a thickness of 30 mm and the quadruple linear ball bearings, this multi-press option guarantees first-class running characteristics. The 30 mm thick solid steel shafts ensure maximum rigidity and therefore minimal deflection even with heavy weights. The bearing bushes, each with two high-quality linear bearings, ensure smooth and tilt-free running. The four locking bolts can be quickly and easily screwed on to different heights, allowing individual setting of the start/stop positions. The emergency rests are individually adjustable and ensure maximum safety during training. The barbell (Ø 30 mm) is also made of solid steel and has non-slip knurling and grip width markings. A multi-press option made from the highest quality components, in a heavy-duty, solid design.
Technical data:
SKU
ATX-MPA-780
brand
ATX
Width
2000 mm
Height
2175 mm
depth
192 mm
Weight
55 kg
Resilience
200 kg
Color
Black fine structure powder coated
Certification
EN 20957 I.II.IV - S
Scope of delivery:
1 x ATX Power Rack PRX-780
incl. J-hooks
incl. Heavy Weight Flip-Down Spotter
incl. Multigrip pull-up bar
1 x ATX Smith Option MPA-780 including locking bolts and safety shelves
Including screws/fasteners for mounting on the rack
A notice:
Delivered disassembled, including assembly instructions - easy assembly.
Pictured accessories such as barbell, weight plates, closures, weight plate systems, etc. are not included in delivery.
Do you have any questions? Contact us by phone at +49 4641-3007 or by email at Info@DankSport.de
All information is provided without guarantee and to the best of our knowledge and belief!
Errors, changes and prior sale reserved.
