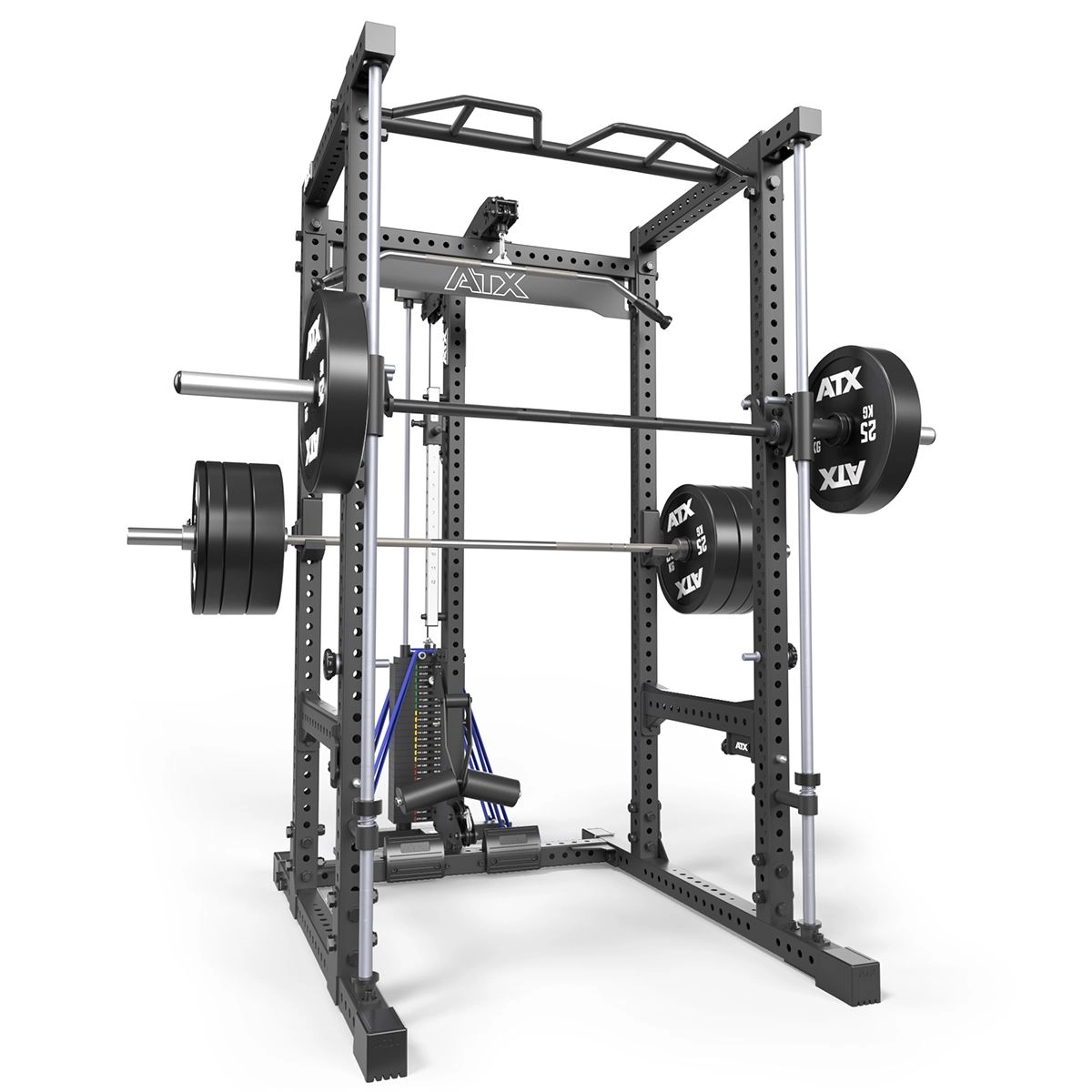

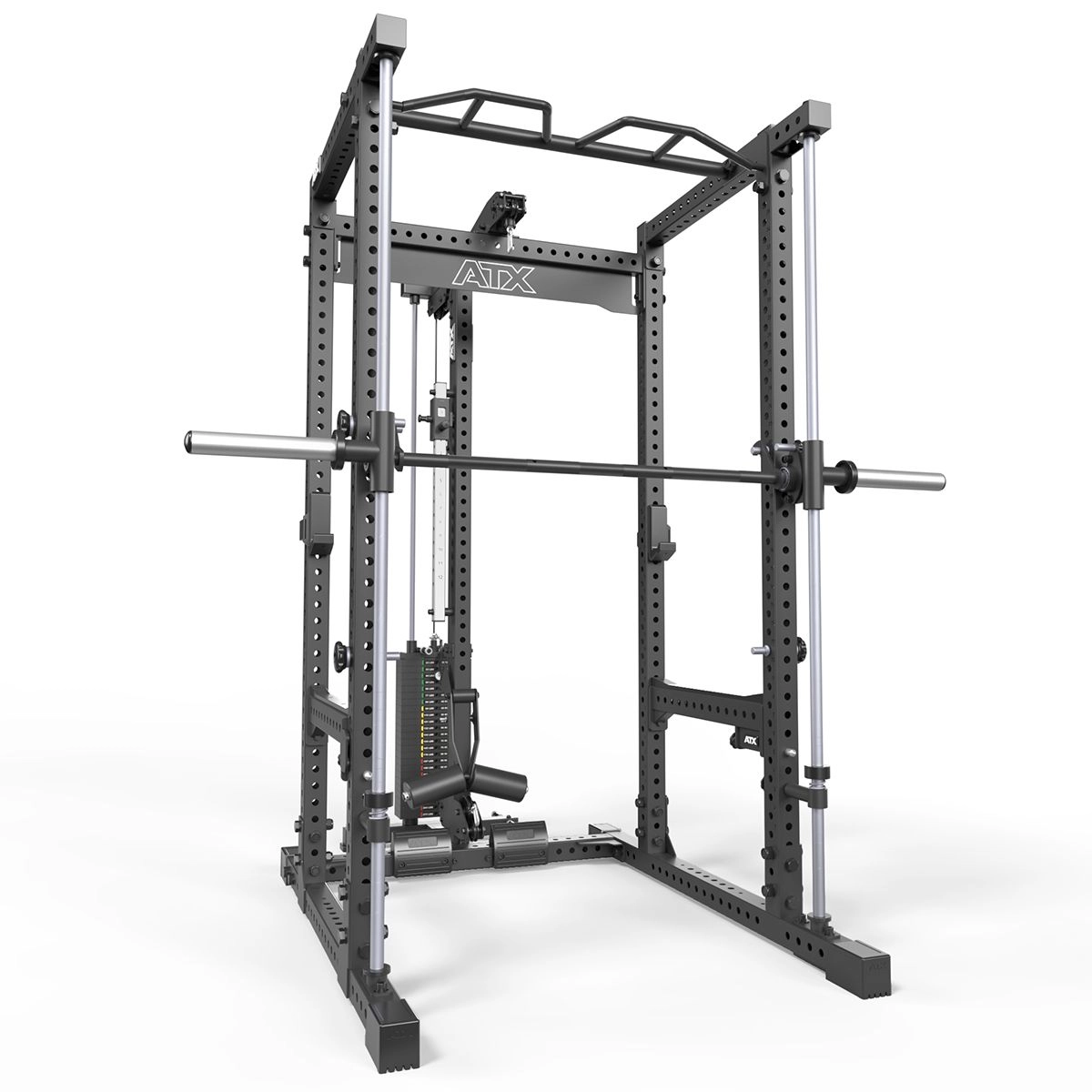

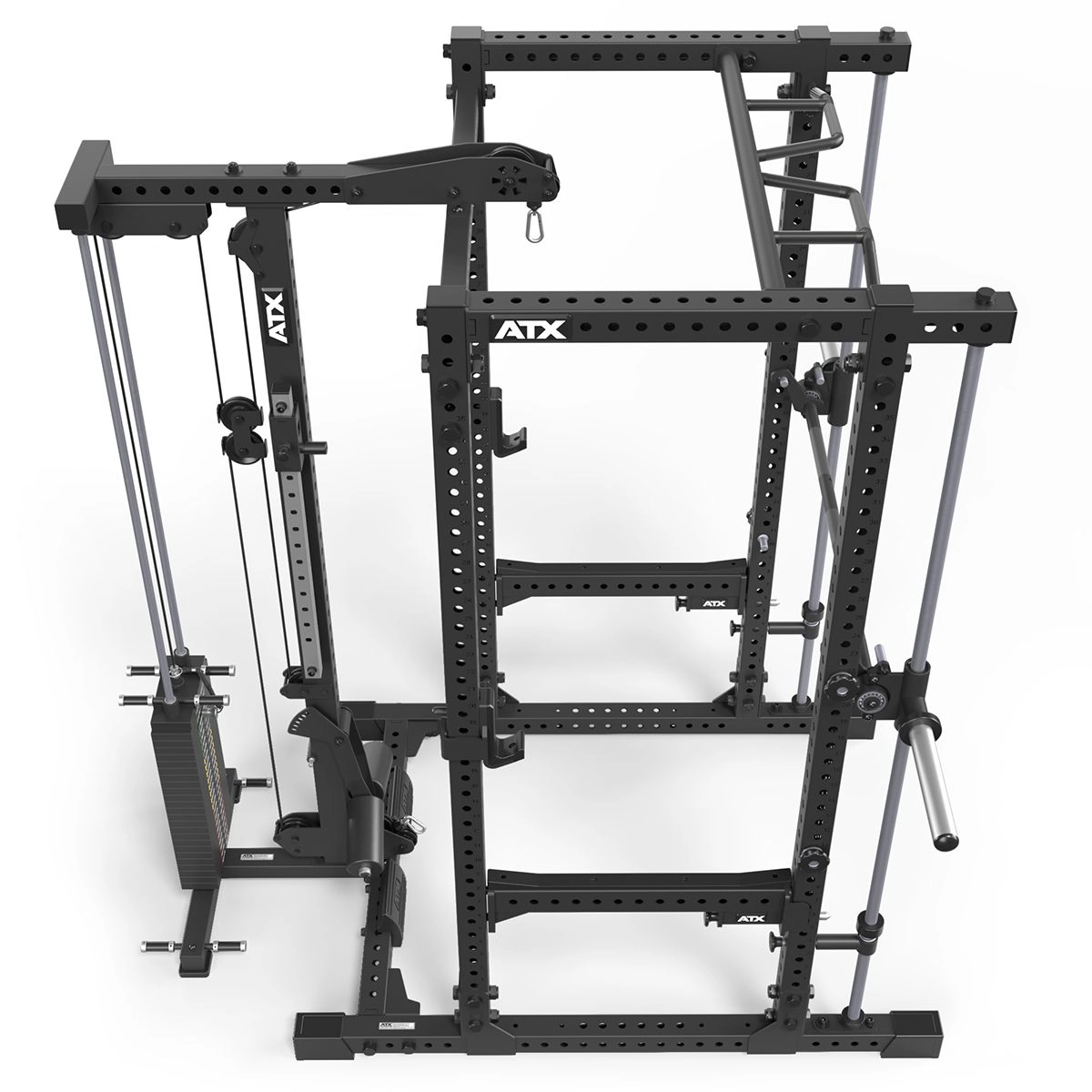

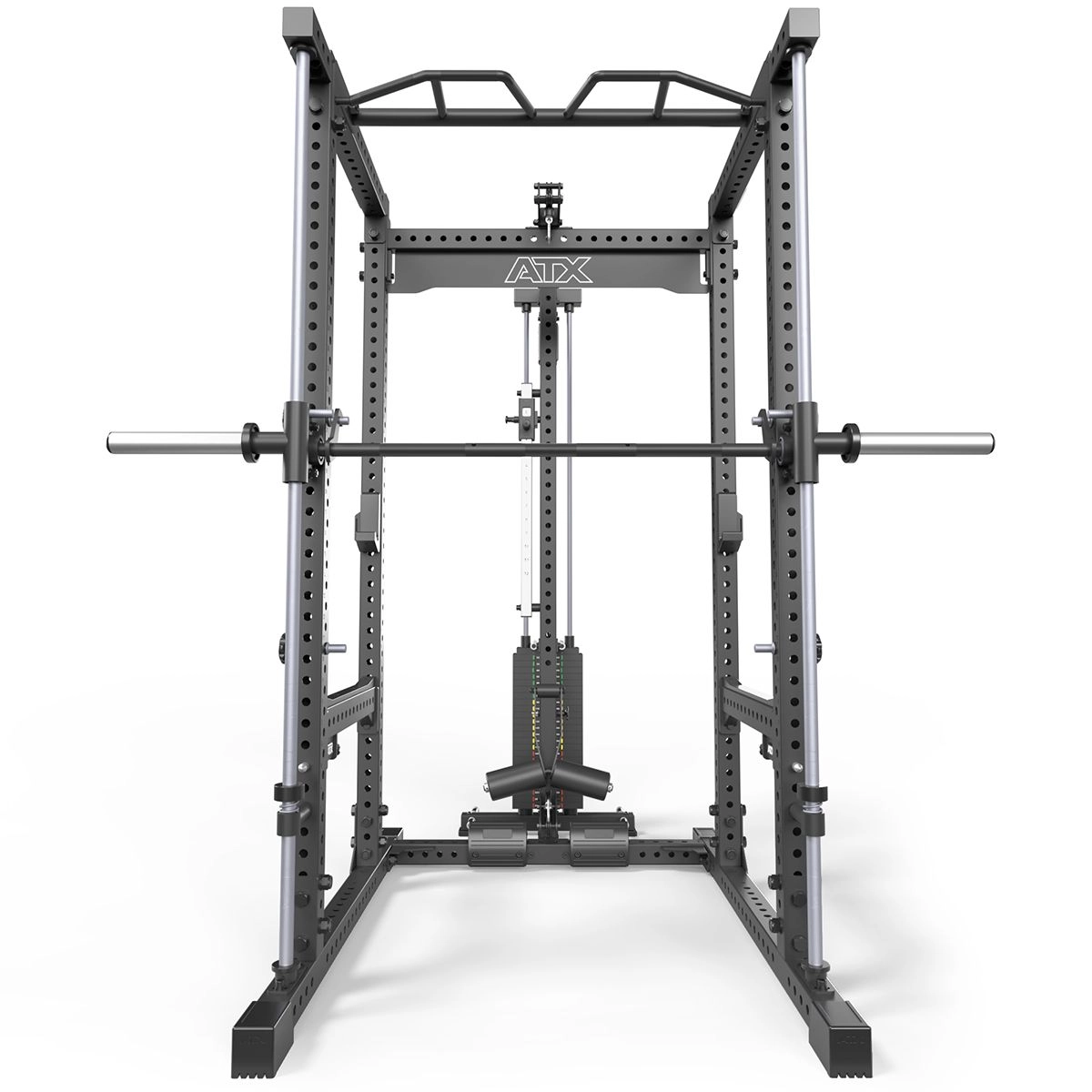

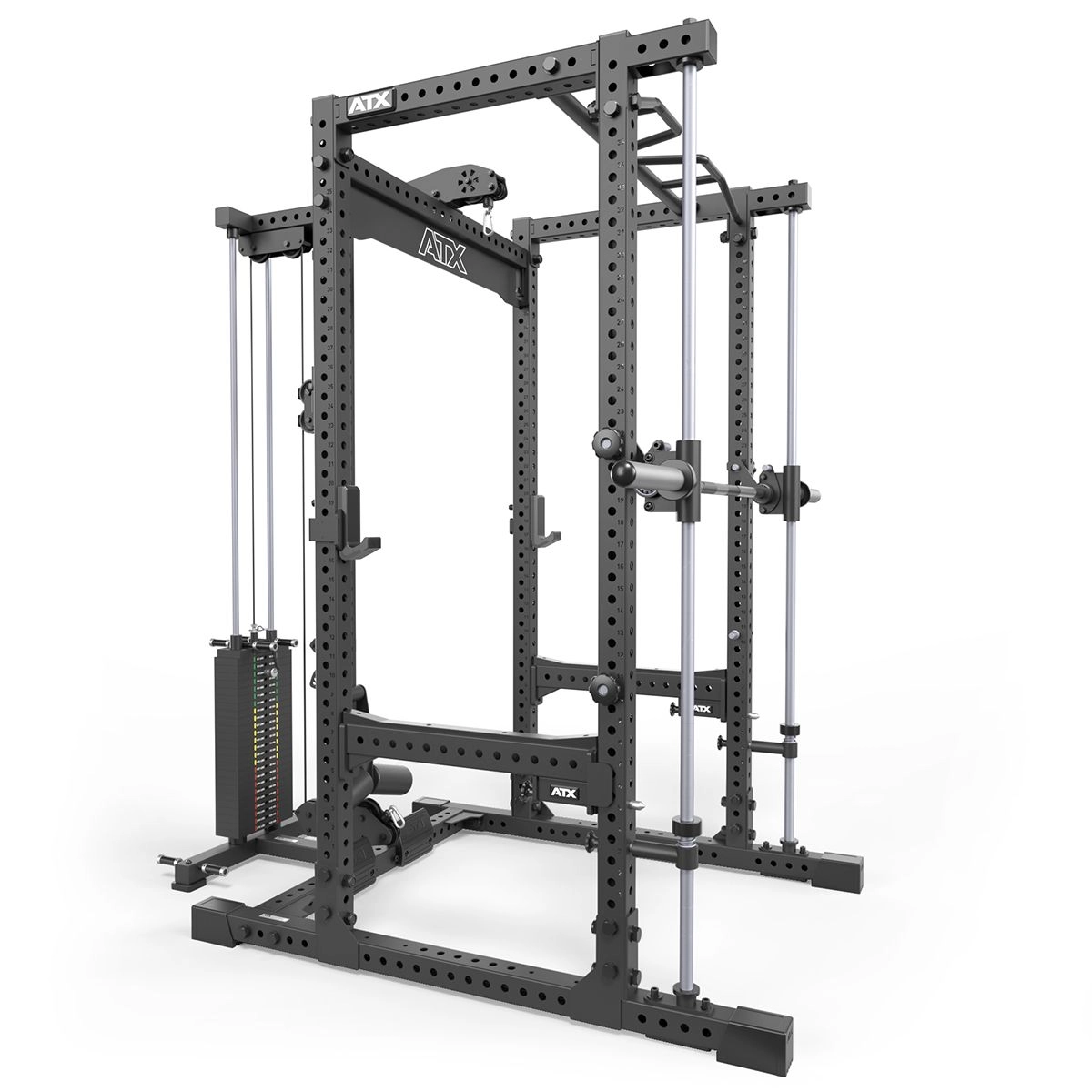

ATX Power Rack 780 2.0 with Lat Pulldown - 125kg Selectorized Weight Stack & Smith Machine
ATX POWER RACK COMPLETE STATION WITH 125 KG SELECTORIZED LAT PULLDOWN STATION + SMITH MACHINE - FOR THE HIGHEST DEMANDS AND HEAVIEST LOADS!
+ Power Rack PRX-780
+ incl. J-Hooks
+ incl. Heavy Weight Heavy-Duty Flip-Down Spotters

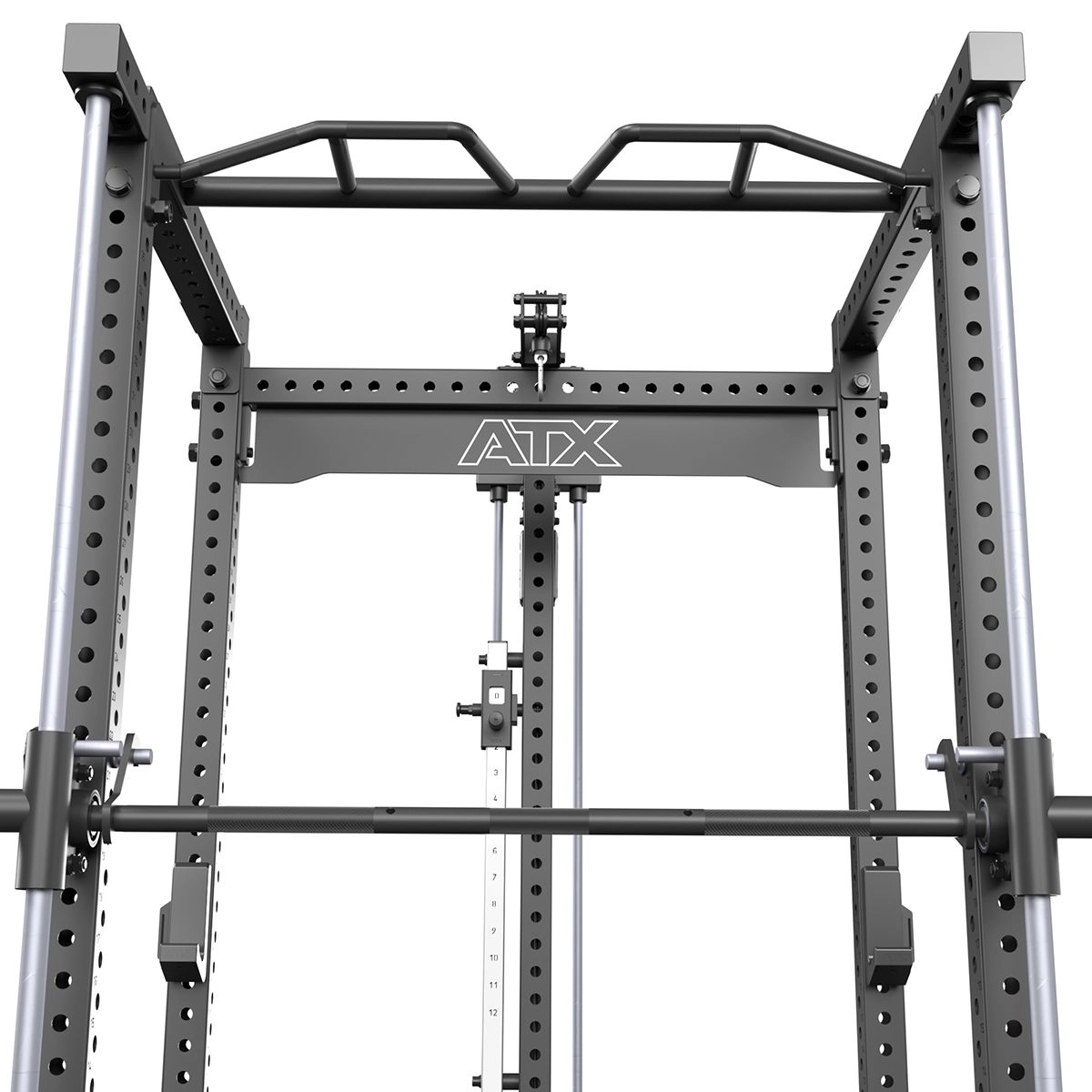

+ incl. Multi-grip pull-up bar
+ incl. Lat pulldown station – 125 kg selectorized weight stack
+ incl. Smith Machine – linear ball bearings
+ incl. 3D logo plate
Details:
- Construction from 70 x 70 x 3 mm profile steel tubing
- All-round system perforation for individual adjustment/attachment of hooks and accessories
- Hole spacing - bore Ø 21 mm, 35-fold, center distance 5 cm
- With double-sided laser scaling for quick reproducibility of adjustment heights

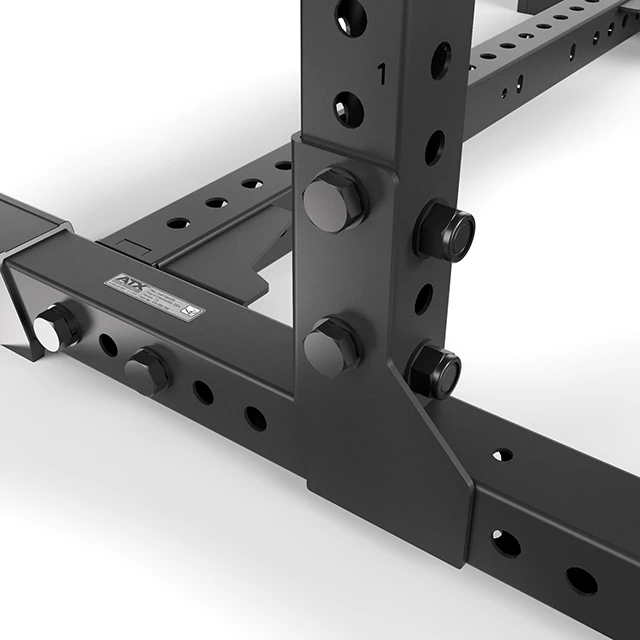

- With extra thick support and gusset plates
- With 20 mm strong locking and screw bolts
- Solid steel J-Hooks
+ with full protective coating

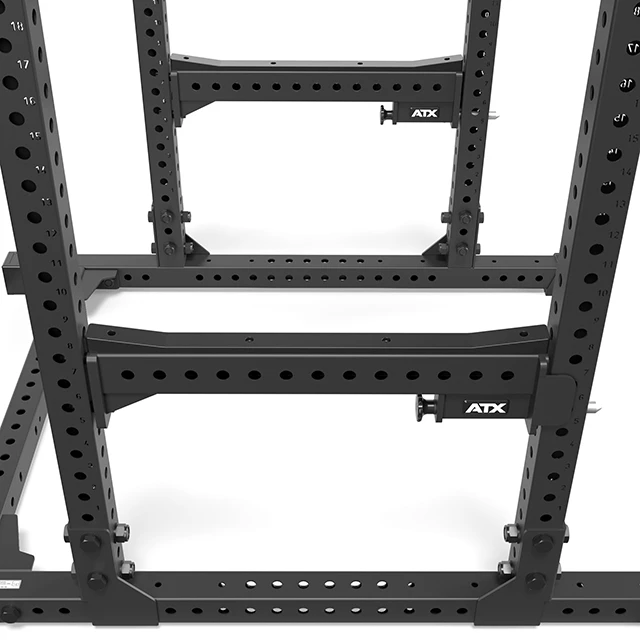

+ loadable up to 500 kg - Flip-Down Spotters/Heavy-duty safety trays
+ with double bolt security
+ loadable up to 600 kg
+ with thick protective pad - with multi-grip pull-up bar, non-slip knurled

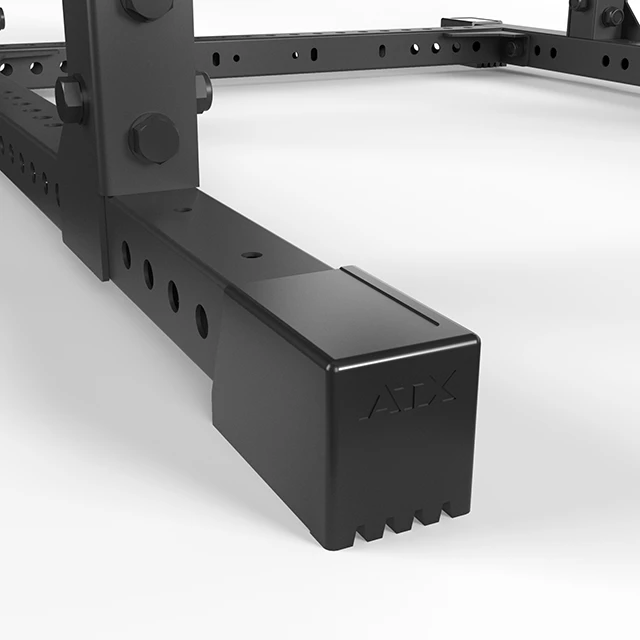

- with high-quality protective feet, floor-friendly and non-slip
- spacious cage with stable base frame
- reinforced steel logo plate with printed ATX logo
- free-standing and tip-proof, no need to bolt the equipment to the floor
- Studio certified

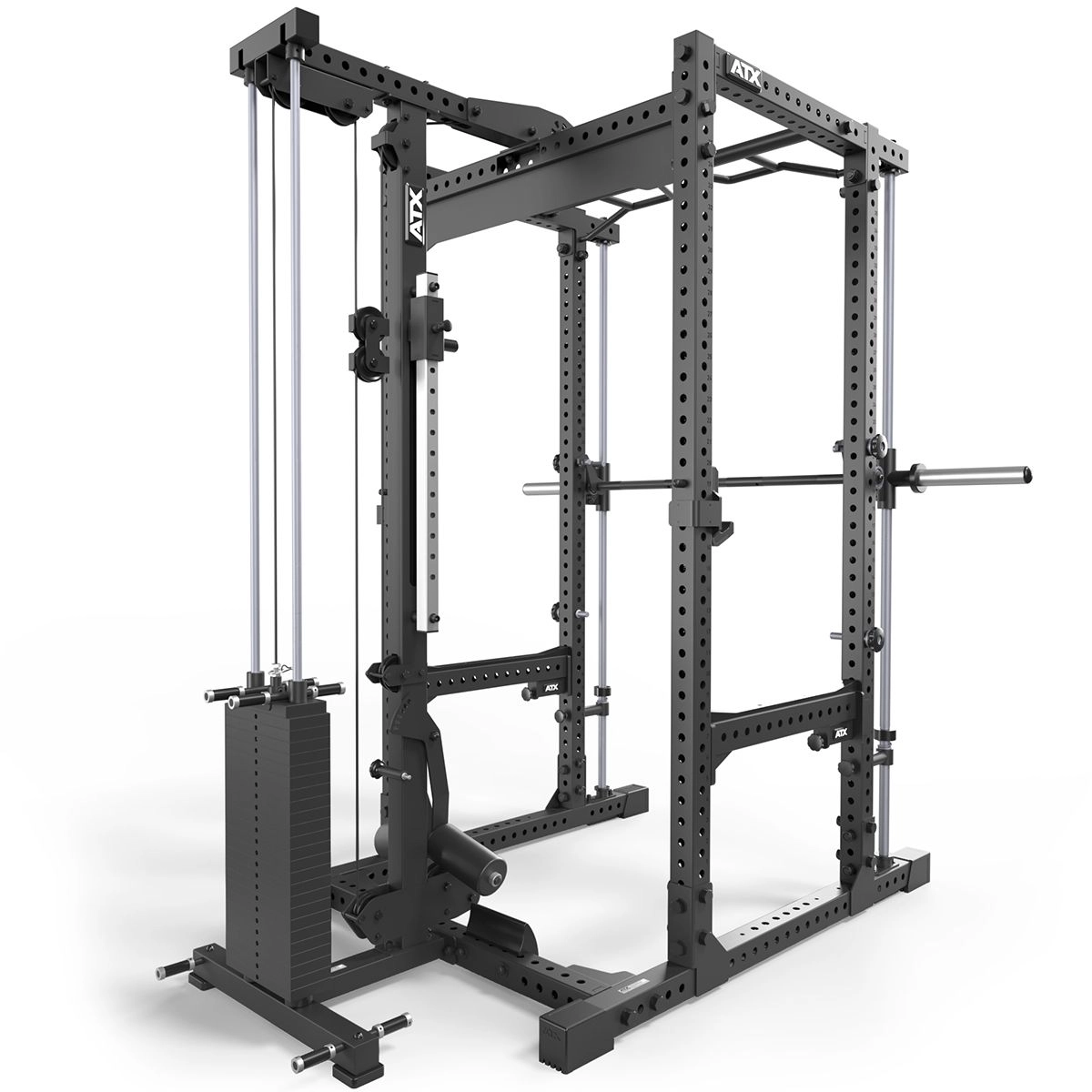

Lat Pulldown Station:
This professional lat pulldown attachment offers many sophisticated detailed solutions and thus ensures first-class running function and optimal handling! Highest quality workmanship in unmistakable ATX design with functional added value characterize this ATX lat pulldown station.

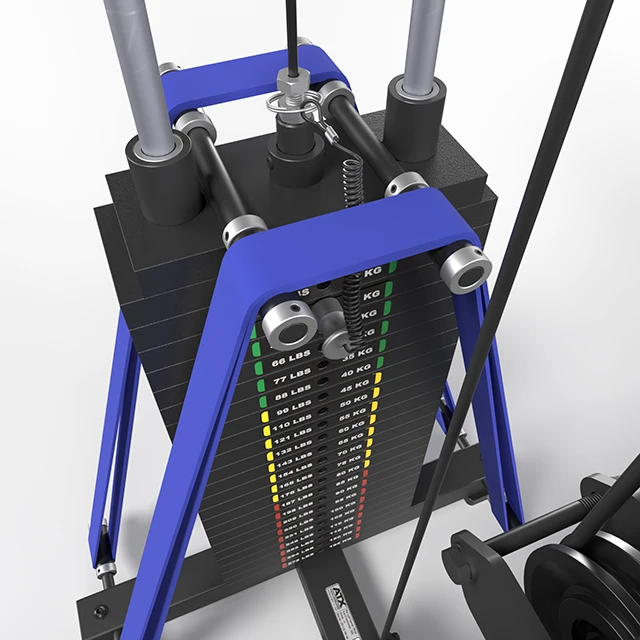

- 125 kg selectorized weight stack
- Graduation 5 kg (25 x 5 kg)
- Weight indication KG + LBS + color code marking
- silky smooth, jerk-free running properties
+ carriage with plain bearing guides
+ ball-bearing cable pulleys
+ stretch-free steel cable with protective coating
+ guide shafts made of solid steel - Weight ratio 1:1
- lower and upper pulling function

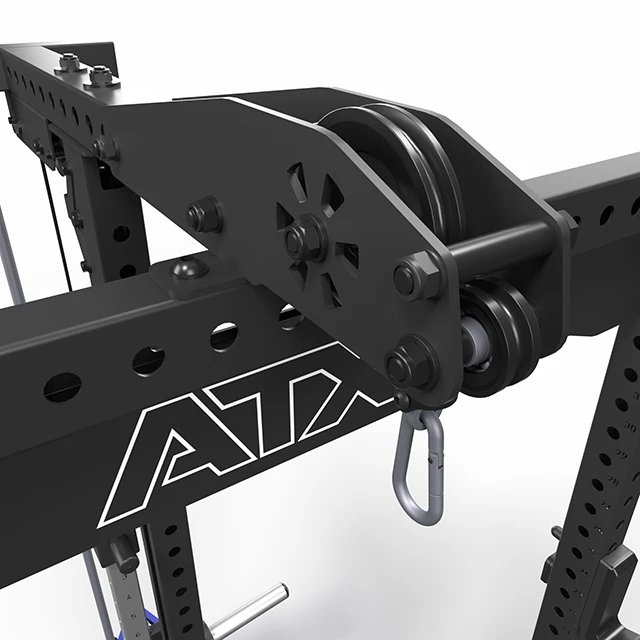

- Ball-bearing double-running cable pulleys at the lower and upper cable suspension ensure smooth gliding of the cable and thus minimize abrasion or damage to the pull cable
- extra high extension dimension - suitable for body heights up to 200 cm
- With innovative cable length adjustment - allows setting the optimal starting/grip height, optimal extension dimension and pulling stroke for all body heights from 155 cm to 200 cm

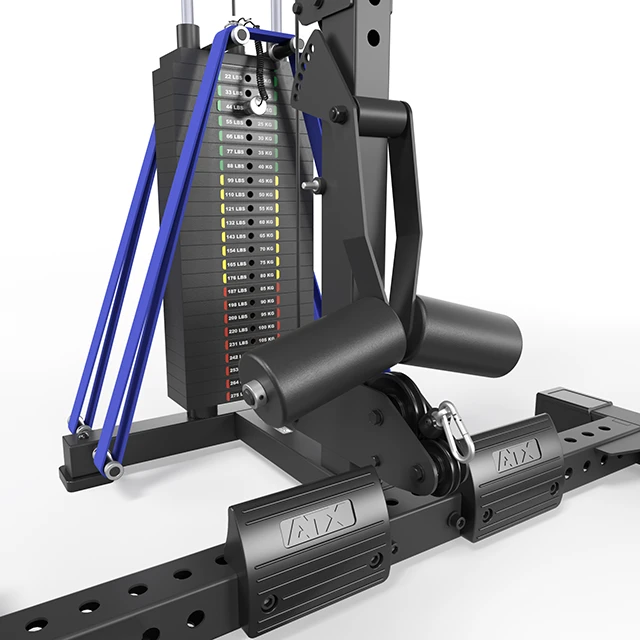

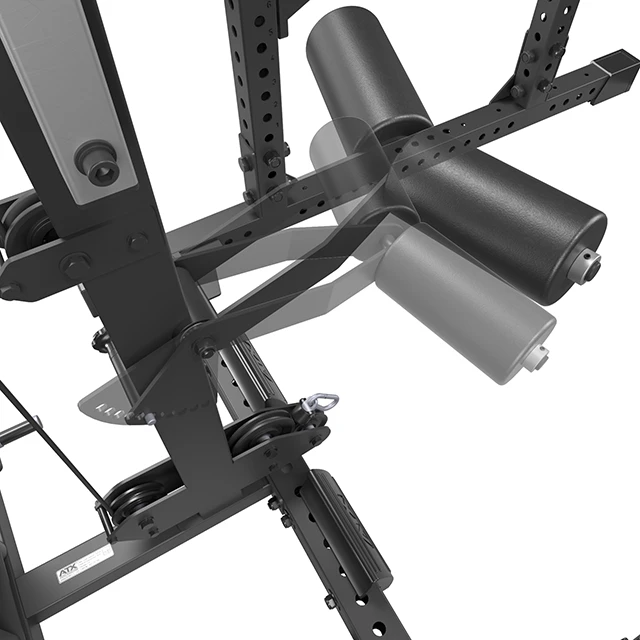

- individually height-adjustable and foldable leg support - for secure fixation during heavy pulling exercises from above
+ upholstery rollers made of high-quality urethane - hygienic and abrasion-resistant
+ quick and easy to adjust in height with spring detent pin - with large stable footrests with non-slip surface structure - for secure support during heavy rowing exercises
- Heavy-duty - up to 200 kg
- With Roller Band Pegs, for attaching resistance bands - for an additional increased dynamic load
- made of 70 x 70 x 3 mm square steel tubing with laser-cut hole pattern and 5 - 8 mm thick laser-cut shaped steel plates
- with rubberized feet - floor-friendly and non-slip
- professional pulling station in first-class workmanship with unmistakable ATX - DNA
- with studio approval - Certified EN 20957 I.II.IV - S (Studio)

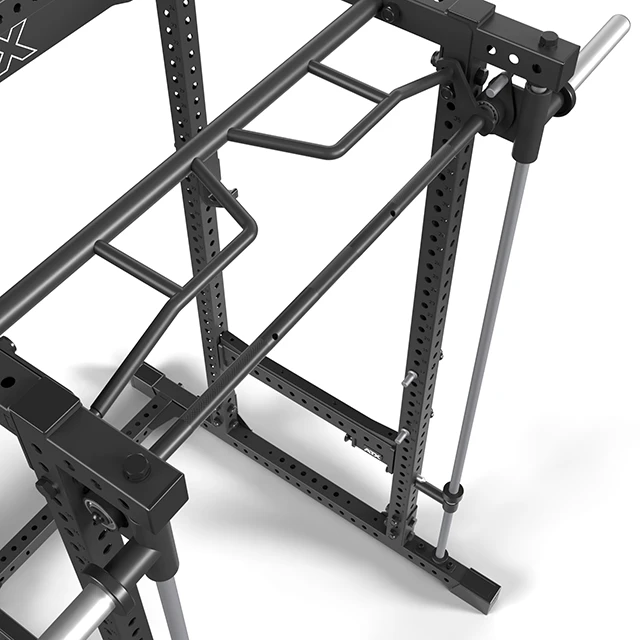

Smith Machine:

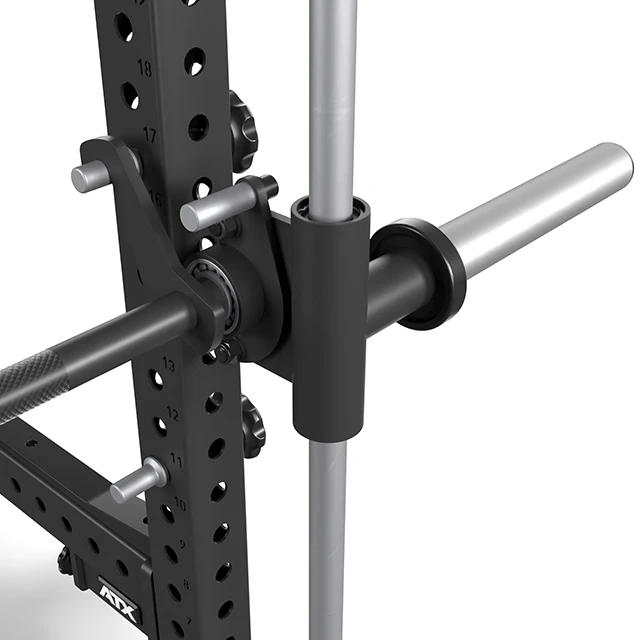

Excellent function and maximum load capacity are guaranteed by the ATX Smith Machine option. Thanks to high-quality components such as the hard-chromed solid steel shafts with a thickness of 30 mm and the 4-fold linear ball bearings, this Smith Machine option ensures first-class running characteristics.

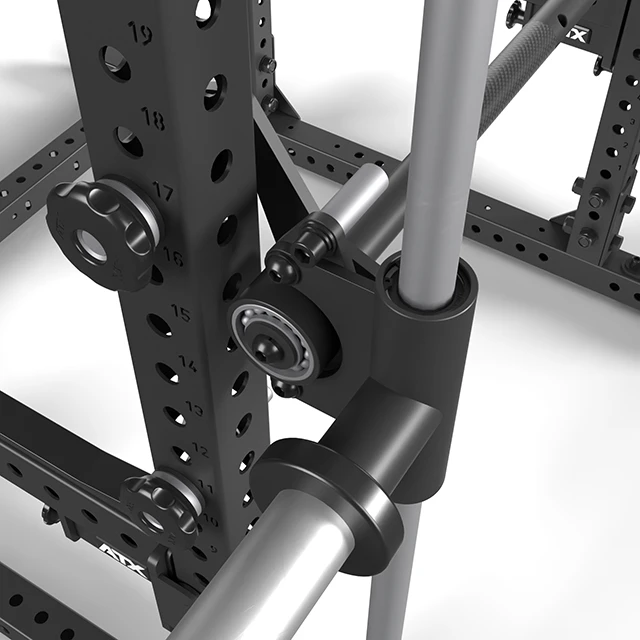

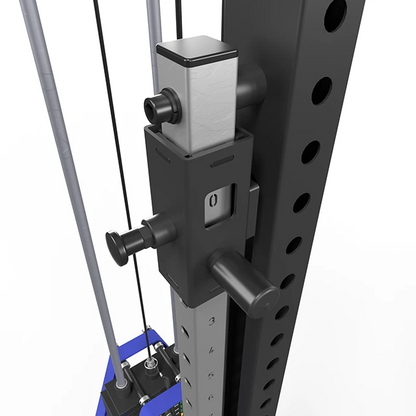

The 30 mm thick solid steel shafts ensure maximum rigidity and thus minimal deflection even with heavy weights. The bearing bushes, each with 2 high-quality linear bearings, ensure a smooth and jam-free movement. The 6 locking bolts can be quickly and easily screwed at individual heights, allowing for individual adjustment of the start/stop positions.
The safety spotters are individually adjustable and ensure maximum safety during training. The barbell (Ø 30 mm) is also made of solid steel and has a non-slip knurling and grip width markings. A Smith machine option made of the highest quality components, in a heavy-duty, solid design.
- 4-fold linear ball bearings
- minimal bending/twisting thanks to hard-chromed steel shafts Ø 30 mm
- jam-free, silky smooth running characteristics
- continuous long steel shafts from the base frame to the bottom edge of the rack ensure a maximum large range of motion
- heavy-duty - up to 200 kg
- Barbell made of solid steel Ø 30 mm, non-slip knurled and marked, black chrome-plated

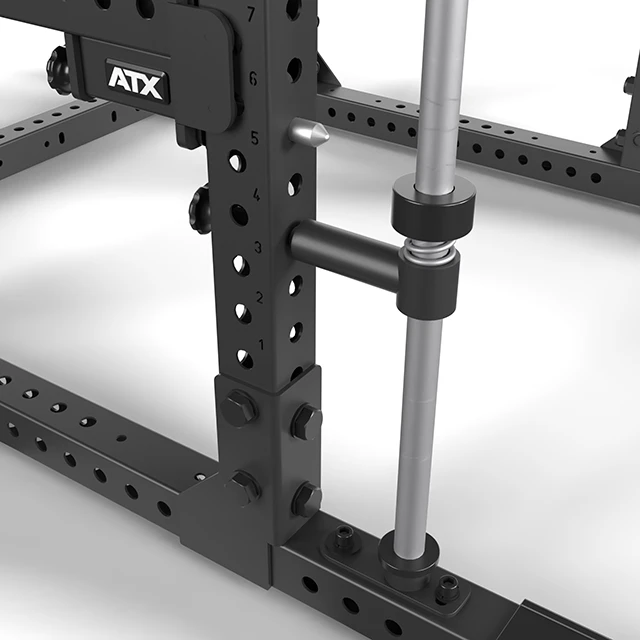

- with 6 locking/storage bolts made of solid steel Ø 20 mm,
- quick and easy height adjustment
- with individually adjustable safety locks with spring cushioning
- Weight plate holders Ø 50 mm
- Guide shafts + weight plate holders in hard chrome plating
- Length of plate holders 300 mm
- Barbell in black chrome - non-slip knurled, with grip width marking
- Barbell weight: 20 kg
- Studio certified

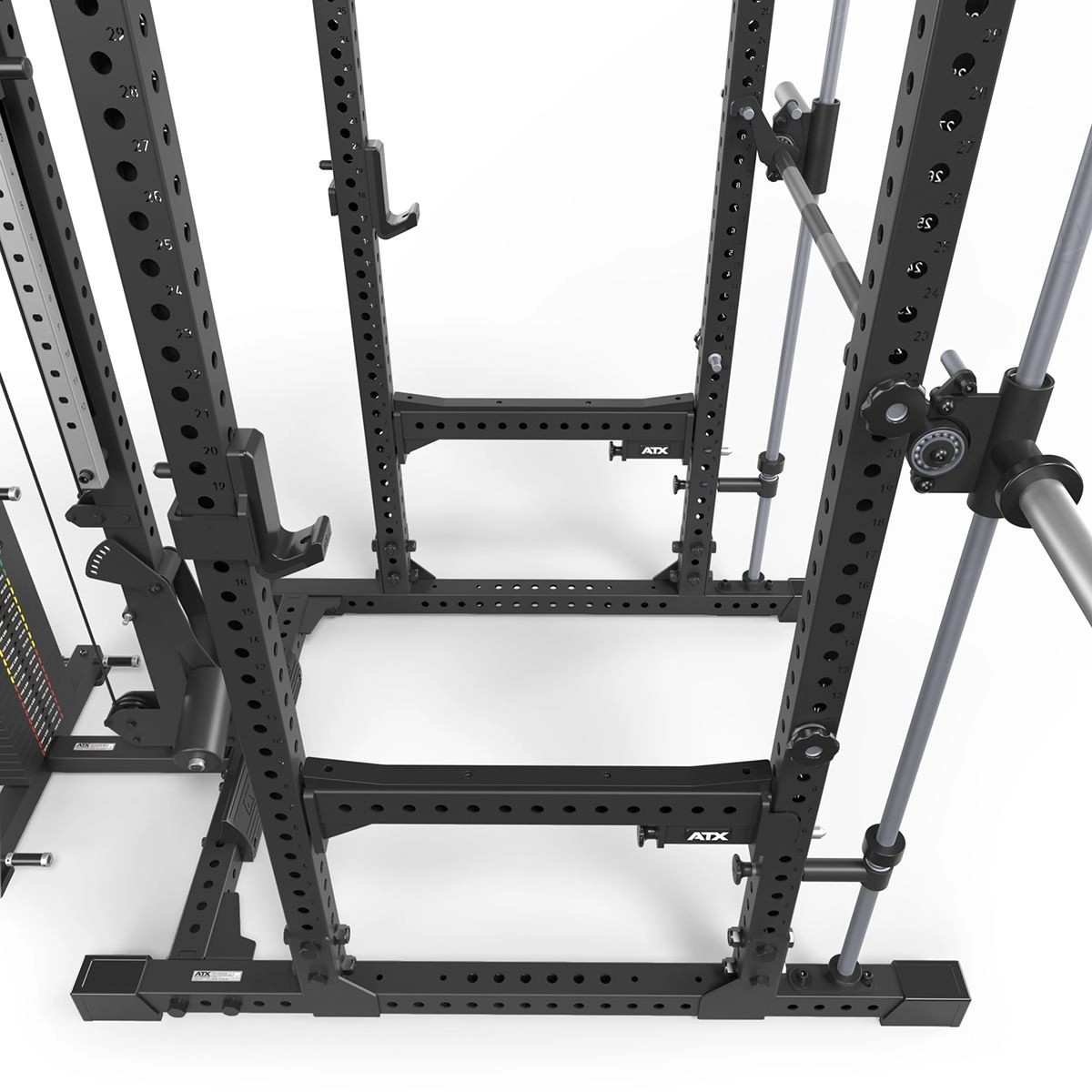

The thick-walled steel construction made of 70 x 70 x 3 mm profile steel tubes with extra reinforced gusset plates and 20 mm thick screw bolts guarantees heaviest loads and maximum durability. Everything is absolutely torsion-resistant and designed to be warp-proof. The spacious cage offers plenty of freedom of movement, and the dimensions according to international standards ensure safe and professional handling.

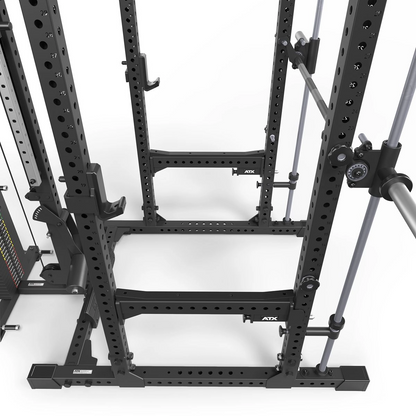

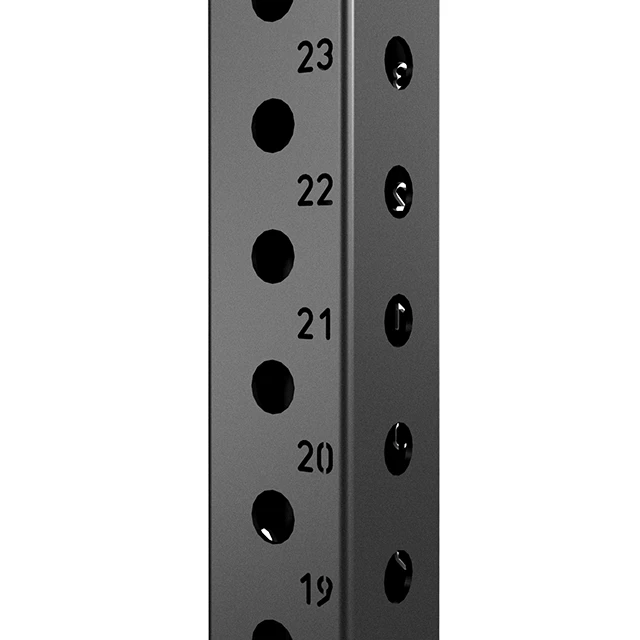

The entire frame is equipped with system holes on all sides with a fine grid of 50 mm, allowing for the individual attachment of hooks, spotters, accessories, or other system components. The laser-etched numbering on both sides enables quick identification and reproduction of the desired adjustment heights.

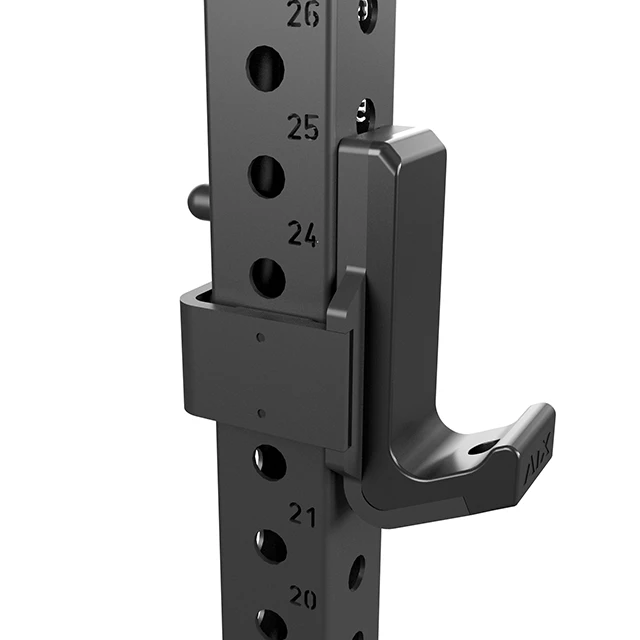

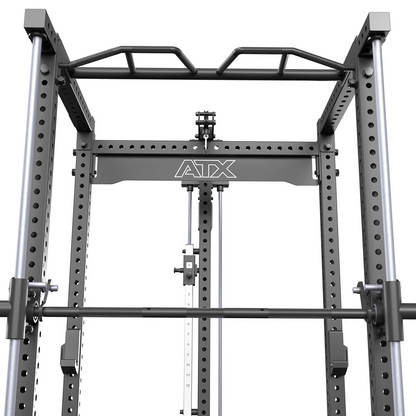

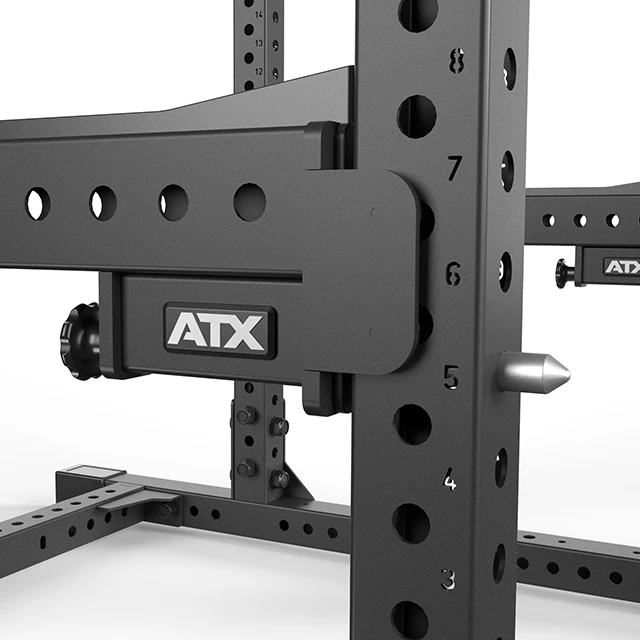

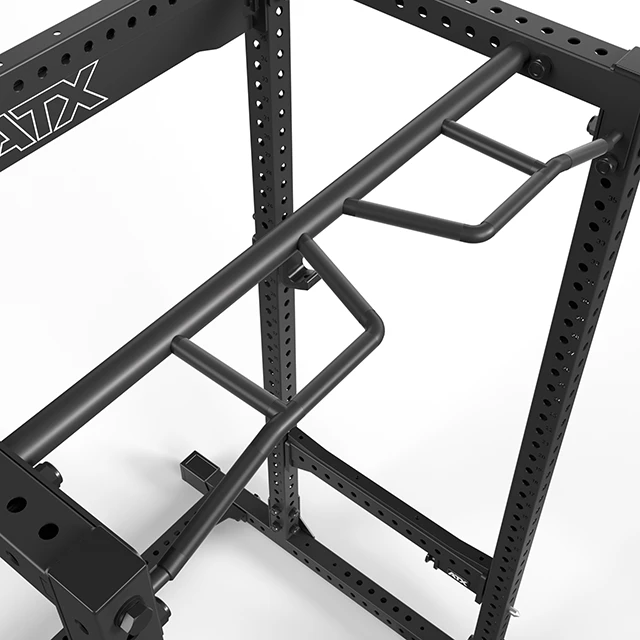

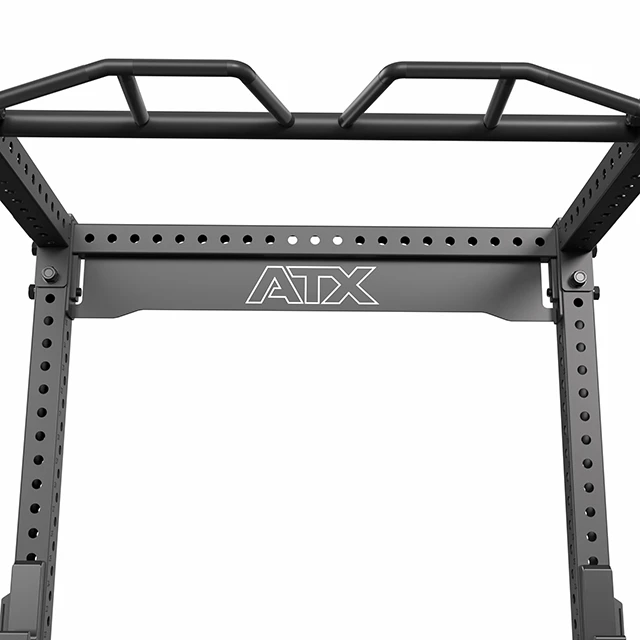

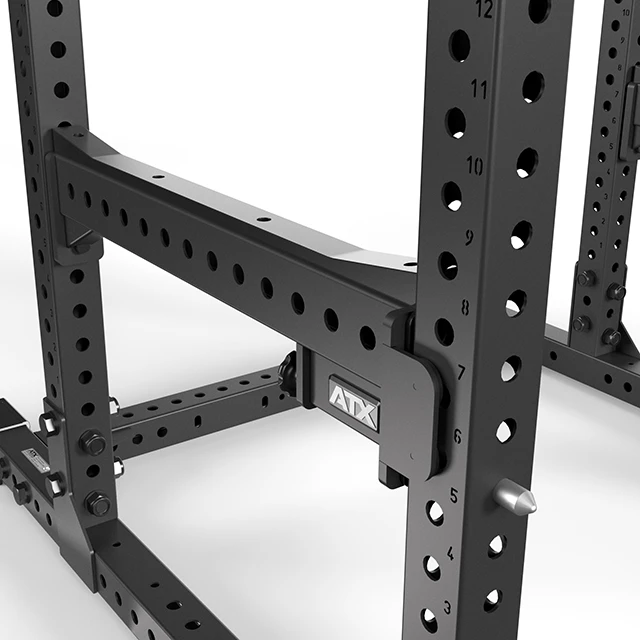

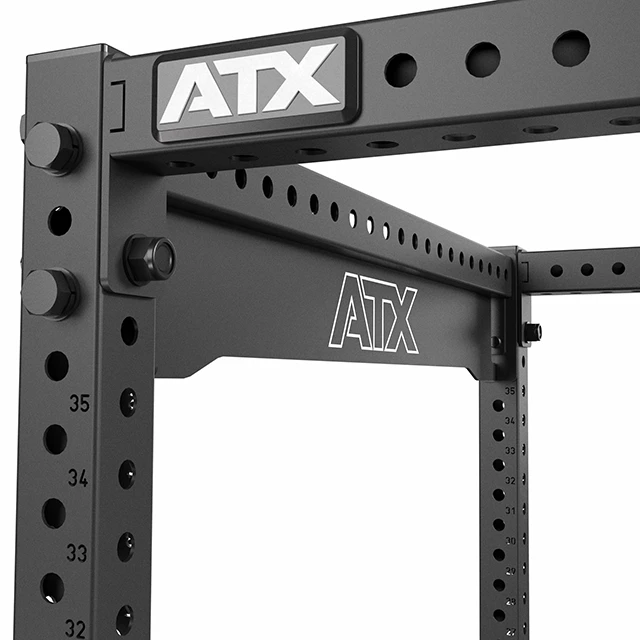

The J-Hooks are made of 10 mm thick solid steel. The heavy-duty safety spotters have double locking bolts and are therefore extremely resilient. The hooks and safety spotters are equipped with thick protective coverings on the inside and outside, which protect the equipment and the barbell from abrasion and damage and significantly minimize noise development. The pull-up bar has a non-slip knurling and allows all relevant grip positions. The logo plate with the printed ATX logo has an extra deep spread and is completely made of steel, which guarantees maximum force absorption and maximum stiffness of the frame.
A rack system with first-class workmanship and intricate detailed solutions - Studio certified!
Scope of delivery:
1 x ATX Power Rack 780 2.0 complete system with lat pulldown station 125 kg selectorized weight stack + Smith Machine
incl. J-Hooks
incl. Heavy Weight Heavy-Duty Flip-Down Spotters
incl. Multi-grip pull-up bar
incl. Lat pulldown station – 125 kg selectorized weight stack
incl. Smith Machine – weight plate holder Ø 50 mm
incl. 3D logo plate
Note:
Delivery disassembled, incl. assembly instructions - easy assembly.
Illustrated accessories such as barbells, weight plates, collars, weight plate holders etc. are not included in the scope of delivery.
Technical data:
| Item No. | ATX-PRX-780-KPS-400 |
|---|---|
| Brand | ATX |
| Series | 700 |
| Width | 1220 / 2080 mm |
| Depth | 2115 mm |
| Height | 2276 mm |
| Profile steel tubing / Frame | 70 x 70 x 3 mm |
| Hole spacing | 4-sided, bore Ø 21 mm, 35-fold, center distance 5 cm |
| Scaling | laser-etched numbers |
| Cage width x depth | 1080 x 730 mm |
| Barbell rack width | 1220 mm |
| Load capacity |
J-Hooks - 500 kg / pair |
| Color | black silk matt fine structure powder-coated |
| Certification | EN 20957 I.II.IV - S (Studio) |
