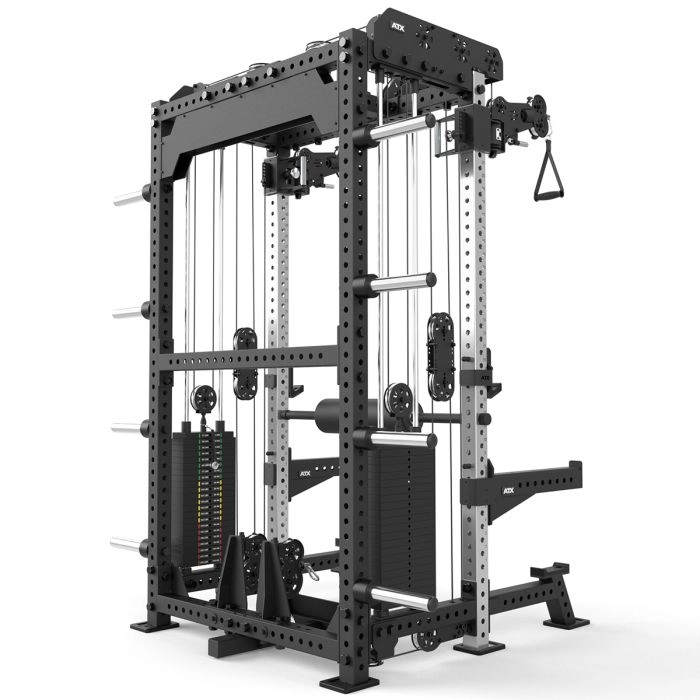

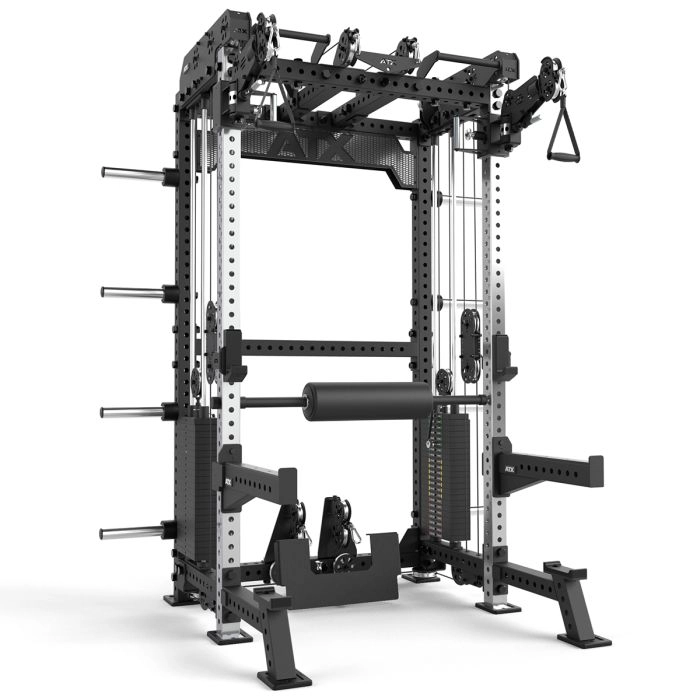

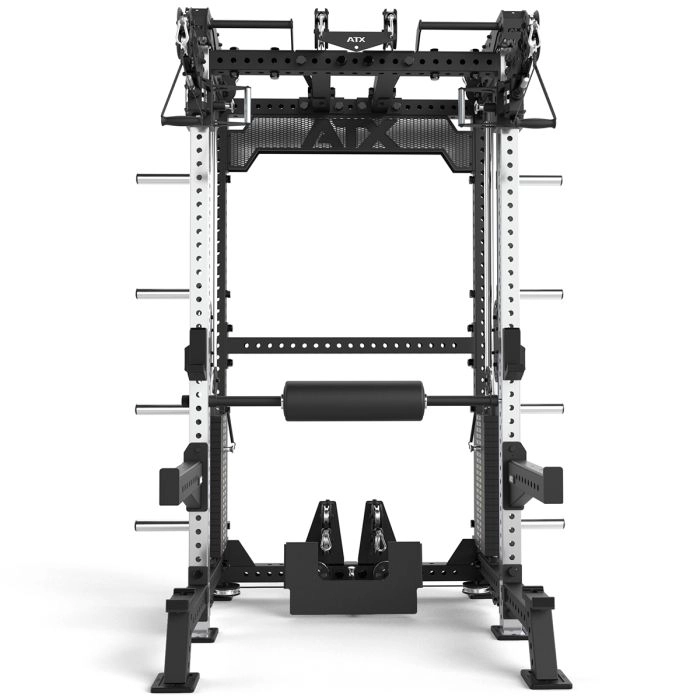

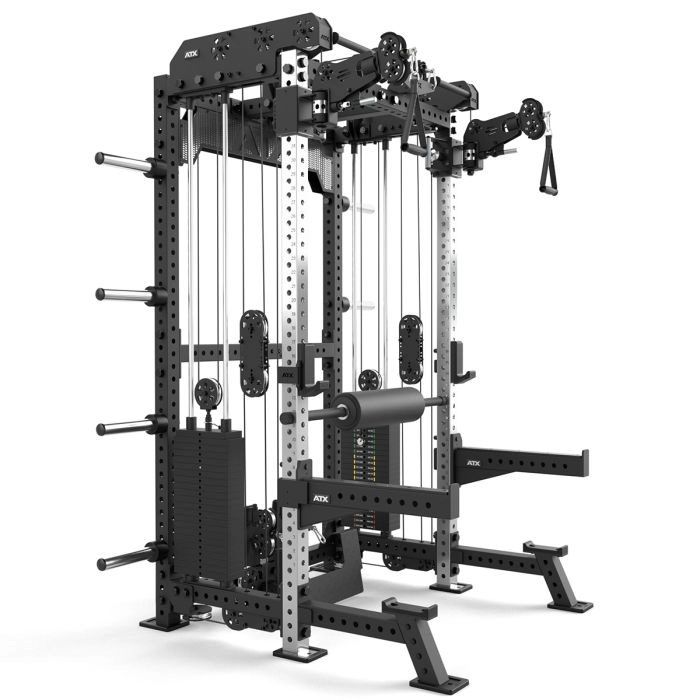

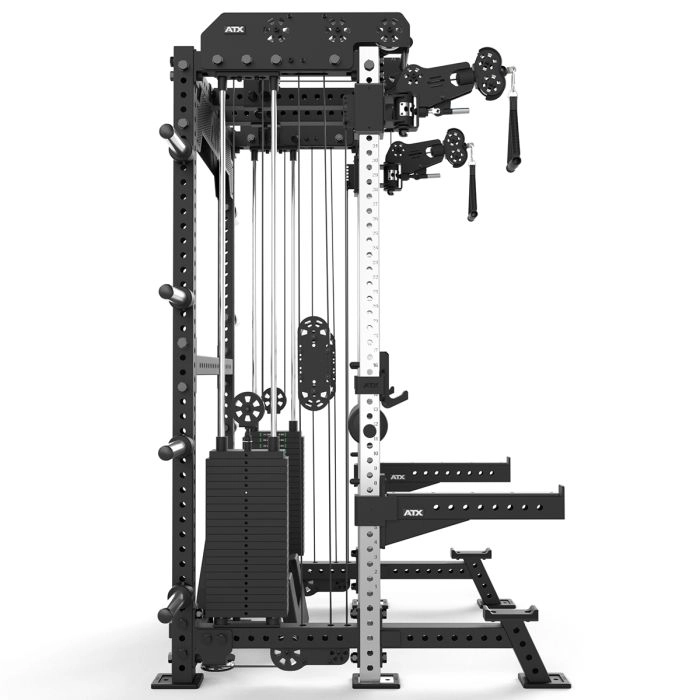

ATX Multi Pull Rack 2.0 with 2 x 110 kg Stack Weights
The ATX Multi-Pull Rack MPHR-740 - 2.0 is significantly more than just a half rack with an integrated pull station - it's a strength training station that leaves nothing to be desired and meets the highest demands!

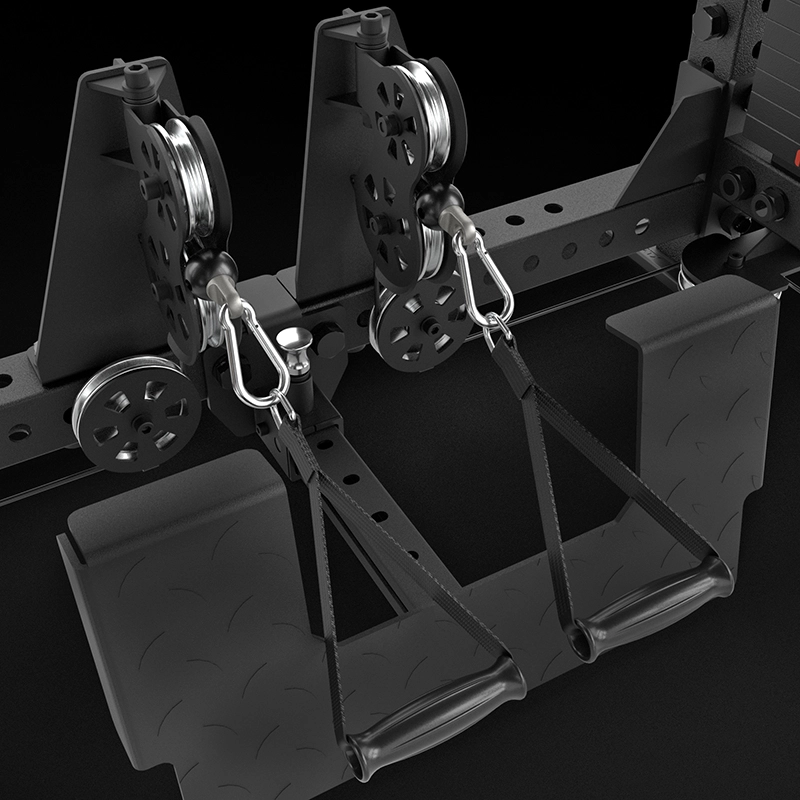

6 pulling points and swivel roller arms allow for multifunctional pulling variations. All 6 pulling points are connected to the 2 x 110 kg stack weights with a 2:1 ratio. The two centrally placed guide rollers can be used alternately and synchronously via the included pulling connector. This allows for a variety of one-arm, alternating, or synchronous pulling variations. Through coupling, heavy pulling exercises such as lat pulldowns or seated rows can be performed professionally. The included leg support and telescopic footrest ensure secure fixation. The ATX XT-ARMS/swivel roller arms attached to the front upright tubes are adjustable in height and width, allowing for narrow and extra-wide pulling variations (Cable-Cross-Over).
Furthermore, this station enables practically all relevant barbell exercises with the included J-Hooks, Safety Spotter-Arms, and the front deadlift platform. The integrated pull-up bar completes the extensive exercise options of this first-class strength training station.
The massive, stable construction is absolutely torsion-free, highly resilient, and of first-class workmanship. Its functionality is outstanding, and adjustments and handling are simple and intuitive.

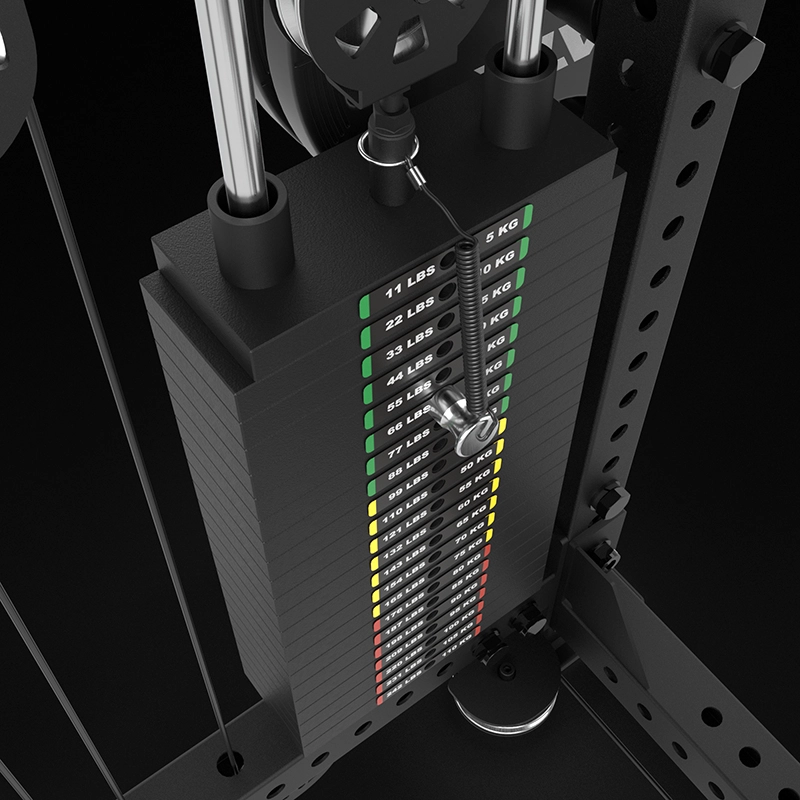

With 2 x 110kg stack weights:
- First-class running properties

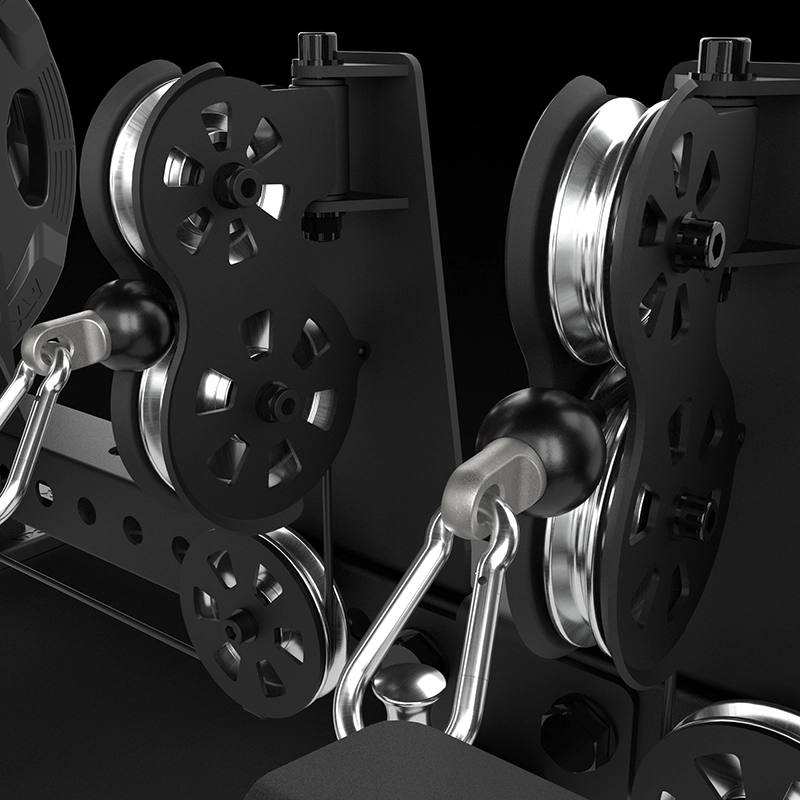

- Ball-bearing aluminum cable pulleys
- Weight increments of 22 x 5 kg each
- 2:1 ratio
- Non-stretching steel cable with protective sheathing
- Six different pulling starting points,
- 2 x 2 alternating pulling points at the top and bottom + 2 x side ATX® XT-Arms/outrigger arms

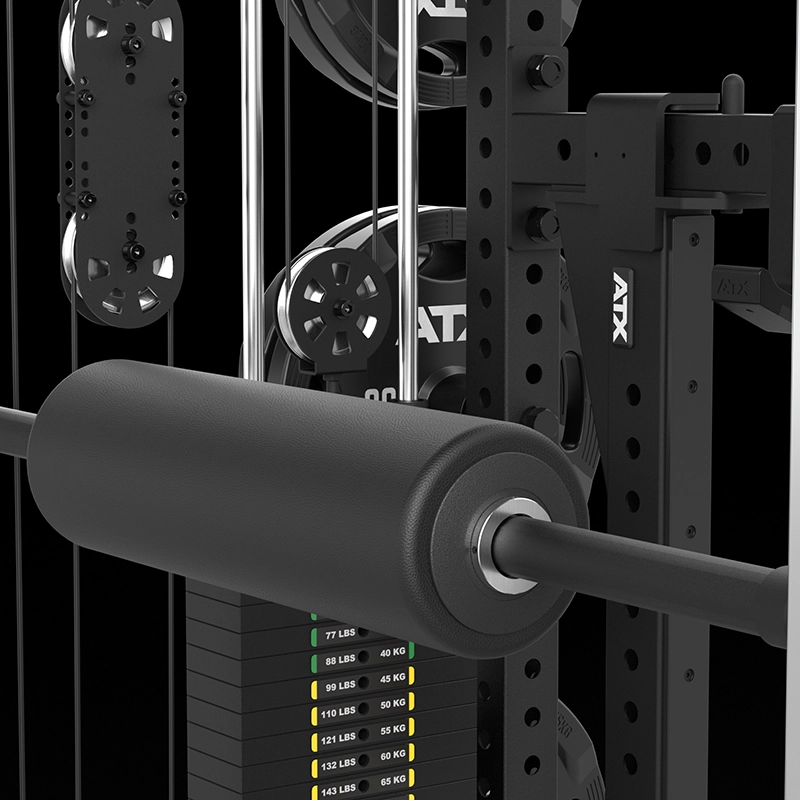

- Incl. leg support pad - removable, easily and quickly height-adjustable for secure fixation during lat pulldowns
- Incl. telescopic footrest - for secure fixation and maximum range-of-motion during seated rows
- Incl. weight plate storage - 8 chrome-plated 50 mm weight plate holders
- Incl. 2 single handles + snap hooks
Heavy-duty stable construction:
- Powerful design
- Absolutely stable and torsion-free construction
- Made from 70 x 70 x 3 mm square steel tubing
- Heavy-duty - over 1,000 kg frame load capacity
- Front tubes made of stainless steel with all-round system perforations and laser-cut numbering
- High dead weight - 525 kg, extremely stable - device does not need to be bolted to the floor
- With rubberized feet - floor-friendly and non-slip
- Abrasion-resistant powder coating

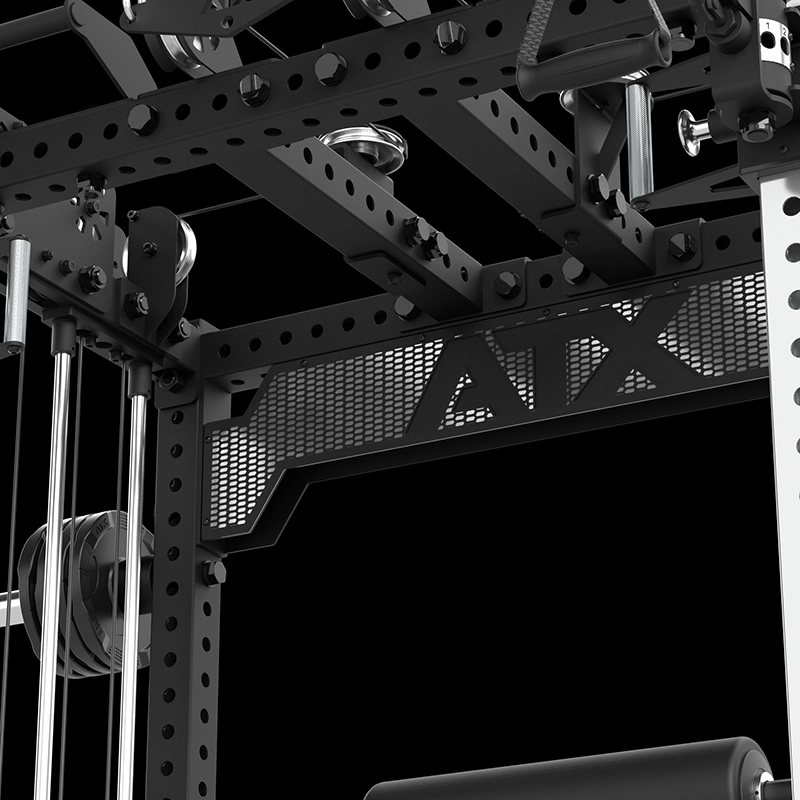

- ATX Logo Plate in honeycomb design with stainless steel back panel
- With studio approval
Functional and thoughtfully designed down to the last detail:
- With all-round system perforations in a fine 50 mm hole pattern for attaching - further options and accessories
- Front tubes made of high-quality stainless steel
- With laser-cut numbering for exact and quick reproduction of the adjustment heights of J-Hooks, roller arms and spotters

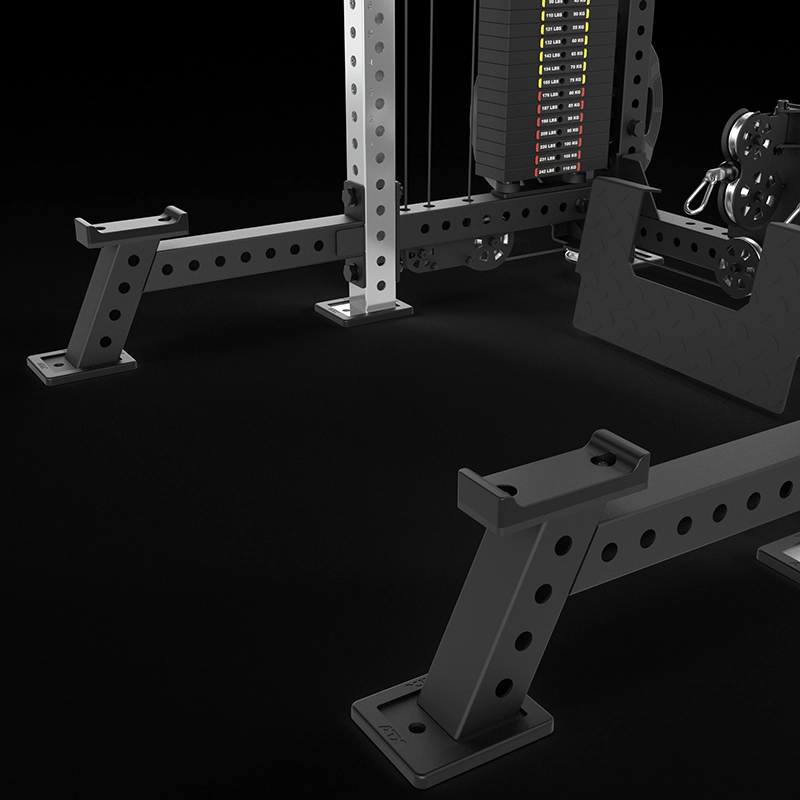

- With additional deadlift front platform with barbell protection pad

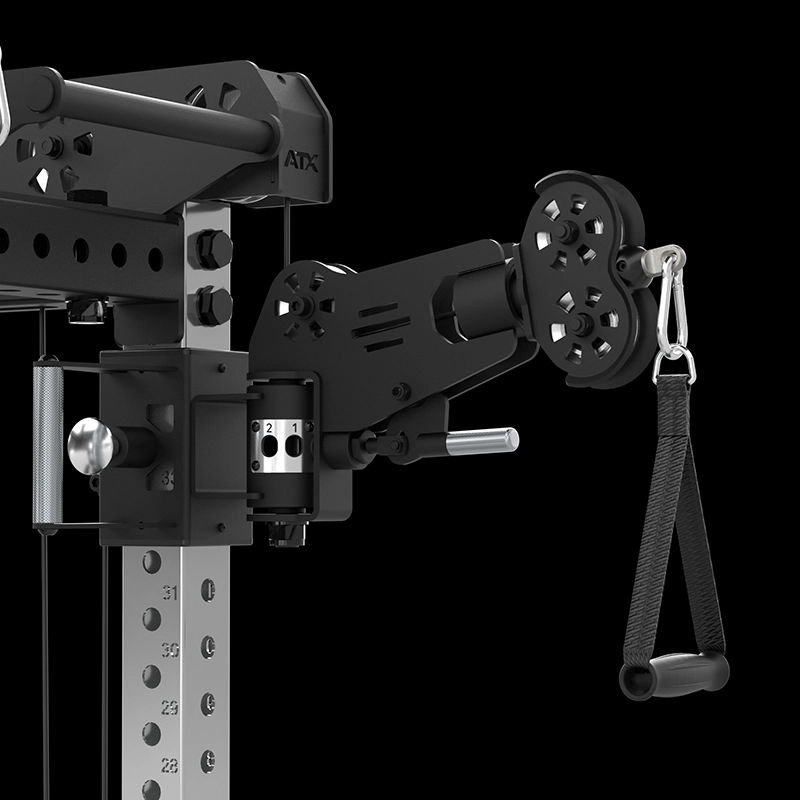

+ optimal loading height for internationally standardized weight plates - With swiveling roller outrigger arms
+ Individually adjustable in height and pulling width
+ With adjustment scale in stainless steel
+ Swivel range 170°
+ Allow narrow and extra-wide pulling adjustments (Cable-Cross-Over)

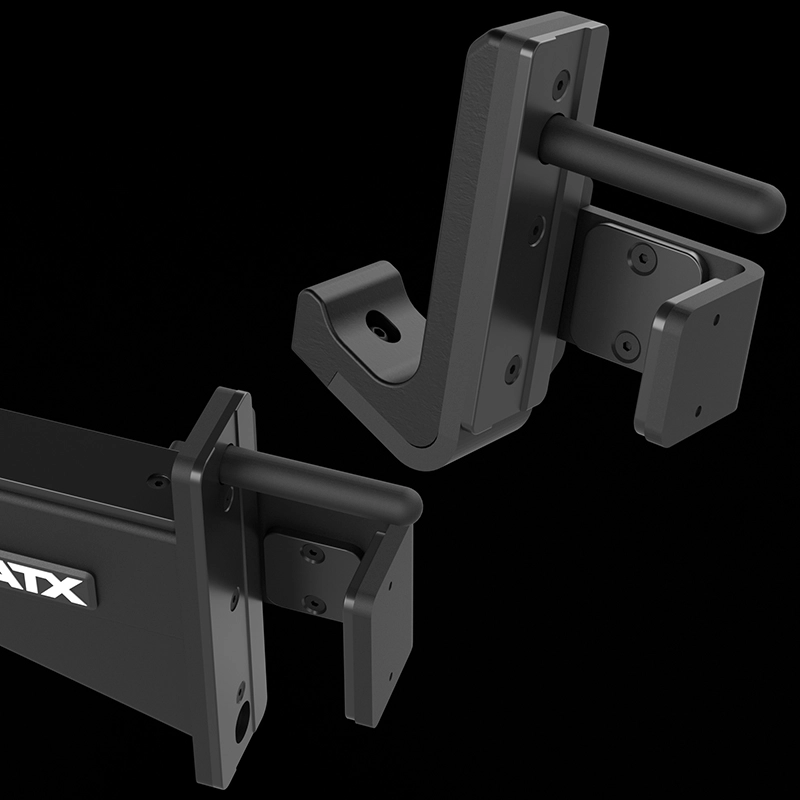

Incl. J-Hooks
- Made from 10 mm thick flat steel
- With thick all-round protection / rubber protectors - to protect the barbell bar and minimize noise
- With internal plastic protectors - to protect the frame / paintwork
- Heavy-duty - up to 500 kg

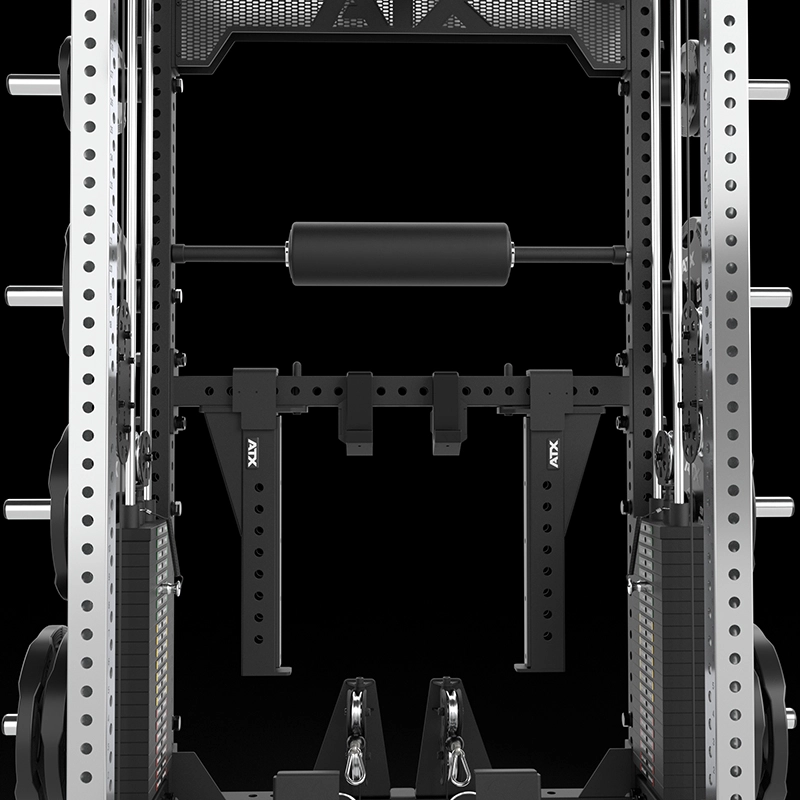

Incl. Spotter-Arms/Safety Spotters
- With long projection - 625 mm
- With thick protective padding - to protect the barbell bar and minimize noise
- Super sturdy U-bracket made from 8 mm thick flat steel
- U-bracket with internal plastic protectors - to protect the frame / paintwork
- Heavy-duty - up to 400 kg
Scope of delivery:
1 x ATX Multi Pull Half Rack 2.0
incl. 2 single handles and snap hooks
Note:
Delivered disassembled, incl. assembly instructions - easy assembly.
Delivery after prior telephone notification.

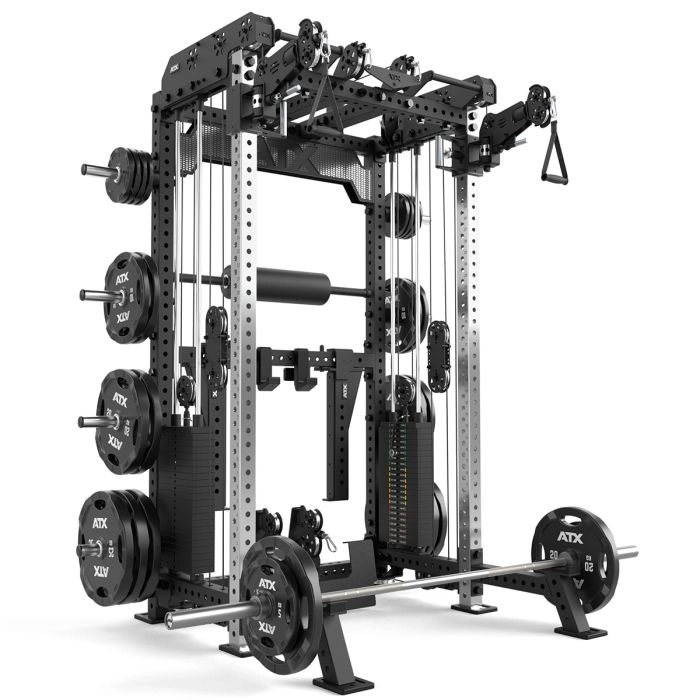

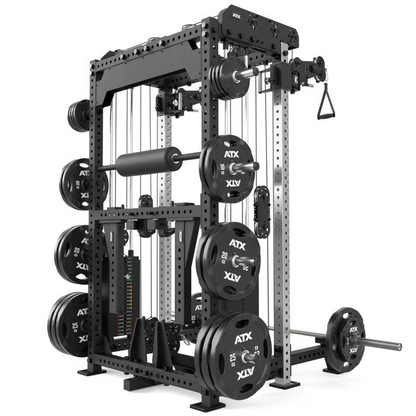

Accessories shown such as barbell, weight plates, weight plate storage, collars etc. are not included in the scope of delivery.
Technical data:
| Item No. | ATX-MPHR-740 |
|---|---|
| Brand | ATX |
| Series | 700 |
| Width |
128 cm |
| Depth |
135 cm |
| Height |
225 cm |
| Weight |
525 kg |
| Profile steel tube / Frame |
70 x 70 x 3 mm |
| Hole pattern |
Drilling Ø 21 mm, 34x center distance 5 cm |
| Scaling |
laser-cut numbers |
| Barbell rack width |
122 cm |
| Load capacity |
1,000 kg frame load |
| Color |
Black fine structure powder-coated |
| Certification | EN 20957 I.II.IV - S (Studio) |
Do you have any questions? Contact us by phone at 04641-3007 or by email: Info@DankSport.de
All information is without guarantee and to the best of our knowledge and belief!
Errors, changes and prior sale reserved.
