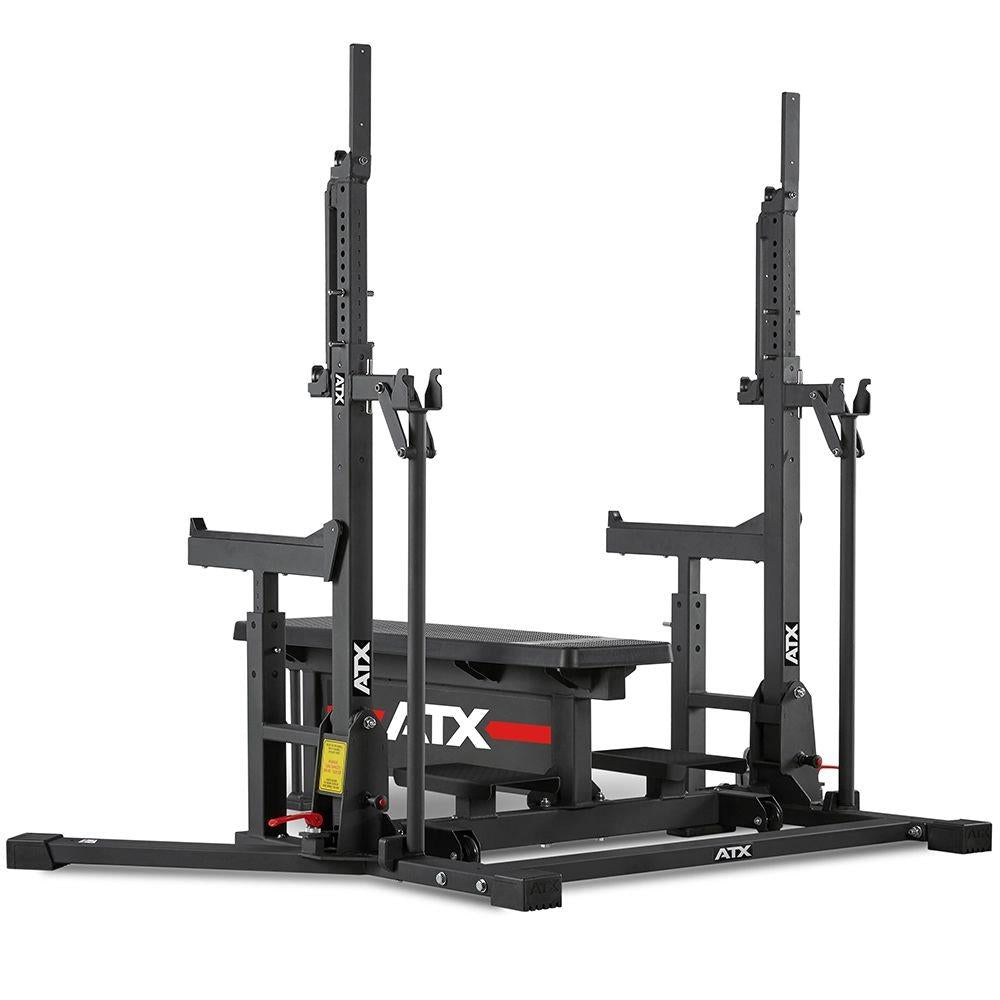

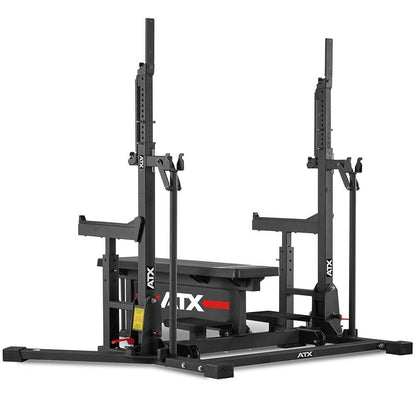

The ATX Competition Combo Rack
is a 2-in-1 competition weight bench that was specially designed and manufactured for professional squats and bench presses.

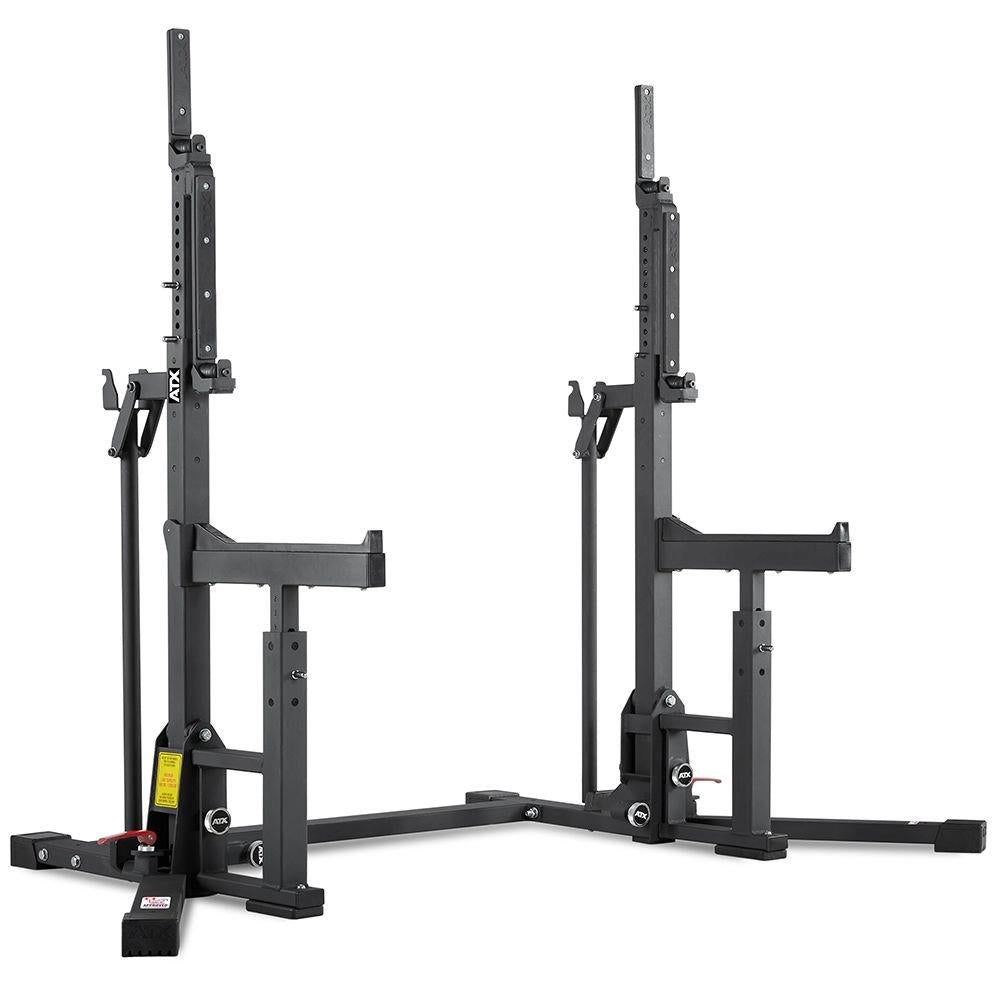

The extremely robust and stable construction impresses with a weight of 238 KG for the complete rack with bench, and 124 KG for the squat rack only without emergency shelves.
The rack is built from profile steel tubes with dimensions of 8x8cm, 7x7cm and 5x5cm, with wall thicknesses of 3mm and 4mm.
The rack can be quickly and easily adjusted to virtually any body size. It can be disassembled for transport in just a few simple steps.
- Certified according to EN 20957 I.II.IV Class S -
- Quality Products Designed in Germany -
Telescopic dumbbell racks:
The core of the rack is the two telescopic dumbbell racks, which are adjustable in height and inclination.
Each of the racks has two J-hooks, the lower one is usually used for bench presses and the upper one for squats.
The J-hooks incorporate pivoting cylindrical rollers to facilitate centering of the barbell. These are made of PA material and equipped with needle bearings. The rollers are replaceable if necessary.
The rollers in the upper J-hooks have a centering groove, the rollers in the lower J-hooks are completely cylindrical.
Height of the J-hooks for bench press is 755mm to 1330mm.

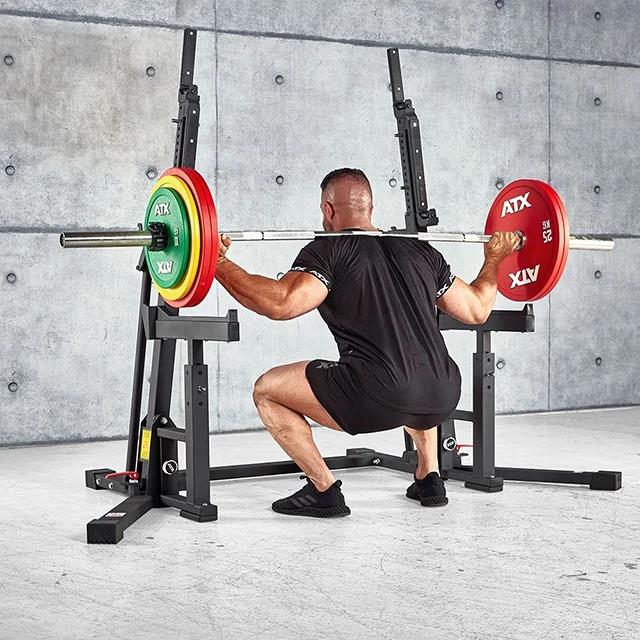

The height of the J-hooks for squats is 1175mm to 1750mm, reaching the bottom edge of the barbell.
Furthermore, the J-hooks are equipped with impact protection to protect the knurling of the barbells.
The telescopic adjustment is equipped with PA gliders for easier adjustment and to protect the material.
The width between the telescopic shelves is 110cm.

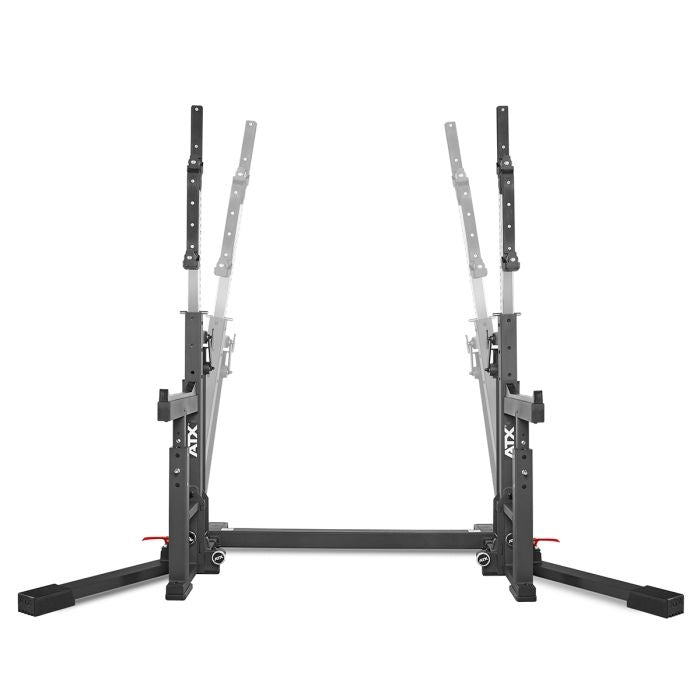

The telescopic dumbbell racks can be set up straight or tilted inwards by 6.5° to allow the athlete to hold the dumbbell with a wide grip.
Lever arm lifting system:

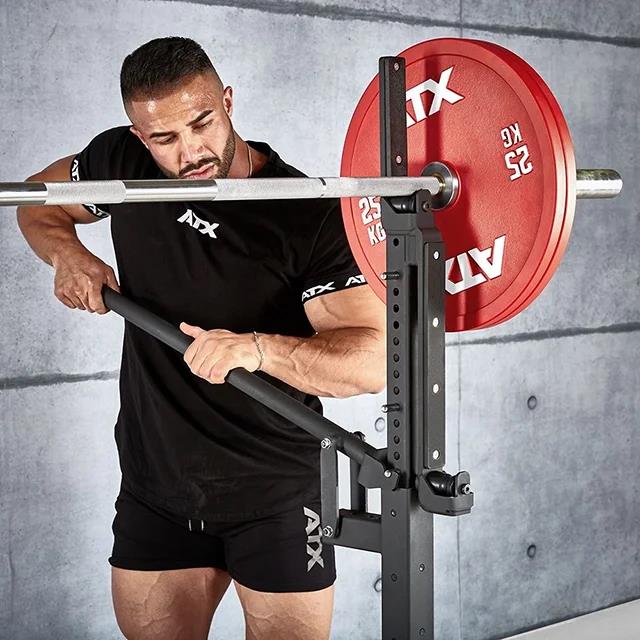

The height is adjusted via a lever-arm lifting system. This lever-arm lifting system allows the barbell racks to be adjusted without unloading the barbells or even removing them from the rack entirely.
The adjustment grid is 2.5cm and can be easily reproduced using the laser-cut scales.
The delivery includes 8 locking and lifting pins (4 of which are spare). The locking pins are automatically secured against falling out when the dumbbell racks are stored.
The bolt required for lifting can be stored directly on the lever arm.

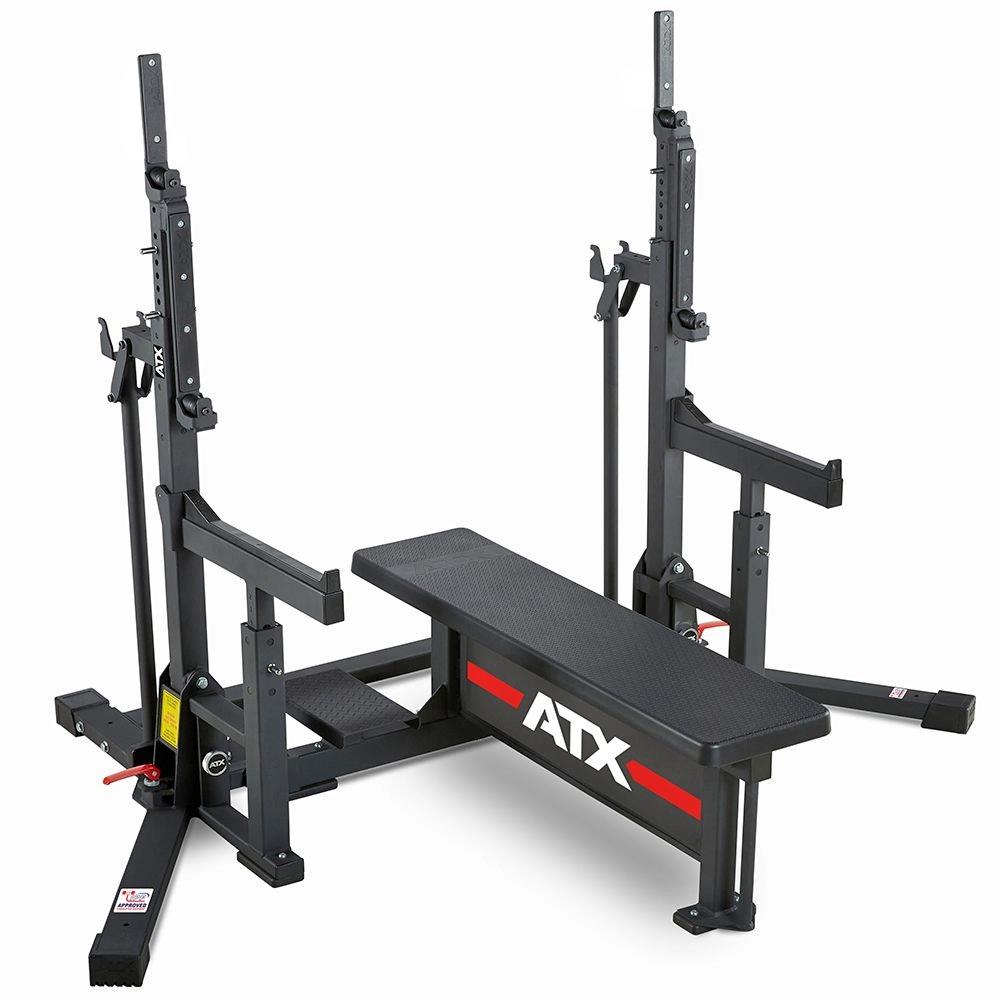

Bench and platform:

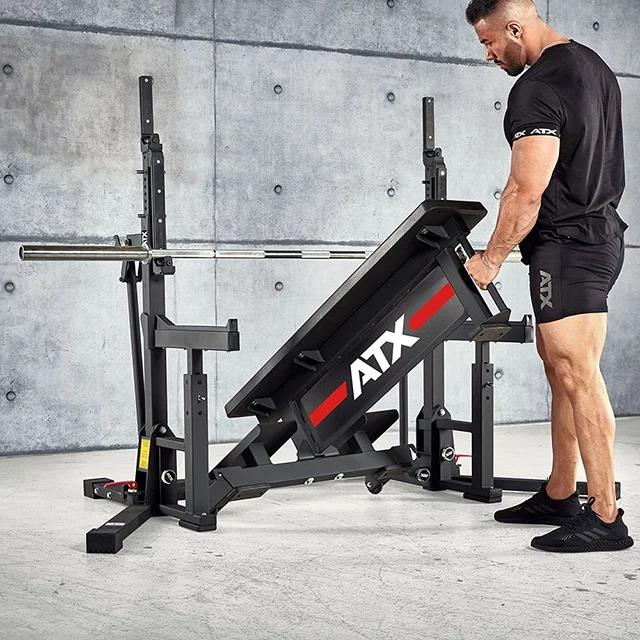

The bench and platform are autonomous components that can be connected and disconnected from the rack within a minute to switch between squats and bench presses.
To loosen and fasten, only two clamping knobs are required, which are provided with a robust coarse thread and only need to be loosened slightly to separate the parts.

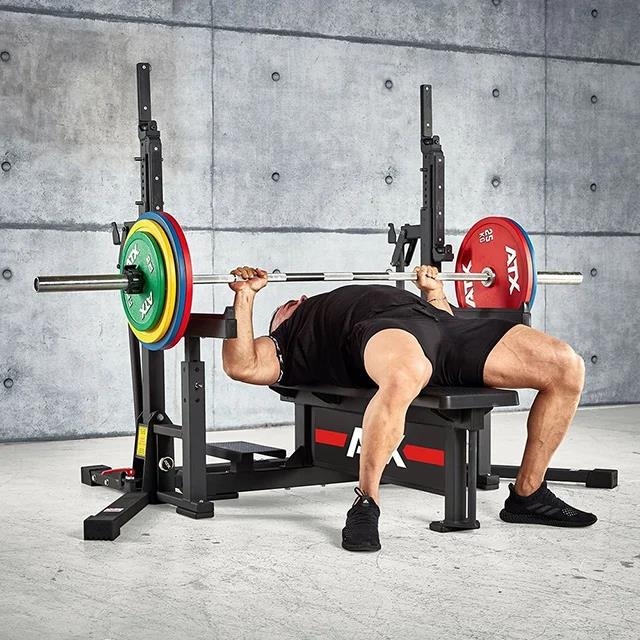

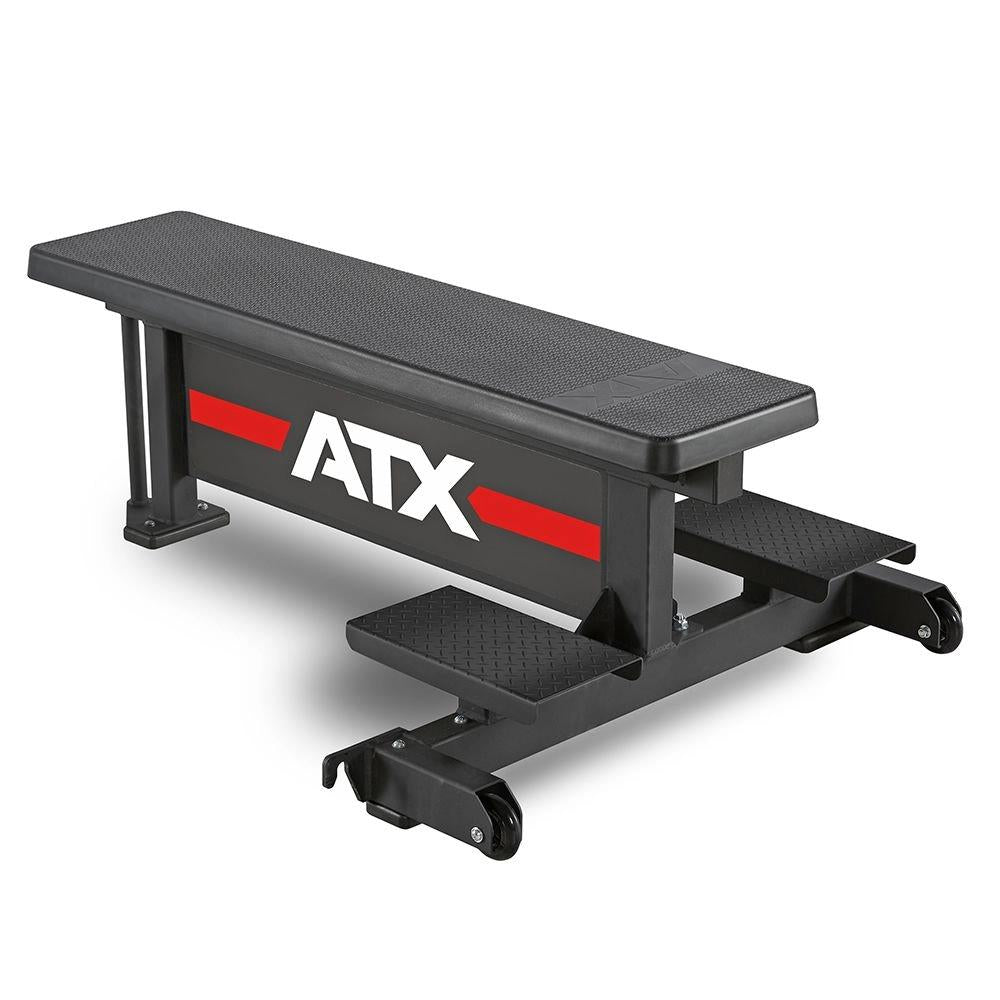

The bench has a lying surface of 122cm long and 30cm wide, and a height from the floor of 45cm.
The artificial leather is a special version with an extremely grippy and non-slip surface.
The platforms each have a length of 75cm and a width of 25cm with a height of 18cm from the floor.
The size of the platforms allows the helper optimal positioning and, in combination with the perforated surface, ensures a secure footing.
Emergency shelves:

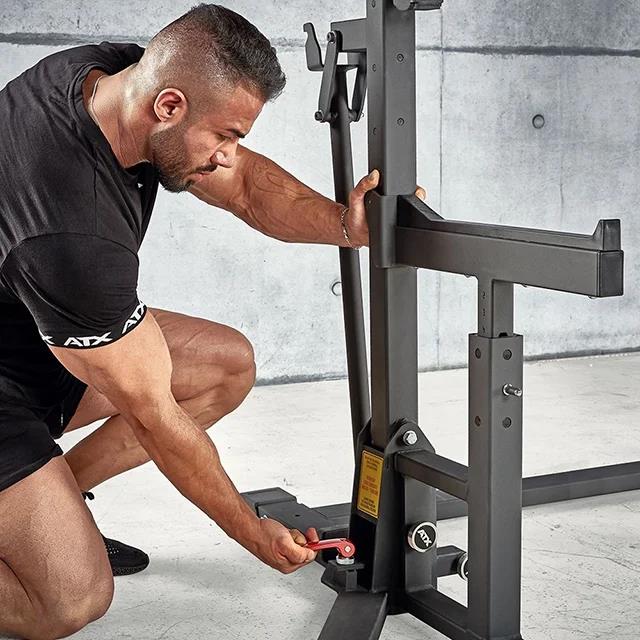

The emergency shelves can be attached or detached from the rack with just one clamping knob. The plug-in connection ensures a completely secure and firm connection.
The emergency racks are equipped with barbell protectors with integrated "face saver" and a barrier towards the posts to prevent the barbell from dangerously slipping through.
The emergency shelves are a full 66cm long, measured from the post. The distance between the emergency shelves is 114cm.
The lowest height is 61.5cm and the maximum height is 89cm from the floor to the top edge of the shelf.
The adjustment grid is 2.5cm and has a laser-cut scale for easier reproduction of the setting heights.
The telescopic adjustment is equipped with PA gliders for easier adjustment and to protect the material.
Dimensions and weights:
Construction depth: 178 cm
Width: 230 cm
Height: 142.5 cm - 200 cm
Weight: 238 KG
Rack load capacity: 750 KG
Scope of delivery:
ATX Combo Rack
Article no.: ATX-CO-RACK
The dumbbells, weight plates, resistance bands and band bolts shown are optional extras and are not included in the scope of delivery!
Delivery is disassembled for self-assembly - shipping on pallet by freight forwarder
Delivery subject to prior telephone notification by the shipping company.
